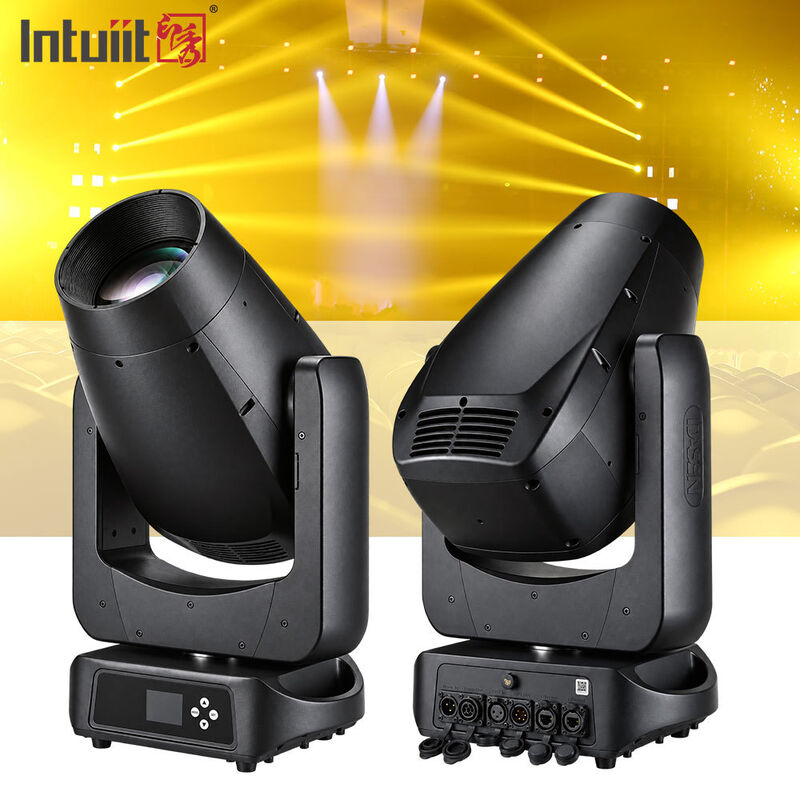

280W LED BSW Moving Head DMX Stage Lighting for bar Night Club Wedding Show
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS&CB&PSE&FCC&ETL&SAA RCM |
| Model Number: | XY-050P |
Payment & Shipping Terms:
| Minimum Order Quantity: | MOQ 20Pcs |
|---|---|
| Packaging Details: | Inner box+ Master Carton/ Flight case |
| Delivery Time: | 25-35days for mass order |
| Payment Terms: | T/T IN ADVANCE (30% Deposit, 70% balance payment before delivery) |
| Supply Ability: | 5000Pcs/Month |
|
Detail Information |
|||
| Source: | 280W LED | CCT: | 8672K |
|---|---|---|---|
| CRI: | 74 | Beam Angle: | 3°-30° |
| Color Wheel: | CMY+5 Color+4 Pizza Color+1 Open | Rotated Gobo Wheel: | 9+1 Open |
| Fixed Gobo Wheel: | 13+1open | Prim: | 4 Facet Prism + 1 Linear Prism |
| IP Grade: | IP66 | ||
Product Description
This 280W LED 3-in-1 BSW Moving Head weighs 23.5kg net, with a maximum smart light source lifespan of 5,0000 hours. It is equipped with a CMY color mixing system, 4-in-1 pizza color wheel, delivering rich dynamic beam effects.
The fixture features a 138mm front aperture. Its illuminance reaches 100,000lux @5m ,beam angle adjustable from 3° to 33°. It produces clean and sharp beams. The ultra-high light output generates powerful beams, crisp gobos and full wash effects for a wide range of applications.
Specifications List:
- Color Wheel: CMY+5 color+4 pizza color+1 (with open white position)
- Gobo Wheels: 9+1 Rotating Gobo Wheel + 13+1 Fixed Gobo Wheel (both with open white position)
- Prism: 4 facet prism + 1 linear prism
- Frost: one medium frost
- Electronic Focusing; Pan: 540°, Tilt: 270°
- IP Rating: IP66 certified. Fully protected against high-pressure water jets and fine dust. It operates reliably under heavy rain, seaside outdoor and saline environments.
Warranty: 2-year warranty
Technical Data
| Item No. | XY-050P |
| Light Source | 280W LED |
| CRI | 74 |
| Iris | CMY |
| Beam angle | 3-30Degree |
| Luminous flux | 6053lux@20m(30°),7963lux@20(3°) |

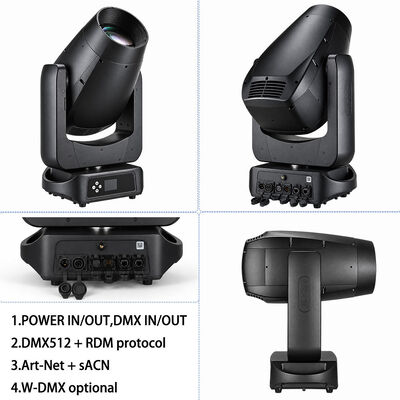

| Control Protocol | Art-Net, sACN,RDM, DMX |
| DMX Channels | 23/26CH |
| IP Grade | IP66 |
| Product's dimension | 365*245*659MM |
| Net Weight | 23.5KG |
