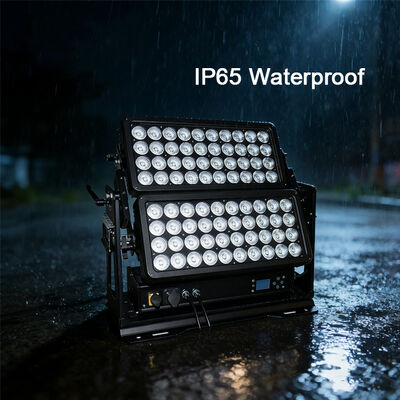

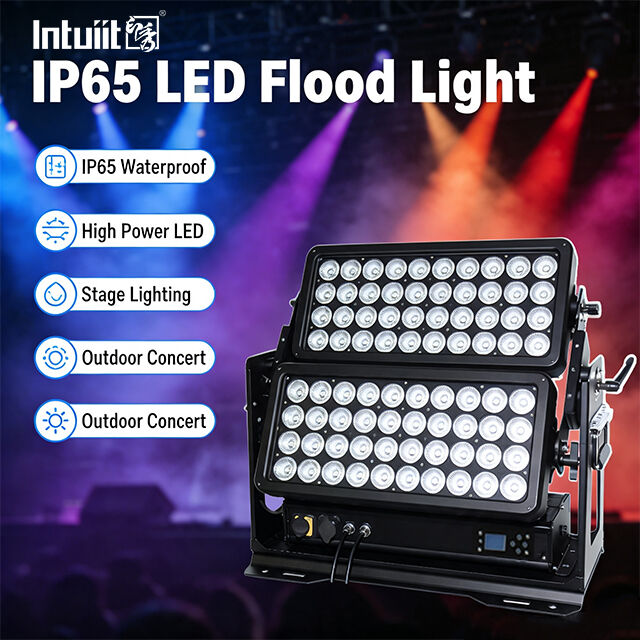

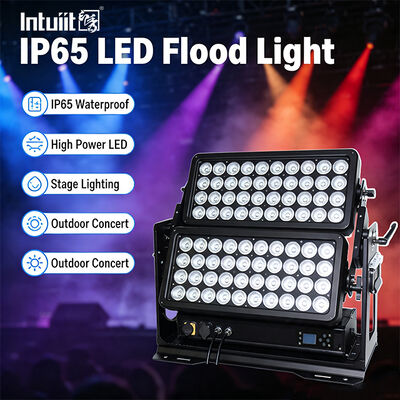

400W 800W 1500W High Power LED Flood Light IP65 Waterproof DMX512 Outdoor Stadium Building Industrial Construction Lighting
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | MYLED-150T |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Inner box+ Master carton / Flight case |
| Delivery Time: | 25-35days for mass order |
| Payment Terms: | T/T IN ADVANCE (30% Deposit, 70% balance before delivery) |
| Supply Ability: | 10000Pcs/Month |
|
Detail Information |
|||
| Type: | LED Flood Light | Light Source: | High Power RGBW 4-in-1 LED |
|---|---|---|---|
| Input Voltage: | AC100-240V, 50-60Hz | Max. Power: | 800W |
| IP Grade: | IP65 | Warranty: | 1 Year |
| Beam Angle: | 20°/40° | Dimming: | 0-100% |
Product Description
Lighting the Night at Scale: Inside the MYLED-150T 800W RGBW Flood Light
-
The Problem: Big Spaces Are Hard to Light
A theme park plaza at night. A building facade you can see from two blocks away. A community park where foot traffic peaks after sunset. These spaces share one challenge: ordinary flood lights wash out, fall short, or fail within a season.
The MYLED-150T was built to answer exactly that — an 800W outdoor flood light that throws light far enough, evenly enough, and durably enough for large-area night illumination.
-
What Makes the 800W Twin-Panel Design Different

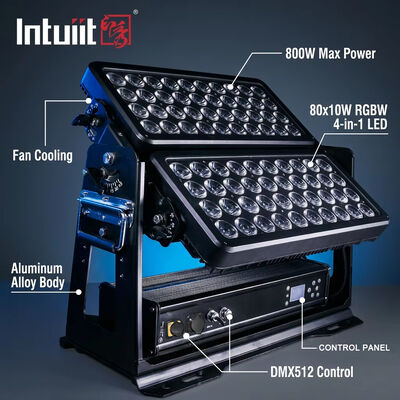

Most outdoor floods push a single high-power board. The MYLED-150T splits the load across two independent 400W LED panels, reaching a combined 800W output while keeping thermal stress per panel low — a design choice that supports both brightness and long service life.
- 10W RGBW 4-in-1 LEDs — one engine for saturated colors and true white tones, so the same fixture handles both decorative and functional illumination.

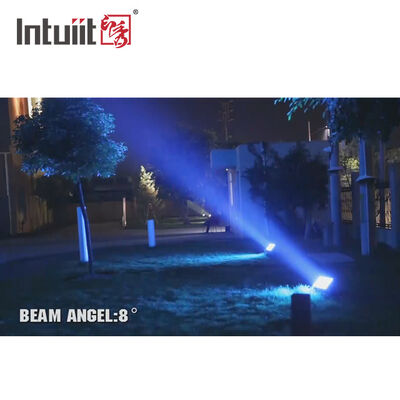

- Triple beam selection — 8° / 20° / 40° — use 8° for long-throw accent on towers and tall facades, 20° for general projection, 40° for wide washes across plazas and lawns.

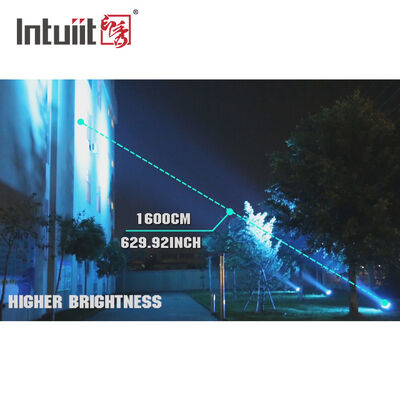

- Long-distance throw — high output plus adjustable optics means light carries across large structures without the falloff typical of smaller units.
Where It Fits in the Dasen Flood Light Range
Not every project needs 800W. The table below helps specifiers scale output to the site:
Built for These Spaces
Theme parks and theme towns | Community parks | Building facades and large structures | Landscape washes | Outdoor stages and events
Technical Data
| Item No. | MYLED-150T |
| Light Source | 80Pcs*10W RGBW 4-in-1 LED |
| Max. Power | 800W |
| Work voltage | AC100-240V,50-60Hz |
| Beam angle | 20Degree,40Degree |
| Luminous flux | 19389lm |
| Control Protocol | DMX512 |
| DMX Channels | 8CH,10CH,12CH |
| IP Grade | IP65 |
| Product's dimension | 617*458*370mm |
| Net Weight | 23KG |
Light Distribution Data
Product's Dimension
Installation Diagram

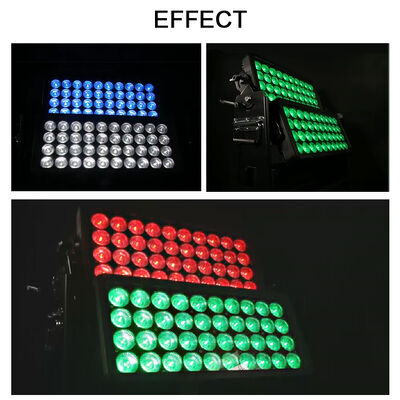

Effect Display
