16x5W RGBW 4-in-1 IP65 Outdoor LED Linear Wall Washer — 82W DMX512 Waterproof Wash Light for Building, Bridge & Landscape
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | TPL-128 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Inner box+ Master Carton/ Flight case |
| Delivery Time: | 25-30days |
| Payment Terms: | T/T (30% deposit, 70% balance before delivery) |
| Supply Ability: | 10000Pcs/Month |
|
Detail Information |
|||
| Type: | LED Bar Light | Max. Power: | 82W |
|---|---|---|---|
| Input Voltage: | AC100-240V, 60Hz/50Hz | Light Source: | RGBW 4-in-1 LED |
| IP Grade: | IP65 | Warranty: | 1 Year |
| DMX Channel: | 4/6/9CH | Leds: | 16 |
| N.W.: | 6.2kg | G.W.: | 6.5kg |
Product Description
TPL-128 LED Linear Bar — Architectural Lighting, Built for the Elements
The TPL-128 is an IP65-rated outdoor LED linear bar powered by 16*5W RGBW 4-in-1 LEDs, delivering pure color mixing, dynamic effects, and flicker-free 16-bit dimming. Housed in a rugged die-cast aluminum chassis, it is engineered for permanent architectural installations and demanding live productions alike.
Key Features
- IP65 All-Weather Sealed — Dust-tight and water-resistant; built for permanent outdoor deployment.
- RGBW 4-in-1 LED Array — Integrated white channel unlocks full-spectrum pastels, ambers, and daylight whites with zero color fringing.
- Dual Beam Angle — Tool-free switch between 20° spot and 40° flood in seconds.
- 16-Bit Precision Dimming — Flicker-free 0–100% fades, camera-ready at any intensity.
- DMX512 + RDM — Full protocol support with remote addressing and diagnostics.
- OLED Touch-Panel Control — Direct DMX configuration and status readout, sunlight-legible.
Applications
Architectural facade wash | Stage & live events | Theme parks & public installations | Hospitality & landscape
1. Product Description
| Brand:Guangzhou Dasen Lighting Corporation | Type : TPL-128 |
| Light source: LED | Wire:rubber cable |
| Application : STAGE, OUTDOOR INDOOR | Housing color:Black |
| Type: | TPL-128 | ||
| Rated power: | 82W | Rated Voltage: | AC100-240V/60-50HZ |
| Control Mode: | DMX512 | Color: | RGBW |
| Beam Angle : | 40°,20°optional | Cooling type: | Natural convection cooling |
| Product Size : | 1008*145*145mm | IP Rate: | IP65 |
| N.W: | 6.2KG | Channel: | 4,6,9CH |
| LED : | Prolight RGBW 5W | Permitted Ambient Temperatur: | -20~+45 |
Optical Parameter

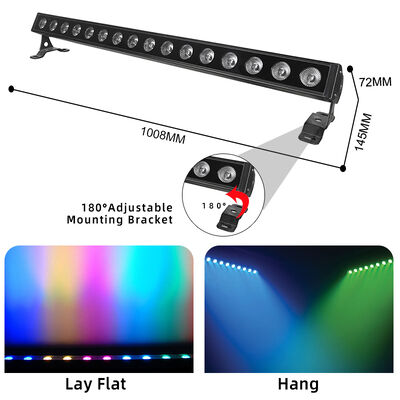

Product's Dimension
Installation Diagram
Effect Display
Want to Know more details about this product
