400W IP65 Water Wave Projector Light — LED DMX512 Outdoor Dynamic Ripple Effect for Building, Pool & Stage
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | SW-301P |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Inner box + Master Carton |
| Delivery Time: | 25-35days |
| Payment Terms: | T/T IN ADVANCE |
| Supply Ability: | 10000Pcs/Month |
|
Detail Information |
|||
| LED Light Source: | 400W White Light Group | Lamp Luminous Efficiency(lm/w): | 14 |
|---|---|---|---|
| Color Temperature(CCT): | 8000K | Input Voltage: | AC100-240V,50/60Hz |
| Beam Angle: | 35°,60° | Warranty: | 1 Year |
| Data Protocol: | DMX512 , RDM | Lumen: | 5200lm |
| Drive Current: | 9A | ||
Product Description
SW-301P: 400W IP-Rated Water-Wave Projector – High-Power Zoom Optics in a Magnesium Chassis
400W Output. Variable Zoom. Seven-Color Fluid Ripple Projection.
Key Specifications
Core Advantages
400W Zoom-Controlled Water Ripple. A powerful LED engine paired with variable zoom optics enables adjustable projection scale and focus—from intimate water textures on boutique facades to expansive wave patterns across bridge spans and large-scale architectural surfaces.
Magnesium Alloy Build. The lightweight, corrosion-resistant chassis combines touring-grade durability with a sleek, low-profile aesthetic—engineered for permanent outdoor installations where structural weight and long-term weathering are critical design factors.
7-Color Fluid Dynamics. Seven programmed hues drive a natural rainbow water effect with smooth, gray-scale dimming transitions. The result is organic, motion-rich illumination that simulates flowing water across buildings, plazas, and performance venues.
DMX512 & RDM Bidirectional Control. Full protocol integration for complex multi-fixture programming. RDM enables remote addressing and real-time diagnostics—essential for large-scale cultural tourism deployments where physical fixture access is constrained.
Applications

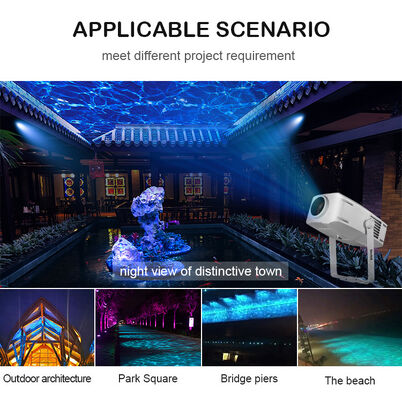

Cultural Tourism Districts · Theme Parks · Bridge & Pier Illumination · Live-Action Performances · Town Nightscapes · Large-Scale Facade Projections
| Product Name | 400W Outdoor gobo projector zoom image projector with video programmed effect | ||
| Item Number | SW-301P | ||

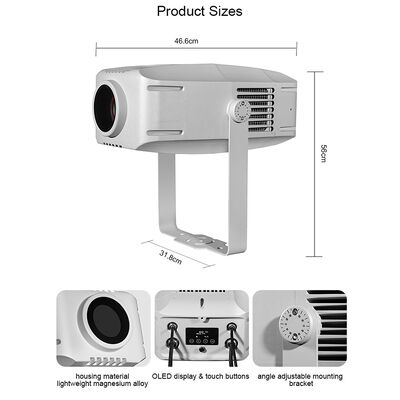

| Product Measurement | 560*318*200MM | ||
| Inner Packing Size | 700*415*330MM | ||
| Packing Quantity | 1pc/Carton | ||
| N.W./G.W. | 13.5KG/18KG | ||
| Housing Material/Color | Die casting Magnesium Alloy/Matt Black/Cement Grey | ||
| Device Linking | DMX in/out(3 pin),power in/out | ||
| Max Power | 420W | ||
| Power line System | European/American | 2 PCS @100V | 7 PCS @240V |
| Beam Angle | 10° - 30° | Focus/Prism | Electronic focus / 3 Prism |
| Data Protocol | DMX512, RDM | ||
| Channel | 10CH / 11CH | ||
| Dimming | 0-100% | ||
| Color | 7+1 (open white) colors | ||
| Gobo | 6+1 (open white) gobo | ||
| Feature | Gobo shaking, Gobo bi-directional rotation, Gobo fluttering effect, Accurate focus | ||
|
|
|
|
