60*12W RGBW 4in1 IP65 Outdoor LED PAR Can Uplighting Set DMX512 Stage Wash Light for Wedding Event Building Facade
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&Rohs |
| Model Number: | MYLED-131 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Carton、flight case |
| Delivery Time: | 30~35 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| L Ig Ht So Urce: | 60x12W 4-in-1 RGBW | Lumen: | 12060lm |
|---|---|---|---|
| Beam Angle: | 20°/ 30°/ 40°Optional | Input Voltage: | AC100V-240V |
| Power: | 300W | Drive Current: | 500mA |
| IP Grade: | IP65 | ||
Product Description

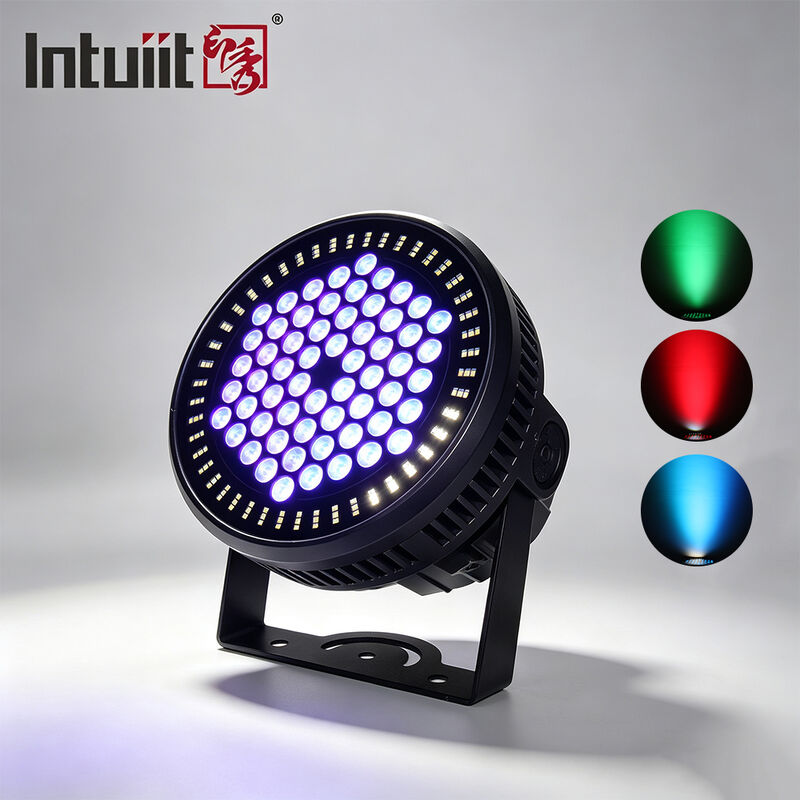

MYLED-131: IP65 RGBW LED PAR with Integrated Strobe – Dual-Mode Outdoor Architectural Fixture
Headline
Precision Wash Meets Dynamic Strobe. One Fixture. Total Control.
Key Specifications
Core Advantages
RGBW Wash + Integrated Strobe. The primary RGBW engine delivers rich, uniform color blending for architectural washes, while the circular SMD strobe array adds a second layer of kinetic energy—combining two fixture roles in a single housing.
20° Focused Optics with Barndoor Control. The 20-degree beam provides precise, controlled illumination for highlighting facades, columns, and landscape features. Included barndoors eliminate spill light for clean, professional beam shaping out of the box.

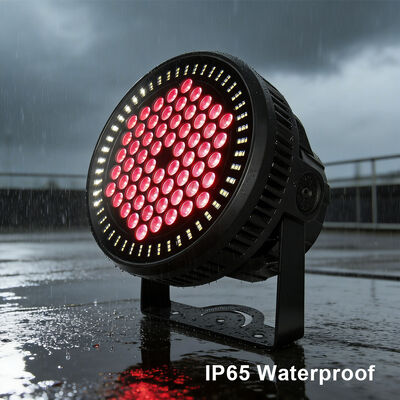

IP65 All-Weather Durability. Fully sealed against dust and water ingress. Deploy with confidence in permanent outdoor installations, rain or shine.

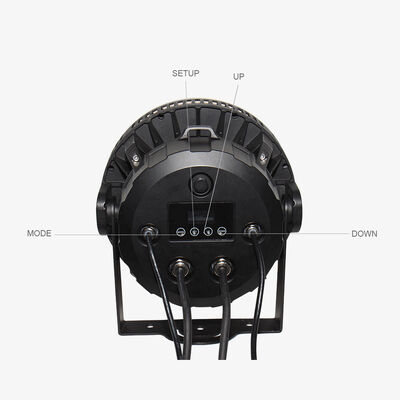

Flexible Operating Modes. Choose from DMX integration, Master/Slave synchronization, built-in programs, or standalone auto-run—adaptable to projects with or without a dedicated lighting console.
Applications
Architectural Facades · Landscape Highlighting · Outdoor Stages · Event Perimeters · Monument Illumination
Specification
| Product name | 300W Outdoor LED Par | ||||||
| Item number | MYLED-131 | ||||||
| physical property | Product Measurement | 310mm*271mm*200mm | |||||
| Inner Packing Size | 375*345*290mm | ||||||
| Outer Packing Size | 710*395*315mm | ||||||
| Quantity | 2pcs/ctn | ||||||
| N.W. | 7.98Kg | ||||||
| G.W. | 9.85Kg | ||||||
| Housing Material | Die casting Aluminium | ||||||
| Color | Black | ||||||
| Device Linking | Power In/Out,DMX In/Out | ||||||
| Electric Parameters | Input Voltage Range | AC100-240V,60/50HZ | |||||
| Max Power | 380W/AC110V | 360W/240V | |||||
| Power Factor | 0.998/AC110V | 0.981/A240V | |||||
| Input Current | 3.7A/AC110V | 1.5A/AC240V | |||||
| Power Linking | 3pcs/AC110V | 8pcs/AC240V | |||||
| Optical System | LED Light Source | RGBW | |||||
| Drive Current | 500MA | ||||||
| Dimming | 0-100% | ||||||
| Strobe | 0-20Hz | ||||||
| Light Angle | Beam angle | 20° | Spot angle | 45° | |||
| Max Lumen | 9602 lm | ||||||
| Control | Data Protocol | DMX512 | |||||
| DMX Channel | 7/11/18/28/32/39CH | ||||||
| Safety | IP Rate | IP65 | |||||
| Working Tempreture | -20°～40° | ||||||
| Lux | Distance | F | R | G | B | W1 | W1+W2 |
| 1M | 60000 | 15300 | 24200 | 4152 | 25100 | 25700 | |
| 2M | 15300 | 4100 | 7400 | 1220 | 7010 | 7430 | |
| 3M | 6900 | 1830 | 3100 | 555 | 3130 | 3160 | |
| 4M | 3680 | 960 | 1730 | 320 | 1780 | 1880 | |
| 5M | 2480 | 691 | 1148 | 216 | 1190 | 1240 | |

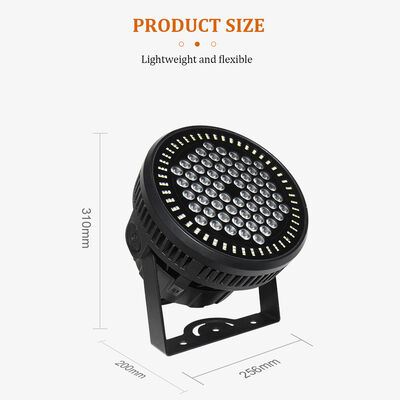

Dimension sheet:
Installation:
Effect Images:
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
