Wall Washer Light DMX512 RGB RGBW Colorful LED Outdoor Indoor 6W 12W 24W Linear Bar for Wedding Church Party Stage Lighting
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE RoSH |
| Model Number: | IXQ18A |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Carton |
| Delivery Time: | 25-35days |
|
Detail Information |
|||
| Type: | Led Light Bar | Light Source: | LED |
|---|---|---|---|
| Input Voltage: | DC24V | Lamp Power: | 24W |
| IP Rated: | IP65 | Warranty: | 2 Years |
| Beam Angle: | 20°/30°/40°/20*40°/60°Optional | Channel: | 4/6/7/16CH |
| Lifespan: | 50,000 Hours | Light Color: | RGB |
| Net Weight: | 1.5kg | Power: | 24W |
| Product Size: | 1000*35*63mm | Voltage: | AC110-240V |
| Highlight: | DMX512 RGBW LED wall washer light,Outdoor indoor linear bar stage lighting,Wedding church party LED stage light |
||
Product Description
IXQ18A – High-Performance Outdoor LED Linear Washer Light
Designed for all-weather architectural and landscape lighting, the IXQ18A delivers vivid color mixing, flexible control, and reliable IP65 protection.
Key Specifications
Power: 24W
Protocol: DMX512 + RDM (supports remote device management)
Color Options: RGB / RGBW / 1800K~6500K tunable white
Lengths Available: 0.3m, 0.5m, 1m (seamless splicing supported)
Voltage: DC24V (safe for outdoor installations)
Key Advantages
True Color Mixing – High-uniformity optics for smooth gradients and pixel-level effects.

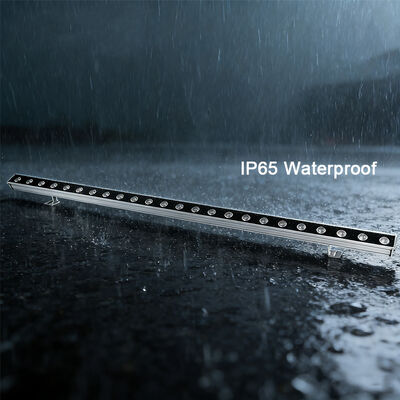

Weather-Ready – IP65 rated, lightweight, compact, and operable in extreme conditions.
Smart Control – Individual section control enables dynamic pixel mapping for hotels, malls, bridges, squares, municipal buildings, and landscape projects.
Best For

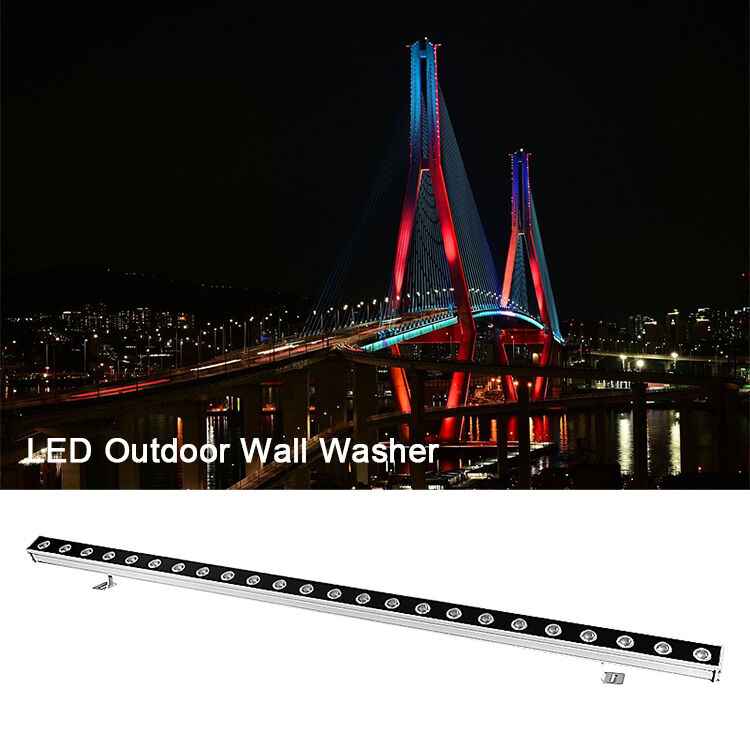

Facade grazing, bridge contouring, park pathways, building outlines, and any outdoor installation requiring vivid, programmable lighting.
Specification:
| Item Number | IXQ18A01(1M) IXQ18A06(0.5M) IXQ18A07(0.3M) |
IXQ18A03(1M) IXQ18A08(0.5M) IXQ18A09(0.3M) |
IXQ18A10(1M) IXQ18A11(0.5M) IXQ18A12(0.3M) |
IXQ18A13(1M) IXQ18A14(0.5M) IXQ18A15(0.3M) |
IXQ18A17(1M) |
| LED Qty | 24pcs(1M) / 12pcs(0.5M) / 6pcs(0.3M) | 16pcs(1M) / 8pcs(0.5M) / 4pcs(0.3M) | 16pcs(1M) | ||
| Beam Angle | 20°/30°/40°/20*40°/60°Optional | ||||
| Spot Angle | 40°/50°/75°/45*75°/100°Optional | ||||
| Lumen | 2350lm / 1160lm / 570lm | 960lm / 575lm /320lm | 1040lm / 610lm / 350lm | 1040lm | |
| CRI | Ra≥70 | / | / | / | |
| Color Tempreture | 2700∽6000K Optional | RGB | RGBW(W:3000 / 4000 / 6000K Optional) | ||
| Product Measurement | 1000*35*63MM(1M) / 510*35*63MM(0.5M) / 300*52*101MM(0.3M) | ||||
| N.W. | 1.5kg(1M) / 0.8kg(0.5M) /0.5kg(0.3M) | ||||
| Input Voltage Range | DC24V | ||||
| Watts | 24W(1M) / 12W(0.5M) / 6W(0.3M) | ||||
| Power Factor | >0.9 | ||||
| Housing Material | Tensile Aluminum + die-cast aluminium | ||||
| Color | Matt black / Grey | ||||
| Cooling | Natural convection cooling | ||||
| Control Protocol | ON/OFF | DMX512 | DMX512 | DMX512 | DMX512-RDM |
| Segmented Control | / | 4Section(1M)/2 Section(0.5M)/1Section(0.3M) | 4 Section(1M) | ||
| Channel | / | 4 / 6 / 7 / 16 CH | |||
| Power /Installation | Independent | ||||
| Conection | 3pin rubber cable:input/output | black rubber cable 5 Pin In & Out | |||
| Power Linking | 6cs(1m) / 12pcs(0.5m) /24pcs(0.3m) | ||||
| DMX Linking | / | 32pcs(1M) / 64pcs(0.5M) / 128pcs(0.3M) | |||
| Certification | CE,RoHS | ||||
| IP Grade | IP65 | ||||
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
