Professional 400W IP65 Waterproof Outdoor Landscape Architecture Led Water Wave Effect Light
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | SW-301P |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Inner box + Master Carton |
| Delivery Time: | 25-35days |
| Payment Terms: | T/T IN ADVANCE |
| Supply Ability: | 10000Pcs/Month |
|
Detail Information |
|||
| LED Light Source: | 400W White Light Group | Lamp Luminous Efficiency(lm/w): | 14 |
|---|---|---|---|
| Color Temperature(CCT): | 8000K | Input Voltage: | AC100-240V,50/60Hz |
| Beam Angle: | 35°,60° | Warranty: | 1 Year |
| Data Protocol: | DMX512 , RDM | Lumen: | 5200lm |
| Drive Current: | 9A | ||
Product Description

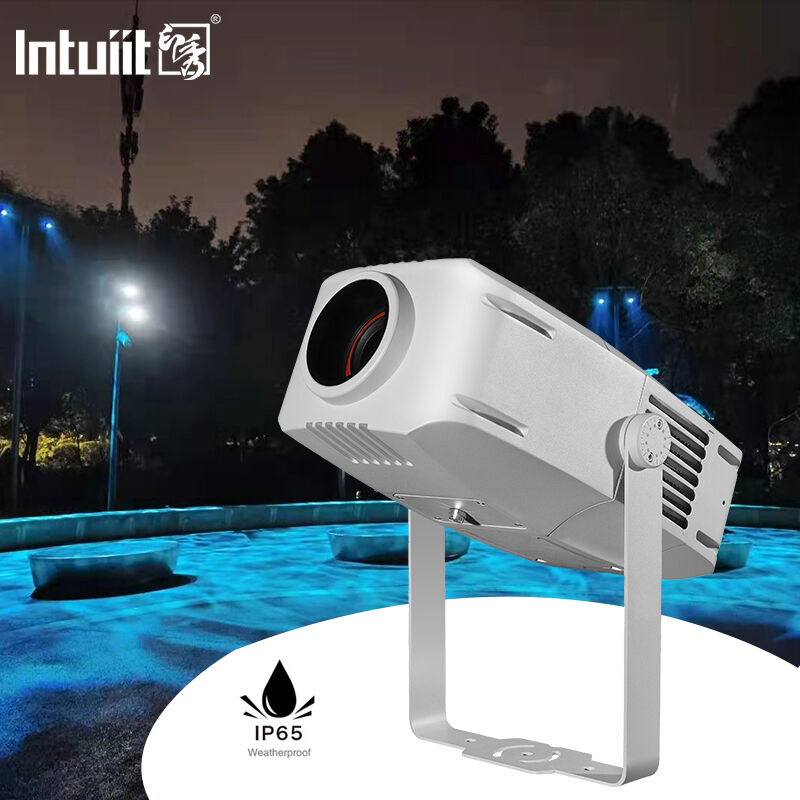

SW-301P Gobo Projector: High-Performance Outdoor Lighting Solution
The SW-301P is a professional-grade gobo projector engineered to deliver exceptional brightness, reliability, and creative flexibility for demanding outdoor and architectural lighting applications. Below is an overview of its core features:
-
High-Output 400W LED – Provides intense, vibrant illumination capable of lighting expansive facades, high structures, and large-area installations with ease.
-

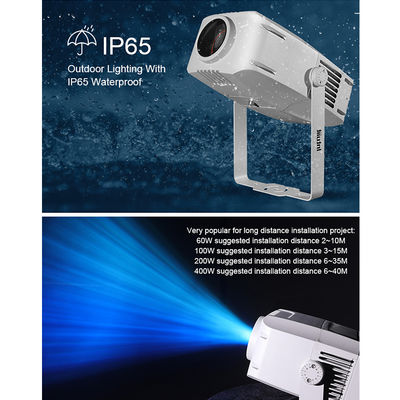

Robust Weatherproof Build – Designed to perform reliably in outdoor environments, ensuring consistent operation under various weather conditions.
-
Motorized Zoom & Focus – Allows smooth adjustment of projection size and sharpness, offering adaptability for different throw distances and scene requirements.
-
Compact & Durable Housing – Crafted from lightweight magnesium alloy, it combines strength, longevity, and a modern, low-profile design suitable for permanent or temporary installations.
-

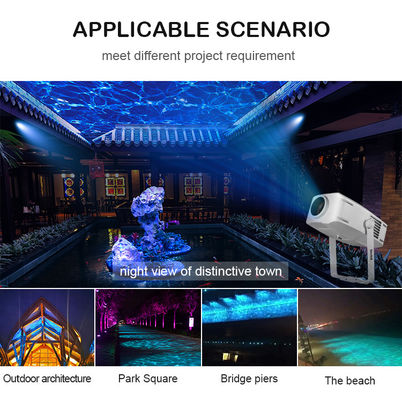

Ideal for Tourism & Theme Environments – Perfect for enhancing nightscapes in cultural tourism districts, theme parks, live shows, bridges, and architectural highlighting.
-
7-Color Dynamic Effects – Enables rich, fluid color mixing to create captivating rainbow and water-like visual displays.
-
Seamless Dimming & Grayscale Transition – Delivers smooth brightness control and subtle grade shifts for professional-grade lighting scenes.
-
Advanced Control Compatibility – Supports DMX512 and RDM bidirectional communication for integrated system control, flexible programming, and simplified device management.
Combining powerful output, environmental resilience, and versatile projection capabilities, the SW-301P stands out as a premium lighting solution for creating stunning visual experiences in outdoor, architectural, and entertainment settings.
| Product Name | 400W Outdoor gobo projector zoom image projector with video programmed effect | ||
| Item Number | SW-301P | ||

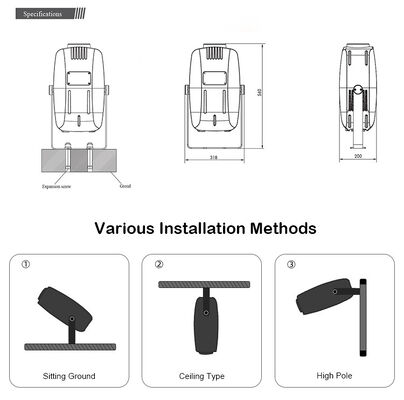

| Product Measurement | 560*318*200MM | ||
| Inner Packing Size | 700*415*330MM | ||
| Packing Quantity | 1pc/Carton | ||
| N.W./G.W. | 13.5KG/18KG | ||
| Housing Material/Color | Die casting Magnesium Alloy/Matt Black/Cement Grey | ||
| Device Linking | DMX in/out(3 pin),power in/out | ||
| Max Power | 420W | ||
| Power line System | European/American | 2 PCS @100V | 7 PCS @240V |
| Beam Angle | 10° - 30° | Focus/Prism | Electronic focus / 3 Prism |
| Data Protocol | DMX512, RDM | ||
| Channel | 10CH / 11CH | ||
| Dimming | 0-100% | ||
| Color | 7+1 (open white) colors | ||
| Gobo | 6+1 (open white) gobo | ||
| Feature | Gobo shaking, Gobo bi-directional rotation, Gobo fluttering effect, Accurate focus | ||
|
|
|
|

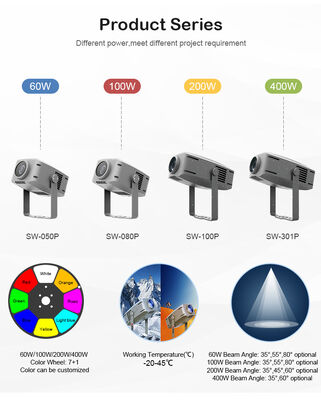

SW-303P 400W zoom gobo projector |
SW-304P 200W zoom gobo projector |
SW-305P 100W zoom gobo projector |
|
|
|
|
SW-301P 400W water wave light |
SW-100P 200W water wave light |
SW-050P 100W water wave light |
