16*5W IP65 Led Wash Lights Dmx Outdoor Wall Washer Wall Mount Dmx Outdoor Rgb Wall Washer
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | TPL-128 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Inner box+ Master Carton/ Flight case |
| Delivery Time: | 25-30days |
| Payment Terms: | T/T (30% deposit, 70% balance before delivery) |
| Supply Ability: | 10000Pcs/Month |
|
Detail Information |
|||
| Type: | LED Bar Light | Max. Power: | 82W |
|---|---|---|---|
| Input Voltage: | AC100-240V, 60Hz/50Hz | Light Source: | RGBW 4-in-1 LED |
| IP Grade: | IP65 | Warranty: | 1 Year |
| DMX Channel: | 4/6/9CH | Leds: | 16 |
| N.W.: | 6.2kg | G.W.: | 6.5kg |
Product Description
TPL-128 LED Light Bar: Redefining Professional Outdoor Lighting
Engineered for the most demanding professional settings, the TPL-128 is a high-output LED light bar that combines rugged construction with exceptional versatility. Built to excel in architectural, stage, and event lighting applications, it delivers dynamic performance wherever reliability is non-negotiable.
Key Features:
-
Industrial-Grade Durability: Featuring a die-cast aluminum housing with an IP65 rating, it is fully protected against dust and water ingress.
-
Rich & Vibrant Color: 4-in-1 RGBW LEDs produce a vast color spectrum and exceptionally smooth color mixing.
-
Adaptable Beam Control: Instantly switch between a tight 20° spot and a wide 40° wash for precise lighting control on the fly.
-

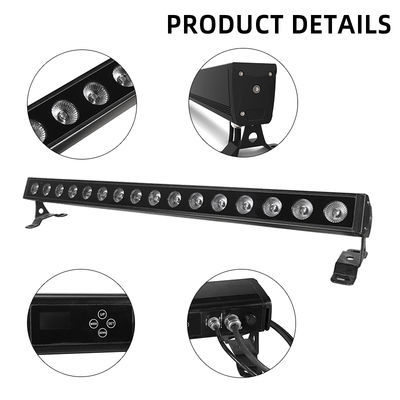

Streamlined Operation: Manage all settings effortlessly through a user-friendly OLED display and responsive touch interface.
-
Professional Dimming: Experience perfectly smooth fades and unmatched control with 16-bit high-resolution dimming.
-
Proven in the Field: The trusted choice for leading architects, stage designers, and event producers.
Create with Confidence
Fuse cutting-edge lighting technology with uncompromising resilience. Ideal for accenting architectural details, creating dramatic stage scenes, and crafting unforgettable event experiences.
Step up to TPL-128 — where brilliant innovation is built to last.
1. Product Description
| Brand:Guangzhou Dasen Lighting Corporation | Type : TPL-128 |
| Light source: LED | Wire:rubber cable |
| Application : STAGE, OUTDOOR INDOOR | Housing color:Black |
| Type: | TPL-128 | ||
| Rated power: | 82W | Rated Voltage: | AC100-240V/60-50HZ |
| Control Mode: | DMX512 | Color: | RGBW |
| Beam Angle : | 40°,20°optional | Cooling type: | Natural convection cooling |
| Product Size : | 1008*145*145mm | IP Rate: | IP65 |
| N.W: | 6.2KG | Channel: | 4,6,9CH |
| LED : | Prolight RGBW 5W | Permitted Ambient Temperatur: | -20~+45 |
Optical Parameter

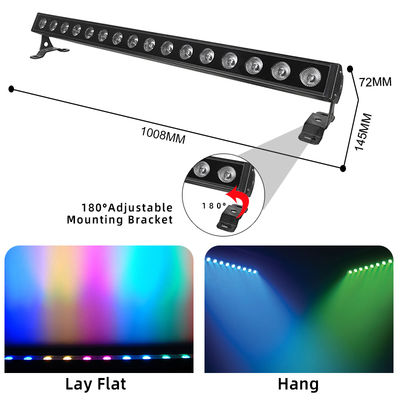

Product's Dimension
Installation Diagram
Effect Display
