100W Laser Moving Head Led Dmx512 Stage Lighting Disco IP66 Moving Head Light
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | XY-052P |
Payment & Shipping Terms:
| Minimum Order Quantity: | MOQ 20Pcs |
|---|---|
| Packaging Details: | Inner box+ Master Carton/ Flight case |
| Delivery Time: | 25-35days for mass order |
| Payment Terms: | T/T IN ADVANCE (30% Deposit, 70% balance payment before delivery) |
| Supply Ability: | 5000Pcs/Month |
|
Detail Information |
|||
| Source: | 100W Laser | CCT: | 10000K |
|---|---|---|---|
| CRI: | 75 | Beam Angle: | 0.8° |
| Color Wheel: | 12+1open | Iris: | CMY |
| Rotated Gobo Wheel: | 10+1 Open | Fixed Gobo Wheel: | 23+1open |
| Prim: | 18/36 Facet Prism + 6 Linear Prism | IP Grade: | IP66 |
Product Description
Dasen Imager B100 Moving Head – Redefining Stage Lighting Excellence
Step into the future of stage production with the Dasen Imager B100, where cutting-edge technology meets exceptional performance.
Designed to deliver professional-grade impact in a compact form, this moving head light features:
-
Advanced Color System – Patented 8-color wheel combined with full CMY mixing unlocks millions of rich, vibrant colors for limitless creative expression.
-
Extensive Gobo Capabilities – 23 static and 10 rotating gobos, plus one customizable slot, offer virtually endless pattern possibilities for dynamic visual storytelling.
-
Crystal-Clear Prism Effects – Ultra-bright, multi-faceted prism projections add depth and dimension to captivate any audience.
-
Robust IP66 Protection – Built to withstand rain, dust, and harsh environments, ensuring reliable operation in any condition.
Ideal for concerts, theater productions, and large-scale live events, the Imager B100 brings studio-level precision and unwavering reliability to every performance.
Technical Data
| Item No. | XY-052P |
| Light Source | 100W Laser |
| CRI | 75 |
| Iris | CMY |

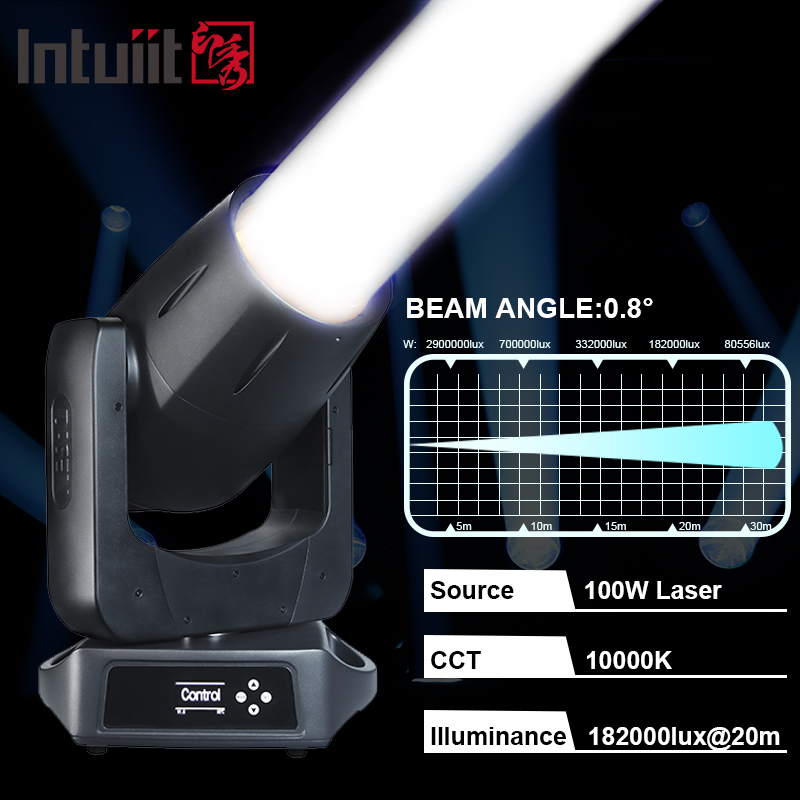

| Beam angle | 0.8Degree |
| Luminous flux | 182000LM@20m |

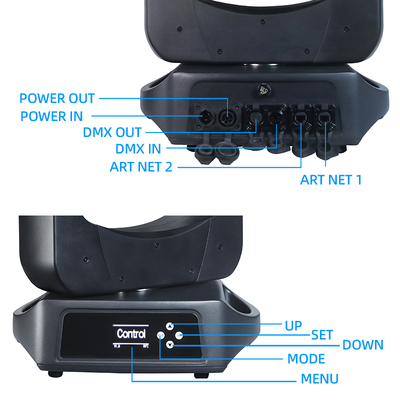

| Control Protocol | Art-Net, sACN,RDM, DMX |
| DMX Channels | 15/26CH |
| IP Grade | IP66 |

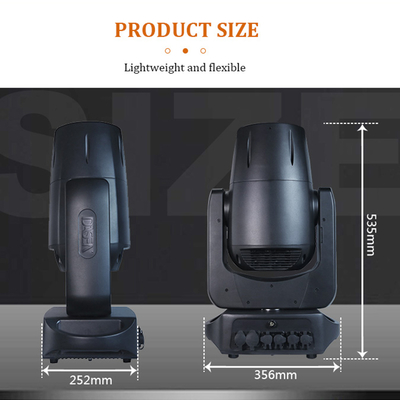

| Product's dimension | 356*246*586MM |
| Net Weight | 22KG |
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
