Hot Selling DMX Effect Pixel Bar Color Changing Wash Bar 14pcs 10w Led RGBW 4in1 Wall Washer Lighting
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | CT-002P |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Inner box+ Master carton |
| Delivery Time: | 25-35days for mass order |
| Payment Terms: | T/T IN ADVANCE (30% Deposit, 70% balance payment before delivery) |
| Supply Ability: | 10000Pcs/month |
|
Detail Information |
|||
| Product Name: | Outdoor Wall Washer Pixel Control | Housing Color: | Black |
|---|---|---|---|
| Power: | 140W | Input Voltage: | AC100-240V, 60Hz/50Hz |
| IP Grade: | IP65 | Warranty: | 1 Years |
| CCT: | 3000K | Beam Angle: | 20°, 20*40° |
| Channel: | 4/6/8/56CH | Light Color: | RGBW |
| Material: | Aluminum Alloy | Size: | 978*141*179mm |
| Voltage: | AC110-240V | Weight: | 6.2kg |
| Highlight: | DMX effect pixel bar,RGBW wall washer lighting,10W LED stage light |
||
Product Description
The CT-002P is an IP65-rated stage LED light bar built to perform in outdoor environments. Its robust die-cast aluminum housing combines durability with a sleek, modern design—ideal for stage productions, events, and architectural lighting projects.
Equipped with 14 high-intensity 10W RGBW 4-in-1 LEDs, this light bar delivers vibrant, rich colors and seamless color mixing, empowering you to create dynamic and immersive lighting atmospheres. Choose between 20° or 40° beam angles to tailor your lighting design with precision.
A standout feature of the CT-002P is its advanced pixel control, giving you independent command over each LED. Unlock the potential for intricate patterns and breathtaking visual displays that elevate any performance or installation.

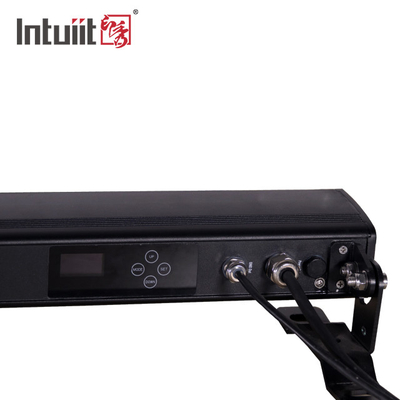

User-friendly operation is ensured through an intuitive control panel featuring an OLED display and four touch-sensitive buttons. Adjust settings, switch modes, and fine-tune parameters directly from the fixture—no external controller needed.
Experience flawless dimming with 16-bit precision, enabling smooth intensity transitions and exceptional gradient control for professional-grade output.
Engineered to resist dust and moisture, the IP65 rating guarantees reliability even in demanding outdoor conditions. Whether for concerts, festivals, or permanent installations, the CT-002P delivers consistent, high-impact lighting.
Versatile, resilient, and creatively empowering, the CT-002P Stage LED Light Bar is the go-to solution for designers and technicians seeking superior optical performance and rugged construction in one compact fixture.
Technical Data
| Item No. | CT-002P |
| Light Source | 14Pcs*10W RGBW 4-in-1 LED |
| Max. Power | 85W |
| Work voltage | AC100-240V,50-60Hz |
| Beam angle | 20Degree, 20*40D |
| Luminous flux | 1087lm |
| Control Protocal | DMX512, RDM |
| DMX Channels | 4,6,8,56CH |
| IP Grade | IP65 |
| Certificate | CE&RoHS |
| Product's dimension | 978*141*179MM |
| Net Weight | 6.2kg |

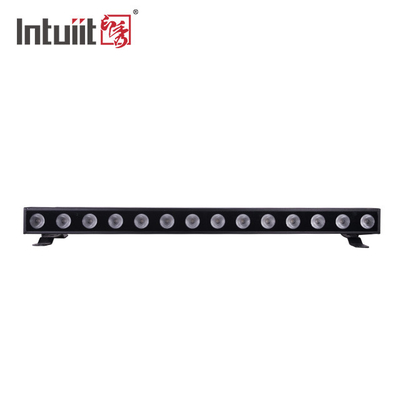

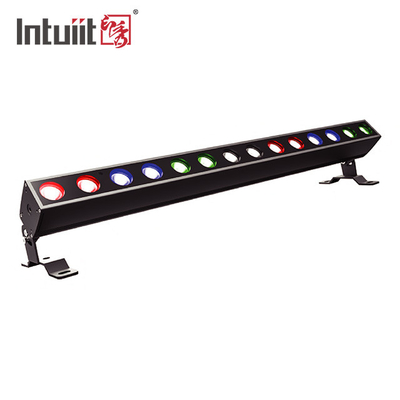

Appearance
Light Distribution Data

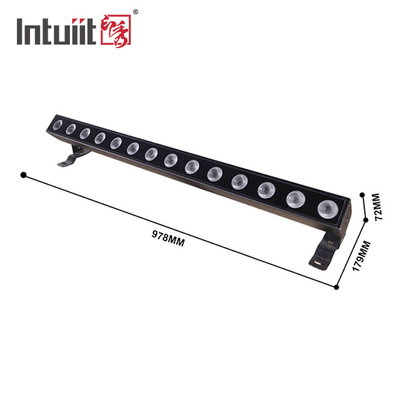

Product's Dimension
Installation Diagram
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
