14*10w Aluminum IP65 Waterproof Wall Washer Lamp Hotel Facade Lighting Outdoor Building Led Wall Washer
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | CT-002P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | Inner box+ Master carton |
| Delivery Time: | 25-35days for mass order |
| Payment Terms: | T/T IN ADVANCE (30% Deposit, 70% balance payment before delivery) |
| Supply Ability: | 10000Pcs/month |
|
Detail Information |
|||
| Product Name: | Outdoor Wall Washer | LED Qty: | 14*10W 4in1 RGBW |
|---|---|---|---|
| IP Grade: | IP65 | Warranty: | 1 Year |
| CCT: | 3000K | Beam Angle: | 15*45° |
| Channel: | 4/6/8/56CH | Function: | Auto Run,User-Defined |
| Material: | Tensile Aluminum | Size: | 978*141*179mm |
| EMC: | EMC/EMI | Weight: | 6.2kg |
| Highlight: | IP65 Waterproof Led Wall Washer,Outdoor Building Led Wall Washer,Aluminum Led Wall Washer |
||
Product Description
CT-002P IP65 Rated Stage LED Light Bar (Outdoor)
The CT-002P is a high-performance stage LED light bar built for outdoor applications, featuring a rugged die-cast aluminum housing with a sleek, modern design. Its IP65 rating ensures reliable operation in demanding environments.
Key Features:
14×10W RGBW 4-in-1 LEDs: Delivers vibrant colors and superior color mixing for dynamic lighting effects
Adjustable Beam Angles: 15 or 15° options for versatile lighting setups
Pixel Control Technology: Individual LED control for intricate patterns and stunning visual displays

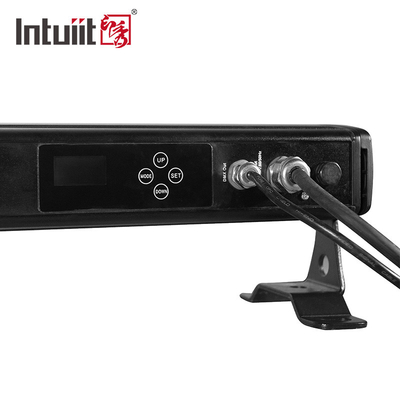

User-Friendly Interface: OLED display + 4-button touch panel for intuitive operation and real-time adjustments
16-Bit Precision Dimming: Enables smooth intensity transitions and fine-tuned brightness control
Ideal For: Stage productions, outdoor events, architectural lighting, and other applications requiring robust, weather-resistant illumination.
Combining professional-grade performance with durable construction, the CT-002P provides creative flexibility and reliability for all your outdoor lighting needs.
Technical Data
| Item No. | CT-002P |
| Light Source | 14Pcs*10W RGBW 4-in-1 LED |
| Max. Power | 85W |
| Work voltage | AC100-240V,50-60Hz |
| Beam angle | 15*45° |
| Luminous flux | 1087lm |
| Control Protocal | DMX512, RDM |
| DMX Channel | 4,6,8,56CH |
| IP Grade | IP65 |
| Certificate | CE&RoHS |
| Product's dimension | 978*141*179MM |
| Net Weight | 6.2kg |

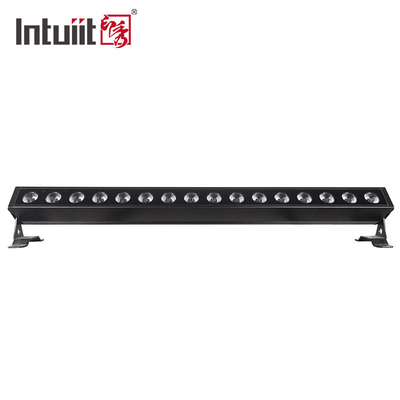

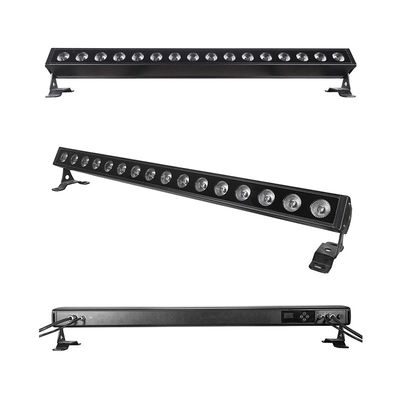

Appearance
Light Distribution Data

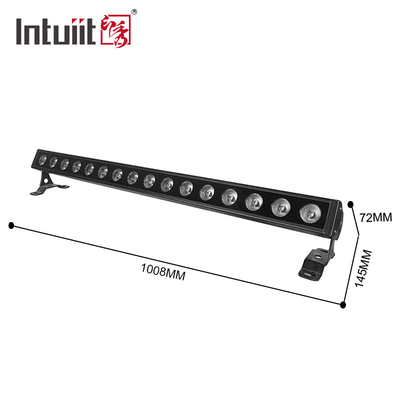

Product's Dimension
Installation Diagram
