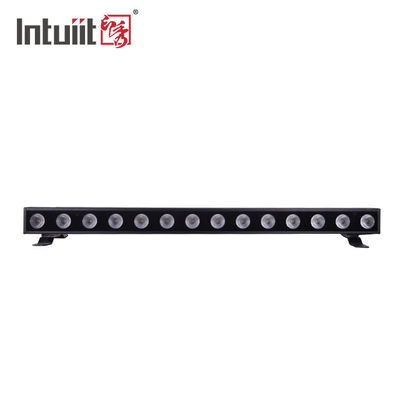

DMX512 14*10w RGBW 4in1 Pixel Led Wallwasher bar IP65 Waterproof Dj Wedding City Events Stage Outdoor Led Wash Light
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | CT-002P |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Inner box+ Master carton |
| Delivery Time: | 25-35days for mass order |
| Payment Terms: | T/T IN ADVANCE (30% Deposit, 70% balance payment before delivery) |
| Supply Ability: | 10000Pcs/month |
|
Detail Information |
|||
| Product Name: | Outdoor Wall Washer Pixel Control | Housing Color: | Black |
|---|---|---|---|
| Power: | 140W | Input Voltage: | AC100-240V, 60Hz/50Hz |
| IP Grade: | IP65 | Warranty: | 1 Years |
| CCT: | 3000K | Beam Angle: | 20°, 20*40° |
| Channel: | 4/6/8/56CH | Light Color: | RGBW |
| Material: | Aluminum Alloy | Size: | 978*141*179mm |
| Voltage: | AC110-240V | Weight: | 6.2kg |
Product Description
CT-002P IP65 Stage LED Light Bar – Premium Outdoor Lighting Performance
Engineered for demanding outdoor environments, the CT-002P Stage LED Light Bar combines rugged durability with sleek aesthetics. Its high-grade die-cast aluminum housing ensures long-lasting performance, while its modern design seamlessly integrates into professional stage setups, architectural lighting, and open-air events.
- Brilliant RGBW Color Mixing & Versatile Beam Angles
Powered by 14 high-output 10W RGBW 4-in-1 LEDs, the CT-002P delivers vibrant, true-to-life colors with flawless blending for dynamic lighting effects. Choose between 20° or 40° beam angles to tailor your lighting coverage—perfect for precise spot lighting or wider washes.
- Advanced Pixel Control for Creative Freedom
Unlock next-level creativity with individual pixel control, allowing you to program intricate patterns, chase effects, and immersive displays. Whether for live performances or permanent installations, this feature transforms your vision into stunning visual experiences.
- User-Friendly OLED Display & Intuitive Controls
An integrated OLED screen and four-button touch panel put full command at your fingertips. Adjust settings, switch modes, and fine-tune parameters effortlessly—no external controllers needed for quick, on-site adjustments.
16-Bit Precision Dimming for Seamless Transitions
Experience ultra-smooth dimming with 16-bit resolution, enabling flawless fades and precise brightness control for professional-grade lighting transitions.
- Built to Endure – IP65 Rated for Outdoor Reliability
Designed to resist dust, moisture, and harsh weather, the IP65-rated CT-002P guarantees consistent performance in open-air concerts, festivals, and architectural projects year-round.
- Why Choose the CT-002P?
1.Superior RGBW color mixing for vivid, customizable lighting
2.Pixel mapping for intricate effects and dynamic shows
3.Plug-and-play control with OLED interface
4.Robust IP65 construction for all-weather use
5.20° & 40° beam options for versatile applications
Ideal for stage productions, event lighting, and outdoor installations, the CT-002P blends cutting-edge technology with rugged dependability—empowering you to elevate any lighting environment.
Technical Data
| Item No. | CT-002P |
| Light Source | 14Pcs*10W RGBW 4-in-1 LED |
| Max. Power | 85W |
| Work voltage | AC100-240V,50-60Hz |
| Beam angle | 20Degree, 20*40D |
| Luminous flux | 1087lm |
| Control Protocal | DMX512, RDM |
| DMX Channels | 4,6,8,56CH |
| IP Grade | IP65 |
| Certificate | CE&RoHS |
| Product's dimension | 978*141*179MM |
| Net Weight | 6.2kg |
Appearance
Light Distribution Data
Product's Dimension
Installation Diagram
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
