Dmx512 Dimmable Pixel Linear Bar LED Wall Washer 16x5w Rgbw 4 In 1 Disco Stage Project Wash Light

Dmx512 Dimmable Pixel Linear Bar LED Wall Washer 16x5w Rgbw 4 In 1 Disco Stage Project Wash Light

Product Details:

Place of Origin: China
Brand Name: Intuiit
Certification: CE&RoHS
Model Number: TPL-128

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Packaging Details: Inner box+ Master Carton/ Flight case
Delivery Time: 25-30days
Payment Terms: T/T (30% deposit, 70% balance before delivery)
Supply Ability: 10000Pcs/Month
Get Best Price Contact Now

Detail Information

Type: LED Bar Light Max. Power: 82W
Input Voltage: AC100-240V, 60Hz/50Hz Light Source: RGBW 4-in-1 LED
IP Grade: IP65 Warranty: 1 Year
DMX Channel: 4/6/9CH Leds: 16
Highlight:

Linear Bar LED Wall Washer

,

Dmx512 LED Wall Washer

,

Disco Stage LED Wall Washer

Product Description

16x5w Rgbw 4in1 Disco Stage Events Project Wash Light Ip65 Dmx512 Dimmable Pixel Linear Bar LED Wall Washer



Outdoor stage led light bar 16Pcs*5W RGBW 4-in-1 LED with very excellent color mixing

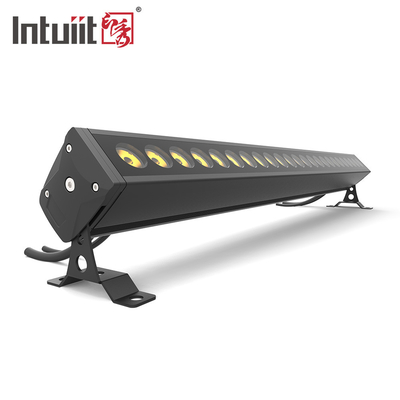

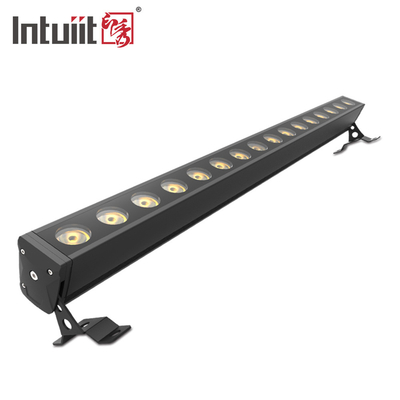

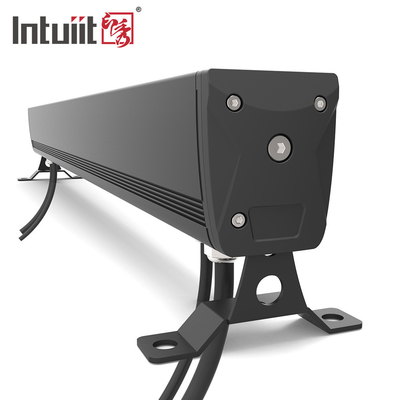

TPL-128 is IP65 rated Stage LED Light Bar, die-casting aluminum private tooling housing, very nice design, used 16Pcs*5W RGBW 4-in-1 LEDs, 20Degree and 40Degree beam angles for optional, OLED display with 4 touch buttons control panel, this stage led light bar with excellent color mixing, very smooth 16bit dimming. Many outdoor lighting projects used this stage led light bar.





1. Product Description



Brand:Guangzhou Dasen Lighting Corporation Type : TPL-128
Light source: LED Wire:rubber cable
Application : STAGE, OUTDOOR INDOOR Housing color:Black







Type: TPL-128
Rated power: 82W Rated Voltage: AC100-240V/60-50HZ
Control Mode: DMX512 Color: RGBW
Beam Angle : 40°,20°optional Cooling type: Natural convection cooling
Product Size : 1008*145*145mm IP Rate: IP65
N.W: 6.2KG Channel: 4,6,9CH
LED : Prolight RGBW 5W Permitted Ambient Temperatur: -20~+45





Optical Parameter

Dmx512 Dimmable Pixel Linear Bar LED Wall Washer 16x5w Rgbw 4 In 1 Disco Stage Project Wash Light 0







Product's Dimension

Dmx512 Dimmable Pixel Linear Bar LED Wall Washer 16x5w Rgbw 4 In 1 Disco Stage Project Wash Light 1









Installation Diagram

Dmx512 Dimmable Pixel Linear Bar LED Wall Washer 16x5w Rgbw 4 In 1 Disco Stage Project Wash Light 2







Effect Display

IP65 LED bar Lights  16* 5W   4 in 1rgbw Led Wall Washer for landscape lighting



FAQ

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable



Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days



Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.

Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
