IP65 DMX 14x10w RGBW 4in1 LED Outdoor Building Wash Waterproof Wall Washer Light Stage Lights
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | CT-002P |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Inner box+ Master carton |
| Delivery Time: | 25-35days for mass order |
| Payment Terms: | T/T IN ADVANCE (30% Deposit, 70% balance payment before delivery) |
| Supply Ability: | 10000Pcs/month |
|
Detail Information |
|||
| Product Name: | Outdoor Wall Washer Pixel Control | Housing Color: | Black |
|---|---|---|---|
| Power: | 140W | Input Voltage: | AC100-240V, 60Hz/50Hz |
| IP Grade: | IP65 | Warranty: | 1 Years |
| CCT: | 3000K | Beam Angle: | 20°, 20*40° |
| Channel: | 4/6/8/56CH | Light Color: | RGBW |
| Material: | Aluminum Alloy | Size: | 978*141*179mm |
| Voltage: | AC110-240V | Weight: | 6.2kg |
| Highlight: | 140W LED Outdoor Building Wash,Waterproof Wall Washer Light,IP65 LED Outdoor Building Wash |
||
Product Description

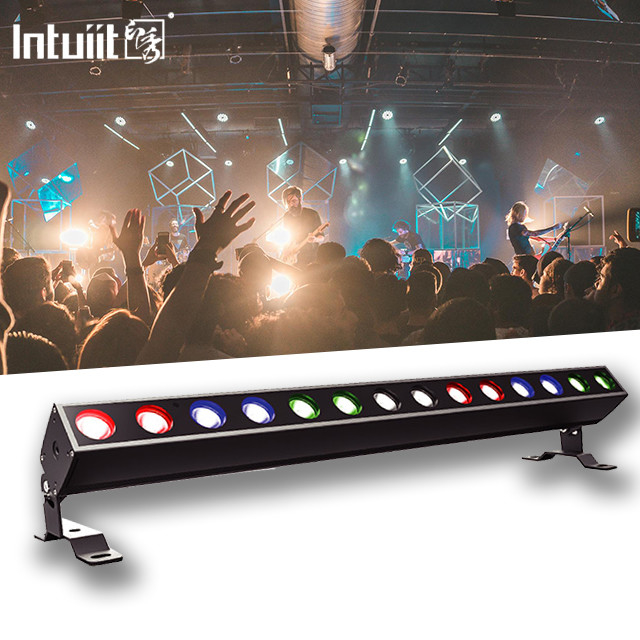

CT-002P Stage LED Light Bar
Overview
The CT-002P is an IP65-rated Stage LED Light Bar designed specifically for outdoor use. Its durable die-casting aluminum housing and sleek design make it ideal for various stage and outdoor lighting applications.
Specifications
- LEDs: 14 x 10W RGBW 4-in-1 LEDs
- Beam Angle Options: 20° and 40°
- IP Rating: IP65 (weatherproof and dustproof)
Key Features
- Vibrant Colors: Offers excellent color mixing capabilities for dynamic lighting effects.
- Pixel Control: Precise control over individual LEDs allows for stunning visual displays and intricate lighting patterns.

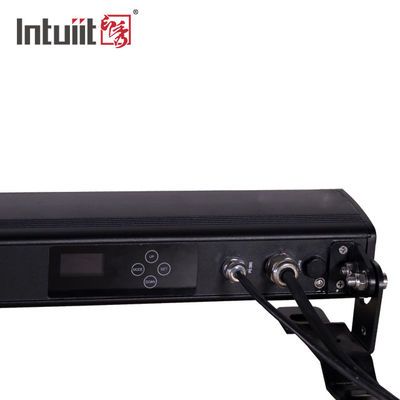

- User-Friendly Interface: Equipped with an OLED display and a control panel featuring four touch buttons for easy operation.
- 16-Bit Dimming: Provides smooth and precise control over lighting intensity, enabling seamless transitions.
- Durability: Designed to withstand outdoor conditions, ensuring reliability in challenging environments.
Applications
- Stage performances
- Outdoor events
- Architectural lighting projects
Conclusion
The CT-002P Stage LED Light Bar is a versatile and reliable lighting solution for outdoor applications. With its exceptional color mixing, precise control, and robust construction, it is an excellent choice for a wide range of lighting needs.
Technical Data
| Item No. | CT-002P |
| Light Source | 14Pcs*10W RGBW 4-in-1 LED |
| Max. Power | 85W |
| Work voltage | AC100-240V,50-60Hz |
| Beam angle | 20Degree, 20*40D |
| Luminous flux | 1087lm |
| Control Protocal | DMX512, RDM |
| DMX Channels | 4,6,8,56CH |
| IP Grade | IP65 |
| Certificate | CE&RoHS |
| Product's dimension | 978*141*179MM |
| Net Weight | 6.2kg |

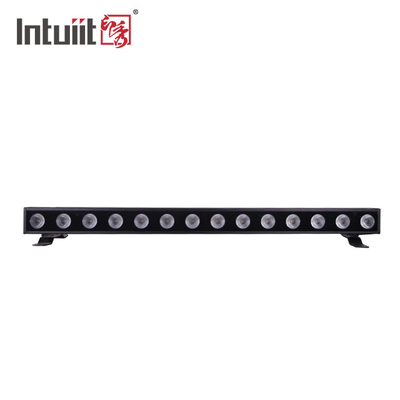

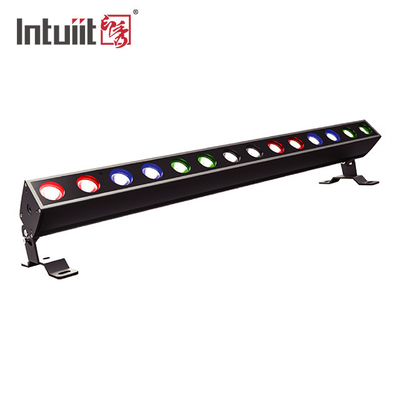

Appearance
Light Distribution Data

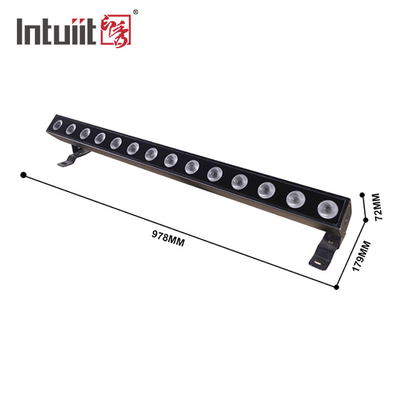

Product's Dimension
Installation Diagram
