7x15W LED Wall Washer Light LEDs RGBW Wash Light Bar For KTV Concert Building Wedding Party
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | CT-001P-0.5M |
Payment & Shipping Terms:
| Minimum Order Quantity: | MOQ 50Pcs |
|---|---|
| Packaging Details: | Inner box+ Master Carton |
| Delivery Time: | 25-35Days for mass order |
| Payment Terms: | T/T IN ADVANCE (30% deposit, 70% balance payment before delivery) |
| Supply Ability: | 10000Pcs/Month |
|
Detail Information |
|||
| Type: | LED Wall Wash Bar | Light Source: | RGBW 4-in-1 LED |
|---|---|---|---|
| Max. Power: | 100W | Input Voltage: | AC100-240V, 50-60Hz |
| IP Grade: | IP65 | Warranty: | 1 Year |
| Highlight: | KTV LED Wall Washer Light,RGBW LED Wall Washer Light,7x15W LED Wall Washer Light |
||
Product Description

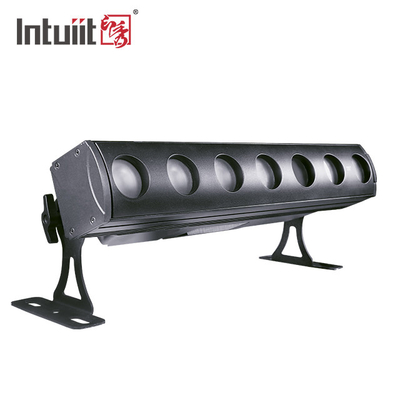

Professional Stage LED Light Bar – CT-001P-0.5M
Product Overview
The CT-001P-0.5M is a compact yet powerful LED light bar designed for professional stage and event lighting. With its durable construction, versatile beam control, and advanced features, it is perfect for stages, theaters, churches, and a variety of events.
Key Specifications
-
Model: CT-001P-0.5M
-
Length: 0.5 meters
-
LED Configuration: 7 x 15W RGBW 4-in-1 LEDs
-
Max Power: 100W
-
Beam Angles:
-
Narrow: 4.5°
-
Optional Diffusion Filters: 20°, 40°, 20°x40°
-
-
IP Rating: IP65 (fully waterproof and dustproof)
-
Housing Material: Die-cast magnesium alloy + tensile aluminum for durability and sleek design.
-
Control Options:
-
DMX & RDM compatible
-
5-pin (3-pin) Seetronic DMX and PowerCon in/out sockets for seamless connectivity.
-
-

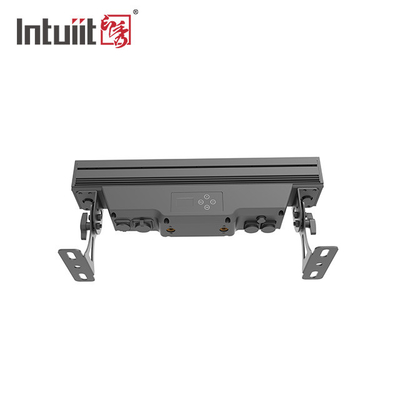

Display: OLED screen with 4-touch button control panel for intuitive operation.
-
Dimming: 16-bit smooth dimming for seamless transitions and dynamic lighting effects.
Key Features
-
Durable and Reliable: Built with high-quality materials to withstand demanding environments.
-
Vibrant Color Mixing: Delivers rich, accurate colors for stunning visual impact.
-
Versatile Beam Control: Easily adjust beam angles using optional diffusion filter lens kits.
-
User-Friendly Interface: OLED display and touch buttons simplify setup and operation.
Ideal Applications
-
Stage Productions: Perfect for concerts, live performances, and events.
-
Theater Performances: Enhances dramatic effects with dynamic lighting.
-
Church Services: Creates an immersive atmosphere for worship and special events.
-
Events and Venues: Ideal for weddings, parties, and corporate functions.
Why Choose the CT-001P-0.5M?
The CT-001P-0.5M combines compact design, powerful performance, and versatile functionality to meet the needs of professional lighting environments. Whether for stage productions, theater performances, or church services, this LED light bar delivers exceptional reliability and stunning visual effects.
Technical Data
| Item No. | CT-001P-0.5M |
| Light Source | 7Pcs*15W RGBW 4-in-1 LED |
| Max. Power | 100W |
| Work Voltage | AC100-240V, 50-60Hz |
| Beam angle | 4.5Degree,8Degree (20D,40D, 20*40D by diffusion filer) |
| Luminous flux | 1265lm |
| Control Protocol | DMX512,RDM |
| DMX Channels | 4,6,8,38CH |
| IP Grade | IP65 |
| Product's dimension | 511*150*237mm |
| Net weight | 6.2KG |
Lighting Distribution Data
Product's Dimension
Installation Diagram
