LED Wash 37x10W Zoom Stage Lighting DMX Beam Wash Moving Head Lights
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | XY-037 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Inner box + Master Carton |
| Delivery Time: | 25-35days for mass order |
| Payment Terms: | T/T IN ADVANCE (30% Deposit, 70% balance payment before delivery) |
| Supply Ability: | 10000Pcs/Month |
|
Detail Information |
|||
| Type: | Led Zoom Moving Head Light | LED Qty: | 37*10W RGBW 4-in-1 LED |
|---|---|---|---|
| Power: | 370W | Input Voltage: | AC100-240V, 50-60Hz |
| Lumen: | 4681lm | Warranty: | 1 Year |
| Color Tempreture: | 6500K | Beam Angle: | 5°-60° |
| DMX Channel: | 9CH、12CH、29CH | N.W.: | 13.8KG |
| Highlight: | DMX LED Wash Moving Head Lights,Zoom LED Wash Moving Head Lights,37x10W LED Wash Moving Head Lights |
||
Product Description

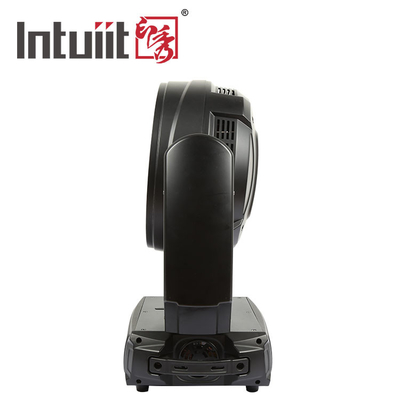

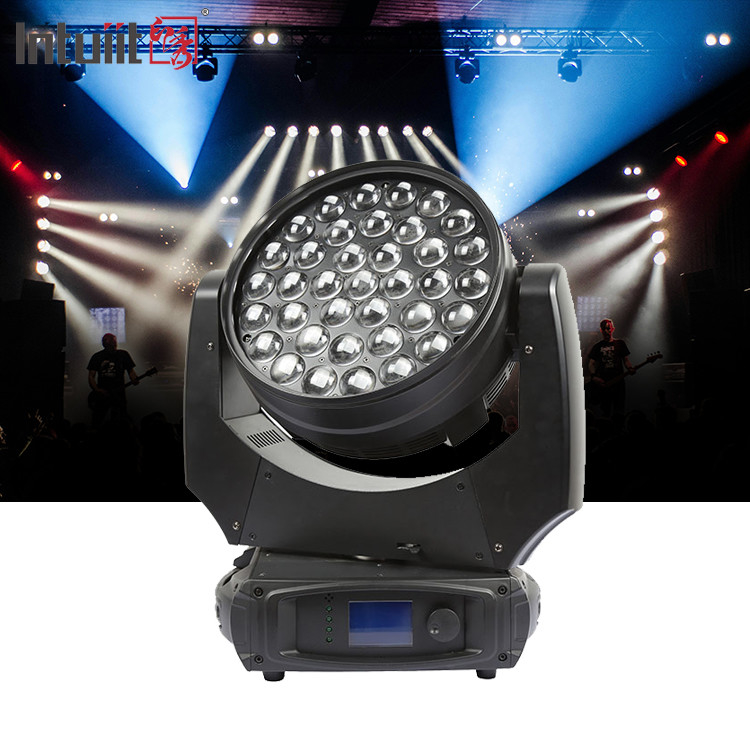

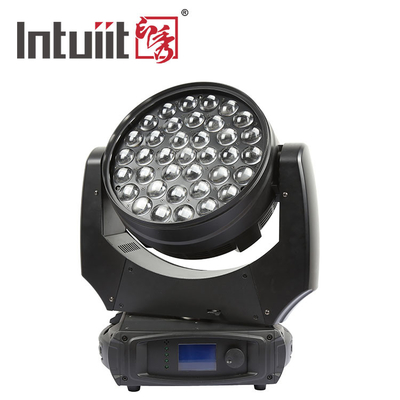

XY-037 LED Moving Head Wash Light
Overview
The XY-037 is a high-performance LED moving head wash light designed to deliver exceptional brightness, vibrant color mixing, and versatile beam control. Perfect for stage performances, events, and large venues, it combines advanced features with reliable performance to meet the demands of professional lighting setups.
Key Features
-
Powerful LED Configuration:
-
37 x 10W RGBW 4-in-1 LED emitters
-
Total power consumption: 370W
-
Exceptional color mixing and high brightness for stunning visual effects.
-
-
Zoom and Beam Control:
-
Wide zoom range: 5° to 60°
-
Adjustable LED ring control for versatile beam shaping and coverage.
-
-
Smooth Movement and Dynamic Effects:
-
Pan range: 540°
-
Tilt range: 270°
-
Rich color effects, including linear dimming and selectable dimming curves.
-
-
Efficient Cooling System:
-
High-efficiency, low-noise cooling and movement control systems for reliable operation.
-
-
Advanced Control and Connectivity:
-

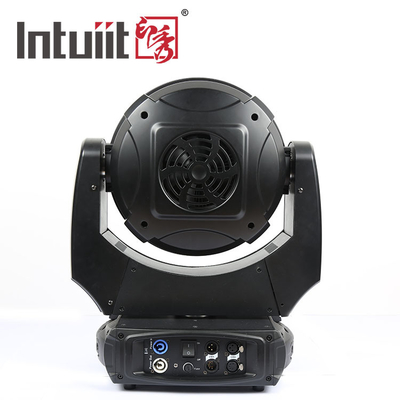

DMX control via 3-pin and 5-pin XLR sockets
-
PowerCon in/out for easy daisy-chaining
-
Universal auto-switching power supply (AC100-240V) for global compatibility.
-
Applications
The XY-037 is a versatile lighting solution suitable for a wide range of applications, including:
-
Stage Performances: Perfect for concerts, live shows, and theatrical productions.
-
Stage Rim Lighting: Enhances stage aesthetics with vibrant washes of color.
-
Auditoriums and Large Venues: Provides powerful illumination for expansive spaces.
-
Banquet Halls and Bars: Creates a dynamic and engaging atmosphere for events.
-
Rental Companies: A reliable and adaptable choice for rental setups.
Why Choose the XY-037
With its powerful LED output, flexible beam control, and smooth movement capabilities, the XY-037 is designed to elevate any lighting setup. Whether you're lighting a stage, enhancing an event, or providing rental solutions, this moving head wash light delivers professional-grade performance and stunning visual impact.
Technical Data
| Item No. | XY-037 |
| Light Source | 37Pcs*10W RGBW 4-in-1 LED |
| Max. Power | 370W |
| Input voltage | AC100-240V, 50/60Hz |
| Beam angle | 5-60º |
| Lumen | 4681lm |
| Control Protocol | DMX512 |
| DMX Channels | 9,12,29CH |
| Pan/Tilt | Pan 540º, Tilt 270º |
| IP Grade | IP20 |
| Product's Dimension | 439*249*510mm |
| Net Weight | 13.8KG |
Light Distribution Data
Product's Dimension
Installation Diagram

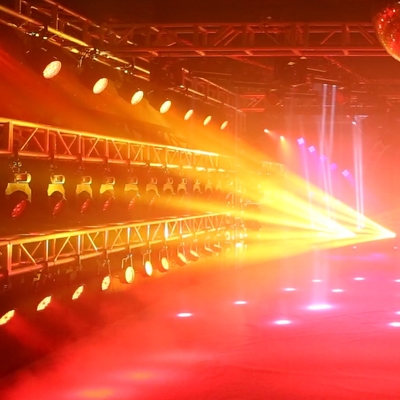

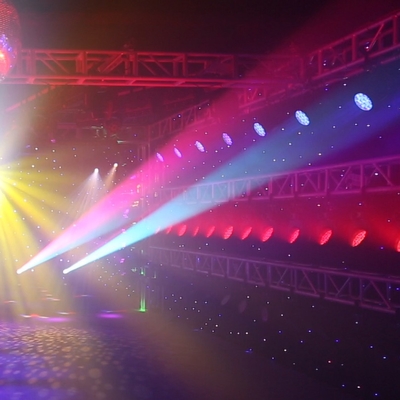

Effect shows
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
