IP65 Outdoor Spotlight Waterproof Wall Lamp Narrow Beam Angle Flood Lamp 15W Super Bright Projector Lights
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&Rohs |
| Model Number: | YX-003P |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Carton、flight case |
| Delivery Time: | 30~35 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| Type: | Stage Par Light | LED: | 15W 4-in-1 RGBW |
|---|---|---|---|
| Power: | 20W | Input Voltage: | AC100V-240V |
| IP Rate: | IP65 | Beam Angle: | 4.5°、20°、40° |
| Control Protocol: | DMX512、RDM | DMX Channel: | 4/6/10CH |
| Lumen: | 3261lm | Drive Current: | 900mA |
| Highlight: | IP65 Outdoor Spotlight,15W Outdoor Spotlight,Waterproof Wall Lamp Spotlight |
||
Product Description
Specification
| Item number | YX-003P | |||||
| Product Dimension | 165*161*193mm | |||||
| Inner box | 295*200*220mm | |||||
| Outer box | 625*320*475mm(6pcs/ctn) | |||||
| Weight | N.W 1.96kg /G.W 3.6kg | |||||

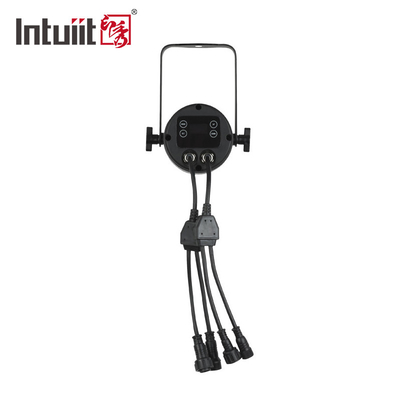

| Connector | DMX in/out,power in/out | |||||
| Power Voltage | AC100V ~ 240V,60/50Hz | |||||
| Power Consumption | 20W | 19W@110V | 20W@240V | |||
| Power linking | 20pcs@110V | 40pcs@240V | ||||
| LED | 4-IN-1 RGBW | |||||
| Dimming | 0-100%(13-bit) | Strobe | 0-20Hz | |||
| Beam angle | 4.5degree | |||||
| DMX channel | 4,6,10CHs | |||||
| IP | IP65 | |||||
| Working Tempreture | -20 ~ +45℃ | |||||
![]()
![]()
![]()

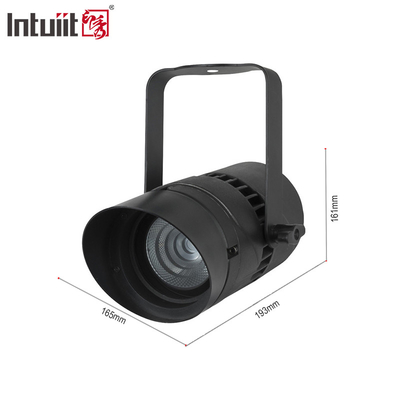

Dimension sheet:
![]()
Installation:
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
