60x12W Par Light Stage Lighting Rgbw Color Stage Equipment Led Par Light
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&Rohs |
| Model Number: | MYLED-131 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Carton、flight case |
| Delivery Time: | 30~35 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| L Ig Ht So Urce: | 60x12W 4-in-1 RGBW | Lumen: | 12060lm |
|---|---|---|---|
| Beam Angle: | 20°/ 30°/ 40°Optional | Input Voltage: | AC100V-240V |
| Power: | 300W | Drive Current: | 500mA |
| IP Grade: | IP65 | ||
| Highlight: | led par light stage equipment,60x12W par light,rgbw color par light |
||
Product Description

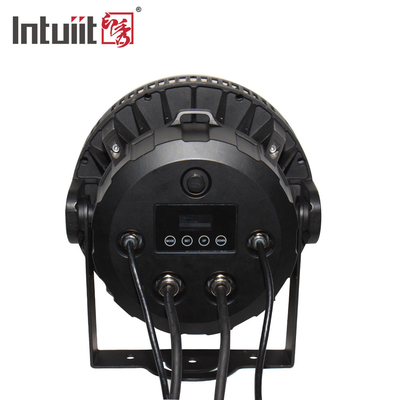

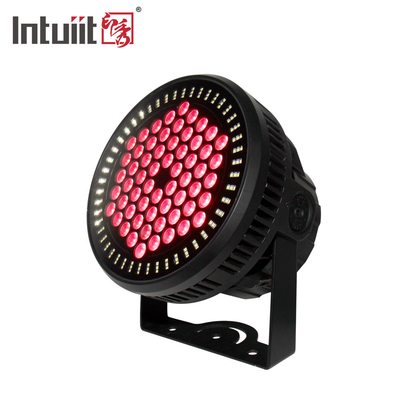

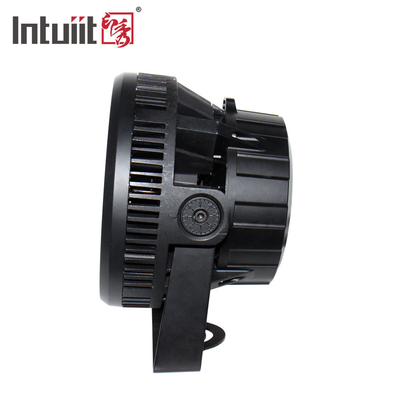

MYLED-131: Outdoor LED Par Light
The MYLED-131 is a powerful LED par light designed specifically for outdoor architectural and landscape lighting applications. With its robust construction and IP65 waterproof rating, it ensures durability and reliability in outdoor environments.
Key Features
Lighting Components
- RGBW LED: Offers excellent brightness and vibrant color mixing for dynamic lighting effects in outdoor spaces.
- Strobe SMD Lights: Incorporated in a round configuration to enhance versatility, enabling the creation of various visual atmospheres.
Beam Angle
- 20-Degree Beam Angle: Ideal for focused and precise output, perfect for highlighting specific areas or objects.
Accessories
- Barndoors: Included to control and shape the light beam, restricting output and preventing unwanted spill, providing greater control over lighting design.
Operating Modes
The MYLED-131 supports various operating modes, including:
- Master/Slave
- Built-in Programs
- Auto Running
- DMX Control
These modes offer flexibility for different lighting requirements and setups.
Compliance and Production
- Certifications: CE and RoHS certified, ensuring compliance with safety and environmental standards.
- Stable Production Line: Produced in a stable environment, enhancing consistency and reliability.
Specification
| Product name | 300W Outdoor LED Par | ||||||
| Item number | MYLED-131 | ||||||
| physical property | Product Measurement | 310mm*271mm*200mm | |||||
| Inner Packing Size | 375*345*290mm | ||||||
| Outer Packing Size | 710*395*315mm | ||||||
| Quantity | 2pcs/ctn | ||||||
| N.W. | 7.98Kg | ||||||
| G.W. | 9.85Kg | ||||||
| Housing Material | Die casting Aluminium | ||||||
| Color | Black | ||||||
| Device Linking | Power In/Out,DMX In/Out | ||||||
| Electric Parameters | Input Voltage Range | AC100-240V,60/50HZ | |||||
| Max Power | 380W/AC110V | 360W/240V | |||||
| Power Factor | 0.998/AC110V | 0.981/A240V | |||||
| Input Current | 3.7A/AC110V | 1.5A/AC240V | |||||
| Power Linking | 3pcs/AC110V | 8pcs/AC240V | |||||
| Optical System | LED Light Source | RGBW | |||||
| Drive Current | 500MA | ||||||
| Dimming | 0-100% | ||||||
| Strobe | 0-20Hz | ||||||
| Light Angle | Beam angle | 20° | Spot angle | 45° | |||
| Max Lumen | 9602 lm | ||||||
| Control | Data Protocol | DMX512 | |||||
| DMX Channel | 7/11/18/28/32/39CH | ||||||
| Safety | IP Rate | IP65 | |||||
| Working Tempreture | -20°～40° | ||||||
| Lux | Distance | F | R | G | B | W1 | W1+W2 |
| 1M | 60000 | 15300 | 24200 | 4152 | 25100 | 25700 | |
| 2M | 15300 | 4100 | 7400 | 1220 | 7010 | 7430 | |
| 3M | 6900 | 1830 | 3100 | 555 | 3130 | 3160 | |
| 4M | 3680 | 960 | 1730 | 320 | 1780 | 1880 | |
| 5M | 2480 | 691 | 1148 | 216 | 1190 | 1240 | |
Dimension sheet:
Installation:
Effect Images:
