LED Facade Outdoor RGB DMX512 14X10W Linear LED Wall Washer Light LED Wall Washer For Project
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | CT-002P |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Inner box+ Master carton |
| Delivery Time: | 25-35days for mass order |
| Payment Terms: | T/T IN ADVANCE (30% Deposit, 70% balance payment before delivery) |
| Supply Ability: | 10000Pcs/month |
|
Detail Information |
|||
| Product Name: | Outdoor Wall Washer Pixel Control | Housing Color: | Black |
|---|---|---|---|
| Power: | 140W | Input Voltage: | AC100-240V, 60Hz/50Hz |
| IP Grade: | IP65 | Warranty: | 1 Years |
| CCT: | 3000K | Beam Angle: | 20°, 20*40° |
| Channel: | 4/6/8/56CH | Light Color: | RGBW |
| Material: | Aluminum Alloy | Size: | 978*141*179mm |
| Voltage: | AC110-240V | Weight: | 6.2kg |
| Highlight: | Project LED Wall Washer Light,14X10W LED Wall Washer Light,RGB DMX512 LED Wall Washer Light |
||
Product Description
Key Features of the CT-002P LED Light Bar
Durability and Rating
- IP65 Rated: Designed for outdoor use, resistant to dust and water.
- Material: Constructed with robust die-cast aluminum housing.
Lighting Specifications
- LED Configuration: Equipped with 14 x 10W RGBW 4-in-1 LEDs.
- Color Mixing: Offers vibrant colors and excellent color mixing capabilities.
- Beam Angles: Available in 20-degree and 40-degree options for versatile lighting setups.
Control Features
- Pixel Control: Allows for precise control over individual LEDs, enabling intricate lighting patterns.

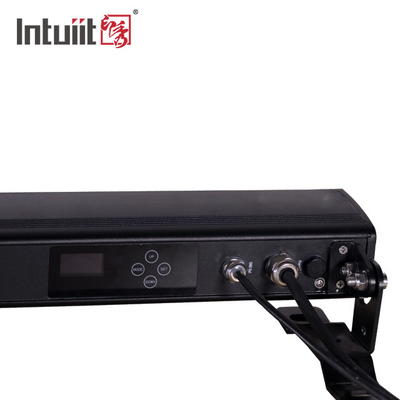

- User Interface: Comes with an OLED display and touch button controls for intuitive operation.
Dimming Capabilities
- 16-bit Dimming: Provides smooth and accurate control of lighting intensity.
Application Versatility

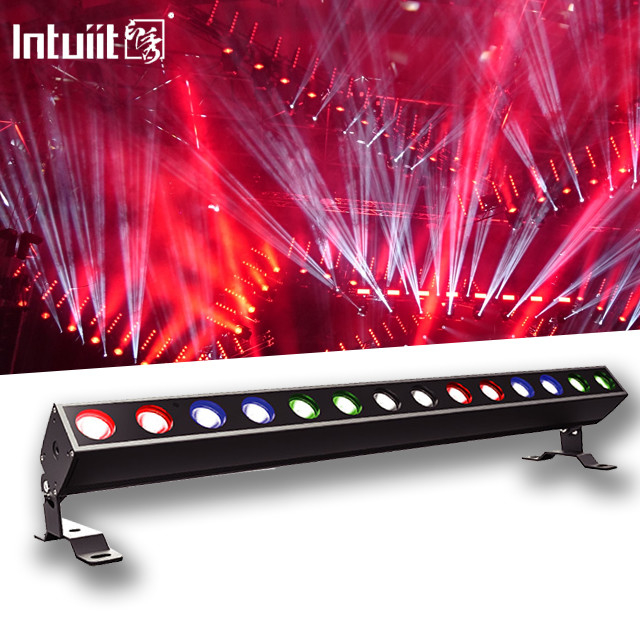

- Suitable for stage performances, outdoor events, architectural lighting, and more.
Technical Data
| Item No. | CT-002P |
| Light Source | 14Pcs*10W RGBW 4-in-1 LED |
| Max. Power | 85W |
| Work voltage | AC100-240V,50-60Hz |
| Beam angle | 20Degree, 20*40D |
| Luminous flux | 1087lm |
| Control Protocal | DMX512, RDM |
| DMX Channels | 4,6,8,56CH |
| IP Grade | IP65 |
| Certificate | CE&RoHS |
| Product's dimension | 978*141*179MM |
| Net Weight | 6.2kg |

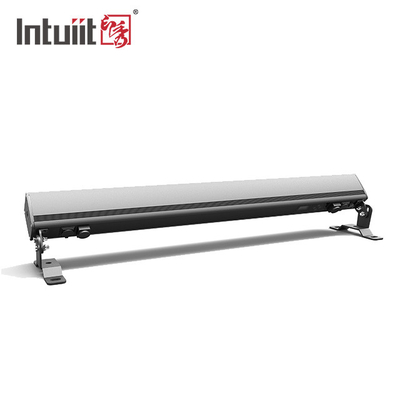

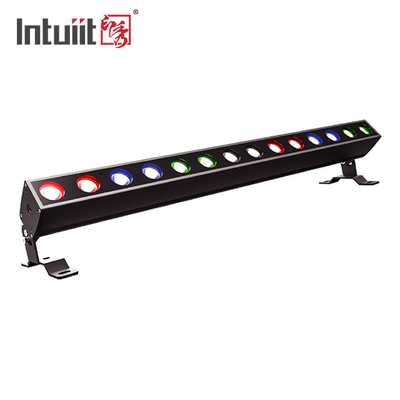

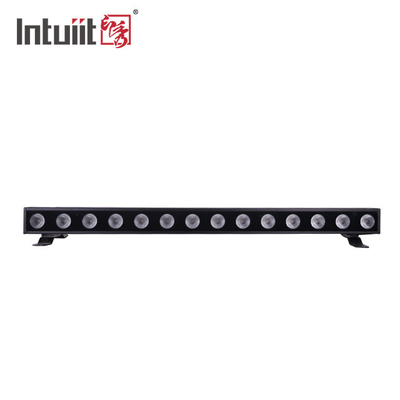

Appearance
Light Distribution Data

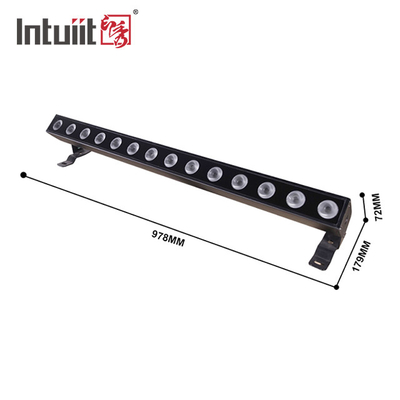

Product's Dimension
Installation Diagram
Want to Know more details about this product
