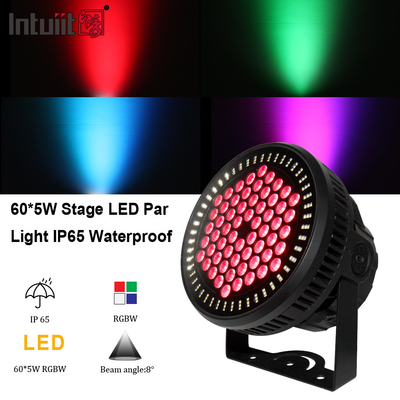

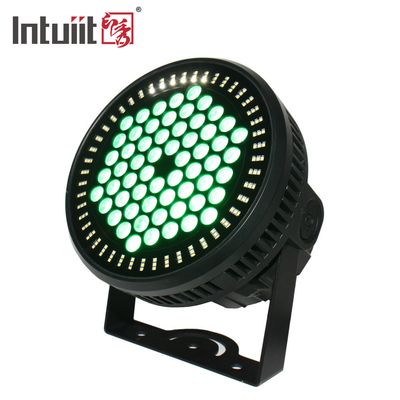

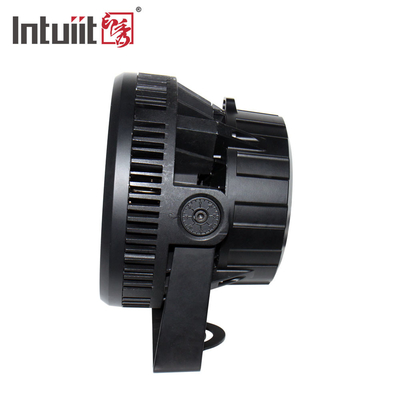

60*12W Rgbw 4In1 Led Par Can Light 60Pcs Party Dmx Outdoor Dj Led Par Light
Product Details:
Place of Origin: | China |
Brand Name: | Intuiit |
Certification: | CE&Rohs |
Model Number: | MYLED-131 |
Payment & Shipping Terms:
Minimum Order Quantity: | negotiable |
---|---|
Packaging Details: | Carton、flight case |
Delivery Time: | 30~35 days |
Payment Terms: | T/T |
Supply Ability: | 10000pcs/month |
Detail Information |
|||
L Ig Ht So Urce: | 60x12W 4-in-1 RGBW | Lumen: | 12060lm |
---|---|---|---|
Beam Angle: | 20°/ 30°/ 40°Optional | Input Voltage: | AC100V-240V |
Power: | 300W | Drive Current: | 500mA |
IP Grade: | IP65 | ||
Highlight: | 60Pcs Led Par Can Light,Outdoor Dj Led Par Light,Outdoor Led Par Can Light |
Product Description

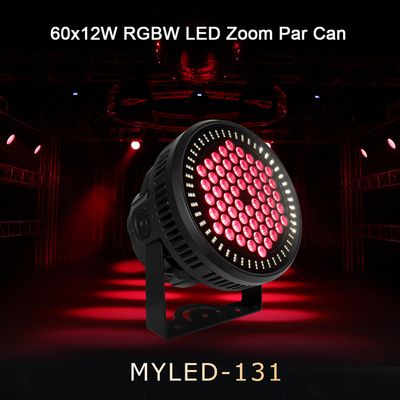

MYLED-131: Outdoor LED Par Light
The MYLED-131 is a powerful LED par light, specifically designed for outdoor architectural and landscape lighting applications. Its robust construction and IP65 waterproof rating ensure durability and reliability in outdoor environments.
Key Features
Lighting Components
- RGBW LED: Provides excellent brightness and vibrant color mixing capabilities, allowing for dynamic lighting effects in outdoor spaces.
- Strobe SMD Lights: Incorporated in a round configuration, these strobe lights enhance versatility, enabling the creation of various visual atmospheres.
Beam Angle
- 20-Degree Beam Angle: This popular choice for landscape lighting offers focused and precise output, ideal for highlighting specific areas or objects.
Accessories
- Barndoors: Included to control and shape the light beam, barndoors restrict output and prevent unwanted spill, offering greater control over your lighting design.
Operating Modes
- Flexible Modes: The MYLED-131 supports various operating modes, including:
- Master/Slave
- Built-in Programs
- Auto Running
- DMX Control
These modes provide flexibility for different lighting requirements and setups.
Compliance and Production
- Certifications: The fixture is CE and RoHS certified, ensuring compliance with safety and environmental standards.
- Stable Production Line: Produced in a stable production environment, enhancing consistency and reliability.
Conclusion
Overall, the MYLED-131 is a professional-grade LED par light tailored for outdoor architectural and landscape lighting. With its powerful performance, waterproof design, and versatile operating modes, it is an excellent choice for users seeking high-quality outdoor stage lighting solutions.
Specification
Product name | 300W Outdoor LED Par | ||||||
Item number | MYLED-131 | ||||||
physical property | Product Measurement | 310mm*271mm*200mm | |||||
Inner Packing Size | 375*345*290mm | ||||||
Outer Packing Size | 710*395*315mm | ||||||
Quantity | 2pcs/ctn | ||||||
N.W. | 7.98Kg | ||||||
G.W. | 9.85Kg | ||||||
Housing Material | Die casting Aluminium | ||||||
Color | Black | ||||||

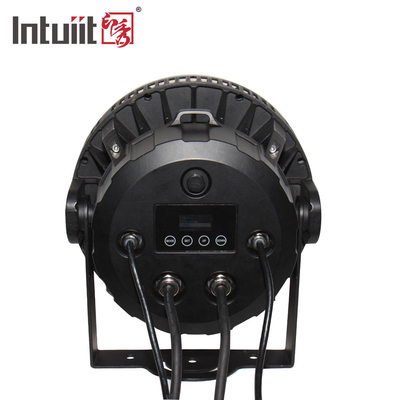

Device Linking | Power In/Out,DMX In/Out | ||||||
Electric Parameters | Input Voltage Range | AC100-240V,60/50HZ | |||||
Max Power | 380W/AC110V | 360W/240V | |||||
Power Factor | 0.998/AC110V | 0.981/A240V | |||||
Input Current | 3.7A/AC110V | 1.5A/AC240V | |||||
Power Linking | 3pcs/AC110V | 8pcs/AC240V | |||||
Optical System | LED Light Source | RGBW | |||||
Drive Current | 500MA | ||||||
Dimming | 0-100% | ||||||
Strobe | 0-20Hz | ||||||
Light Angle | Beam angle | 20° | Spot angle | 45° | |||
Max Lumen | 9602 lm | ||||||
Control | Data Protocol | DMX512 | |||||
DMX Channel | 7/11/18/28/32/39CH | ||||||
Safety | IP Rate | IP65 | |||||
Working Tempreture | -20°~40° | ||||||
Lux | Distance | F | R | G | B | W1 | W1+W2 |
1M | 60000 | 15300 | 24200 | 4152 | 25100 | 25700 | |
2M | 15300 | 4100 | 7400 | 1220 | 7010 | 7430 | |
3M | 6900 | 1830 | 3100 | 555 | 3130 | 3160 | |
4M | 3680 | 960 | 1730 | 320 | 1780 | 1880 | |
5M | 2480 | 691 | 1148 | 216 | 1190 | 1240 |
Dimension sheet:
Installation:

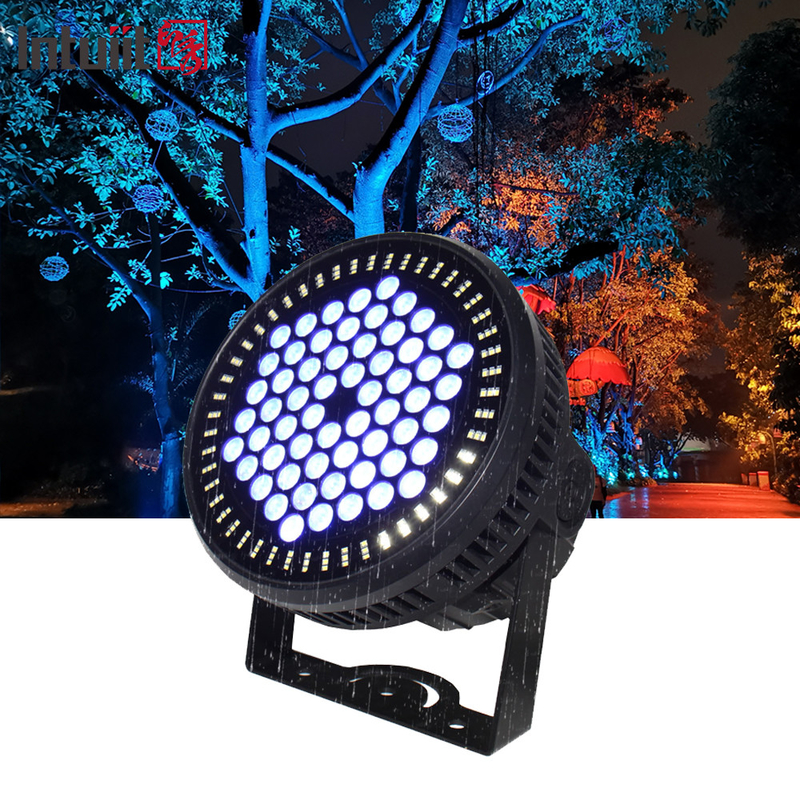

Effect Images:
