High Power 200w RGBW COB Waterproof Par Can Spot Stage Light For Bar Disco Wedding
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&Rohs |
| Model Number: | TPL-125 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiated |
|---|---|
| Packaging Details: | Carton、flight case |
| Delivery Time: | 30~35 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| Type: | Stage Par Light | Light Source: | LED |
|---|---|---|---|
| Lamp Power: | 200W | Input Voltage: | AC100V-240V |
| IP Rate: | IP65 | Warranty: | 1-year |
| Highlight: | Waterproof Par Can Spot Stage Light,COB Par Can Spot Stage Light |
||
Product Description
TPL-125 Stage Par Light Overview
The TPL-125 is a high-performance stage par light from the COB series, designed specifically for professional applications such as theaters and television studios. Below are the key features and specifications:
Key Features and Specifications
High Brightness and Color Quality
- 200W RGBW LED: Delivers high brightness with excellent color quality.
- High Color Rendering Index (CRI): Ensures accurate color reproduction.
Durable Construction
- Material: Made from high-temperature-resistant aluminum die-casting.
- Sturdy Design: Built to withstand demanding stage environments.
Optimal Heat Dissipation
- Cooling Fan: Integrated cooling system to efficiently dissipate heat, preventing overheating and maintaining performance.
Energy Efficient and Low Noise
- Low Power Consumption: Designed for energy efficiency.
- Quiet Operation: Produces minimal noise, suitable for noise-sensitive environments.
Wide Range of Features and Options
- Reflector Cup: Comes with a 60-degree reflector cup.
- Optional Diffusers: Available in 15-degree and 30-degree angles for customizable light beam adjustments.
Versatile Operating Modes
- Modes Supported: Includes master/slave, sound activation, built-in programs, auto running, and DMX control.
- Flexibility: Choose the most suitable mode for various lighting requirements.
Compliance and Certifications
- CE and RoHS Certified: Complies with European safety and environmental standards, ensuring regulatory conformity for professional use.
DMX Compatibility

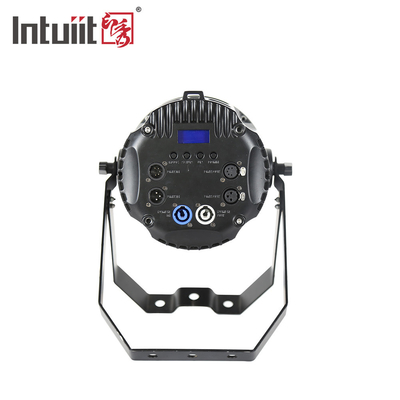

- Connector Types: Equipped with both 3-pin and 5-pin DMX inputs and outputs for easy integration into existing setups.
Conclusion
The TPL-125 stage par light is engineered for high-quality performance, versatility, and reliability in professional settings. Its exceptional color quality, robust construction, extensive features, and DMX compatibility make it an ideal choice for environments where precise control and excellent lighting are essential.
Specification
| feature | product name | 200W RGBW Indoor COB Par | |||||
| physical feature | Product Dimention | 269*203.3*437mm | |||||
| Inner box | 500*300*270mm | ||||||
| Outer box | 525mm*625mm*575mm | ||||||
| Qty/ctn | 4pcs/ctn | ||||||
| Net weight | 4.8Kg | ||||||
| Gross weight | 5.9Kg | ||||||
| Housing | aluminium die casting | ||||||
| Device Connection | DMX in/out,power in/out | ||||||
| Heat-dissipating method | Fan | ||||||
| electric parameter | Power voltage | 100-240V AC,50-60Hz | |||||
| Power consumption | 210W | 211.5W @110V | 203.8W @240V | ||||
| Power factor | 0.995 @110V | 0.968 @240V | |||||
| Input current | 2.124A @110V | 0.876A @240V | |||||
| Power connection | 3pcs @110V | 8pcs @240V | |||||
| optical system | LED | TX 200W RGBW 4-in-1 | |||||
| drive current | 1.9A | ||||||
| Dimming | 0-100% | ||||||
| Strobe frequency | 0-20Hz | ||||||
| Beam angle | 60°/30°/15° | ||||||
| maximum luminous flux | 60° is 8308 / 30° is 6744 /15° is 6263 | ||||||
| control | Contorl protocol | DMX512 | |||||
| DMX channel | 4,6,8 CHs | ||||||
| Operation | LCD | ||||||
| Working mode | Auto running, built-in program,DMX512, master/slave,static color | ||||||
| safety | IP Grade | IP20 | |||||
| Working tempreture | -20 ～ +40℃ | ||||||
| else | Lux data | 1m (lux) | 2m (lux) | 3m (lux) | 4m (lux) | 5m (lux) | |
| R | 1441 | 410 | 200 | 119 | 79 | ||
| G | 2627 | 746 | 360 | 216 | 143 | ||
| B | 550 | 161 | 75 | 45 | 30 | ||
| W | 2761 | 803 | 386 | 235 | 153 | ||
| RGBW | 6400 | 2036 | 960 | 577 | 378 | ||
| spares | User Manual , power line | ||||||
| Additional Features | temperature protection | ||||||

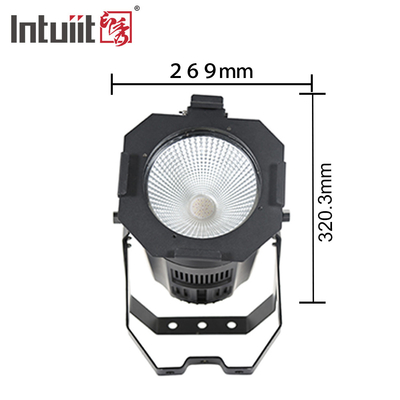

Dimension sheet:

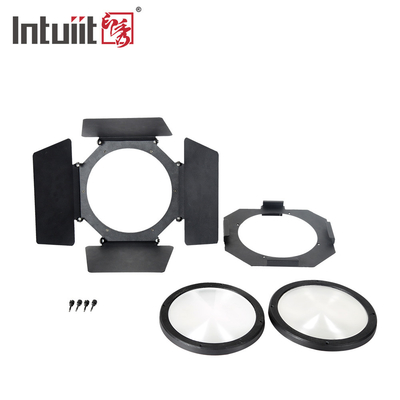

Accessories:
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A:Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A:Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
