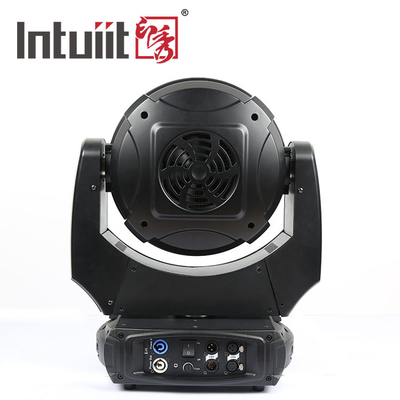

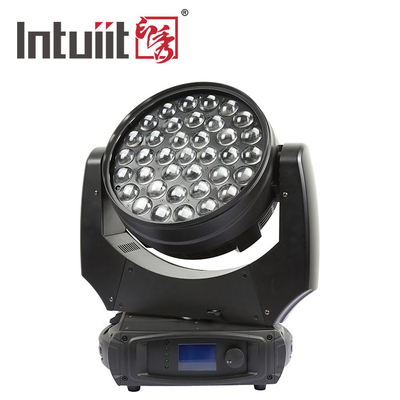

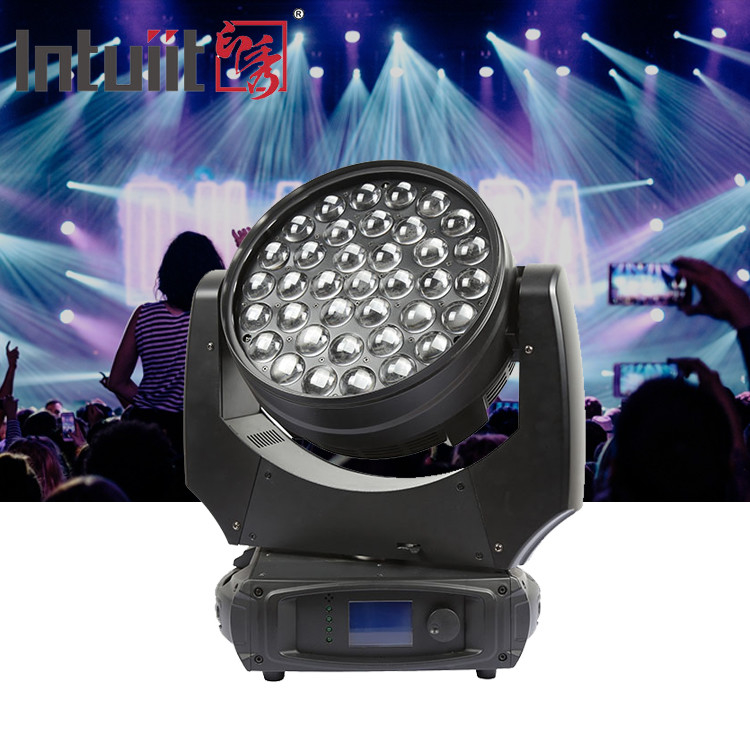

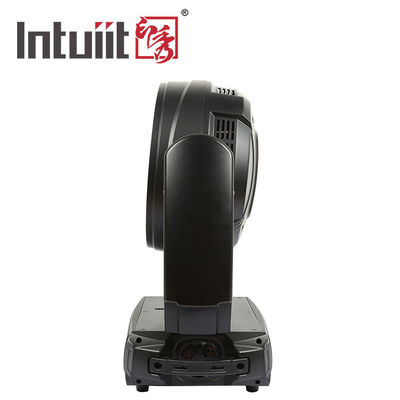

Professional 37x10W High Power Wash Moving Head Light For Concert Stage Lights Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | XY-037 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Inner box + Master Carton |
| Delivery Time: | 25-35days for mass order |
| Payment Terms: | T/T IN ADVANCE (30% Deposit, 70% balance payment before delivery) |
| Supply Ability: | 10000Pcs/Month |
|
Detail Information |
|||
| Type: | Led Zoom Moving Head Light | LED Qty: | 37*10W RGBW 4-in-1 LED |
|---|---|---|---|
| Power: | 370W | Input Voltage: | AC100-240V, 50-60Hz |
| Lumen: | 4681lm | Warranty: | 1 Year |
| Color Tempreture: | 6500K | Beam Angle: | 5°-60° |
| DMX Channel: | 9CH、12CH、29CH | N.W.: | 13.8KG |
| Highlight: | Concert Stage Lights Moving Head,37x10W Moving Head Light,Professional Moving Head Light |
||
Product Description
XY-037 LED Moving Head Wash Light Overview
Key Features
LED Configuration and Power
- Emitters: 37 x 10W RGBW 4-in-1 LED emitters
- Power Consumption: Total of 370W
- Color Mixing: Provides excellent color mixing and high brightness
Zoom and Beam Control
- Zoom Range: 5° to 60° wide zoom range
- Adjustable LED Ring Control: Allows for versatile beam shaping and coverage
Movement and Effects
- Pan/Tilt Range:
- Pan: 540°
- Tilt: 270°
- Color Effects: Rich color effects, including linear dimming and selectable dimming curves
- Cooling System: High efficiency, low noise cooling and movement control systems
Control and Connectivity
- DMX Control: Available via 3-pin and 5-pin XLR sockets
- Power Connections: PowerCon in/out for daisy-chaining
- Power Supply: Universal auto-switching power supply (AC100-240V)
Applications
- Stage Performance: Ideal for concerts and live shows
- Stage Rim Light: Enhances stage aesthetics
- Auditoriums: Perfect for large venue lighting
- Banquet Halls & Bars: Creates a vibrant atmosphere for events
- Rental: Versatile solution for rental companies
Summary
The XY-037 LED moving head wash light is a high-performance, feature-rich lighting solution, designed for versatility in professional stage and event applications. With its powerful output, wide zoom range, and advanced control capabilities, it stands out as an excellent choice for lighting designers and event organizers.
Technical Data
| Item No. | XY-037 |
| Light Source | 37Pcs*10W RGBW 4-in-1 LED |
| Max. Power | 370W |
| Input voltage | AC100-240V, 50/60Hz |
| Beam angle | 5-60º |
| Lumen | 4681lm |
| Control Protocol | DMX512 |
| DMX Channels | 9,12,29CH |
| Pan/Tilt | Pan 540º, Tilt 270º |
| IP Grade | IP20 |
| Product's Dimension | 439*249*510mm |
| Net Weight | 13.8KG |
Light Distribution Data
Product's Dimension
Installation Diagram

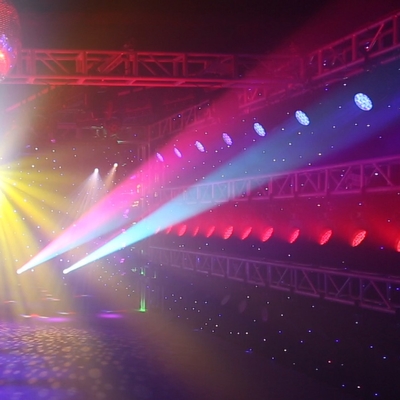

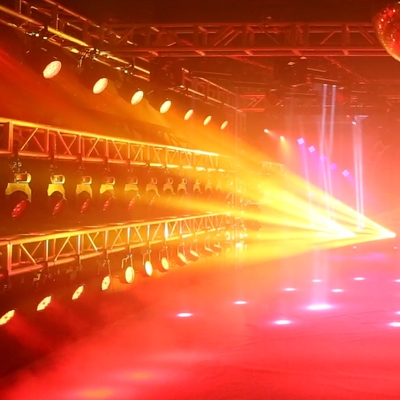

Effect shows
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
