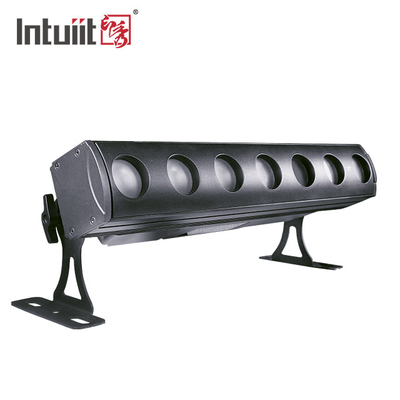

IP65 Waterproof 0.5m Long Pixel Bar Light RGBW 4in1 7x15W High Brightness LED
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | CT-001P-0.5M |
Payment & Shipping Terms:
| Minimum Order Quantity: | MOQ 50Pcs |
|---|---|
| Packaging Details: | Inner box+ Master Carton |
| Delivery Time: | 25-35Days for mass order |
| Payment Terms: | T/T IN ADVANCE (30% deposit, 70% balance payment before delivery) |
| Supply Ability: | 10000Pcs/Month |
|
Detail Information |
|||
| Type: | LED Wall Wash Bar | Light Source: | RGBW 4-in-1 LED |
|---|---|---|---|
| Max. Power: | 100W | Input Voltage: | AC100-240V, 50-60Hz |
| IP Grade: | IP65 | Warranty: | 1 Year |
| Highlight: | 0.5m Pixel Bar Light,IP65 Pixel Bar Light,RGBW Pixel Bar Light |
||
Product Description
Professional Stage LED Light Bar Overview
Product Specifications
- Model: CT-001P-0.5M
- Length: 0.5 meters
- LED Type: 7 x 15W RGBW 4-in-1
- Max Power: 100W
- Beam Angles:
- Narrow: 4.5 degrees
- Optional Diffusion Filters: 20 degrees, 40 degrees, 20x40 degrees
- IP Rating: IP65 (waterproof)
- Housing Material: Die-casting magnesium alloy + tensile aluminum
- Control:
- DMX & RDM compatible
- 5-pin (3-pin) Seetronic DMX and PowerCon in/out sockets
- Display: OLED with 4-touch button control panel
- Dimming: 16-bit smooth dimming
- Applications: Suitable for stages, theaters, churches, and various events
Key Features
- Durable Design: Built with high-quality materials for longevity and performance.
- Excellent Color Mixing: Produces vibrant colors for stunning visual effects.
- Versatile Beam Control: Change beam angles easily with diffusion filter lens kits.
- User-Friendly Interface: The OLED display and touch buttons simplify operation and setup.
Ideal Use Cases
- Stage Productions: Enhances lighting design for concerts and performances.
- Theater Performances: Provides dynamic lighting for dramatic effects.
- Church Services: Creates an engaging atmosphere for worship and events.
This LED light bar is designed to meet the demands of professional lighting environments, ensuring reliability and versatility across a range of applications.
Technical Data
| Item No. | CT-001P-0.5M |
| Light Source | 7Pcs*15W RGBW 4-in-1 LED |
| Max. Power | 100W |
| Work Voltage | AC100-240V, 50-60Hz |
| Beam angle | 4.5Degree,8Degree (20D,40D, 20*40D by diffusion filer) |
| Luminous flux | 1265lm |
| Control Protocol | DMX512,RDM |
| DMX Channels | 4,6,8,38CH |
| IP Grade | IP65 |
| Product's dimension | 511*150*237mm |
| Net weight | 6.2KG |
Lighting Distribution Data
Product's Dimension
Installation Diagram
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
