200w RGBW Dmx512 COB Light Aluminum Stage Lights Studio Theater Cob Led Par Light
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&Rohs |
| Model Number: | TPL-125 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiated |
|---|---|
| Packaging Details: | Carton、flight case |
| Delivery Time: | 30~35 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| Type: | Stage Par Light | Light Source: | LED |
|---|---|---|---|
| Lamp Power: | 200W | Input Voltage: | AC100V-240V |
| IP Rate: | IP20 | Warranty: | 1-year |
| Beam Angle: | 60° | N.W.: | 4.8kg |
| Highlight: | Studio Theater COB Led Par Light,200w COB Led Par Light,Aluminum Stage COB Led Par Light |
||
Product Description

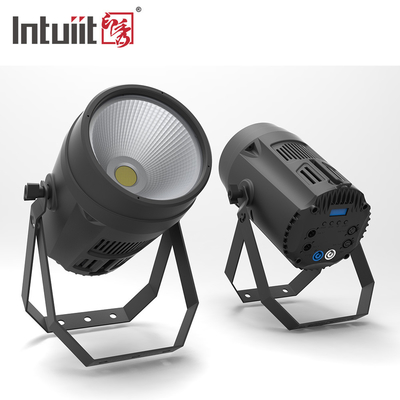

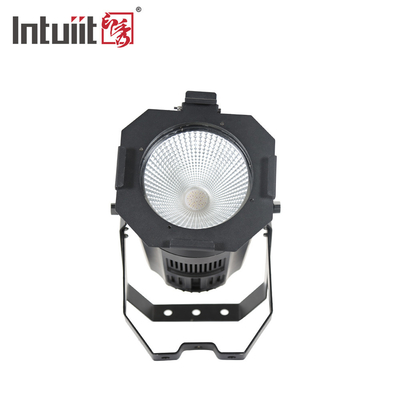

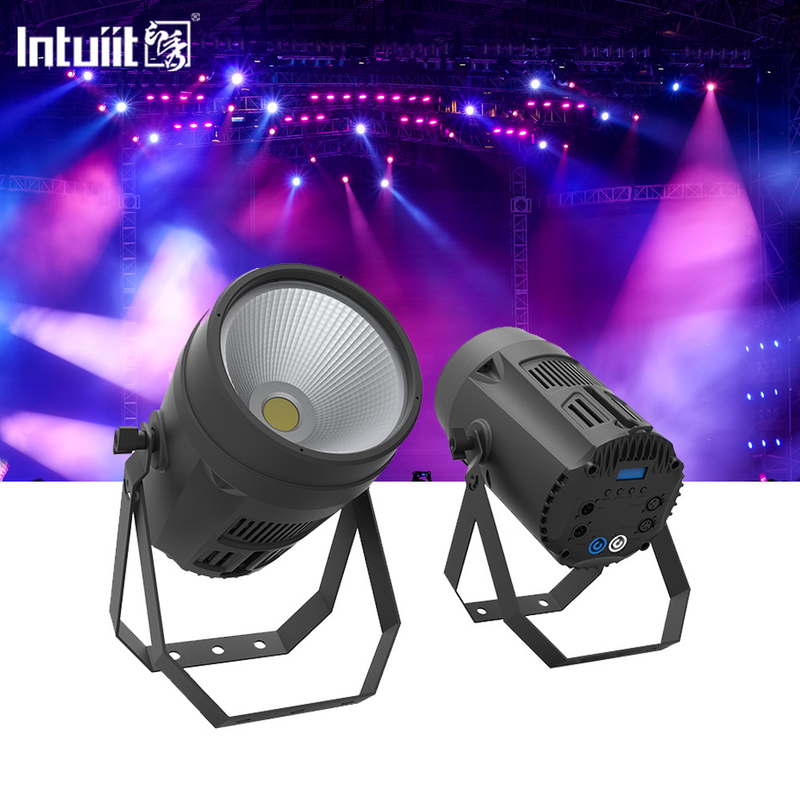

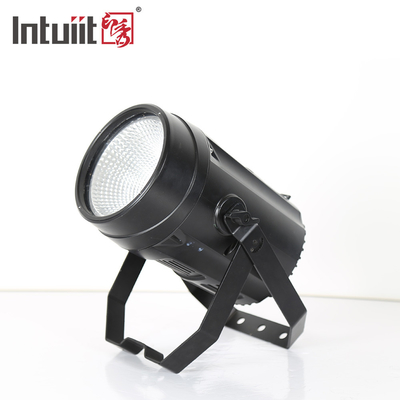

TPL-125 Stage Par Light
Key Features
-
High Brightness and Color Quality
- Equipped with a 200W RGBW LED.
- High Color Rendering Index (CRI) for excellent color accuracy.
-
Stunning Color Mixing
- Combines Red, Green, Blue, and White for vibrant effects.
- Creates dynamic atmospheres suitable for various events.
-
Durable Construction
- Made with high-temperature-resistant aluminum die-casting.
- Designed to withstand demanding stage environments.
-
Optimal Heat Dissipation
- Built-in cooling fan ensures efficient heat management.
- Operates at optimal performance without overheating.
-
Energy Efficient and Low Noise
- Low power consumption ideal for energy-sensitive setups.
- Minimal noise output, perfect for quiet environments.
-
Adjustable Light Beam
- Features a 60° reflector cup with optional 15° or 30° diffusers.
- Customizable light output to suit specific needs.
-
Versatile Operating Modes
- Supports master/slave, sound activation, built-in programs, auto running, and DMX control.
- Flexible operation for various performance scenarios.
-
Compliance and Certifications
- CE and RoHS certified for safety and environmental standards.
-
DMX Compatibility

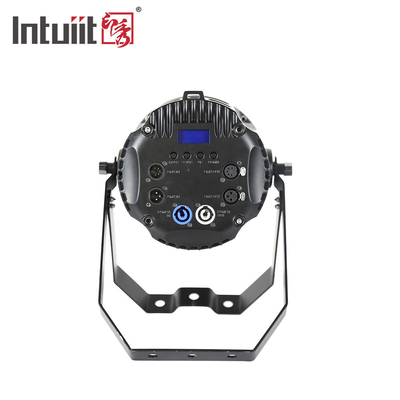

- Includes 3-pin and 5-pin DMX inputs and outputs.
- Easily integrates into existing lighting setups.
-
Lightweight and Portable
- Ideal for a variety of venues: disco, ballroom, Halloween events, bars, stages, clubs, parties, weddings, churches, and Christmas celebrations.
- Perfect for DJ light shows and live musical performances.
This combination of features makes the TPL-125 an excellent choice for both professional and semi-professional lighting applications
Specification
| feature | product name | 200W RGBW Indoor COB Par | |||||
| physical feature | Product Dimention | 269*203.3*437mm | |||||
| Inner box | 500*300*270mm | ||||||
| Outer box | 525mm*625mm*575mm | ||||||
| Qty/ctn | 4pcs/ctn | ||||||
| Net weight | 4.8Kg | ||||||
| Gross weight | 5.9Kg | ||||||
| Housing | aluminium die casting | ||||||
| Device Connection | DMX in/out,power in/out | ||||||
| Heat-dissipating method | Fan | ||||||
| electric parameter | Power voltage | 100-240V AC,50-60Hz | |||||
| Power consumption | 210W | 211.5W @110V | 203.8W @240V | ||||
| Power factor | 0.995 @110V | 0.968 @240V | |||||
| Input current | 2.124A @110V | 0.876A @240V | |||||
| Power connection | 3pcs @110V | 8pcs @240V | |||||
| optical system | LED | TX 200W RGBW 4-in-1 | |||||
| drive current | 1.9A | ||||||
| Dimming | 0-100% | ||||||
| Strobe frequency | 0-20Hz | ||||||
| Beam angle | 60°/30°/15° | ||||||
| maximum luminous flux | 60° is 8308 / 30° is 6744 /15° is 6263 | ||||||
| control | Contorl protocol | DMX512 | |||||
| DMX channel | 4,6,8 CHs | ||||||
| Operation | LCD | ||||||
| Working mode | Auto running, built-in program,DMX512, master/slave,static color | ||||||
| safety | IP Grade | IP20 | |||||
| Working tempreture | -20 ～ +40℃ | ||||||
| else | Lux data | 1m (lux) | 2m (lux) | 3m (lux) | 4m (lux) | 5m (lux) | |
| R | 1441 | 410 | 200 | 119 | 79 | ||
| G | 2627 | 746 | 360 | 216 | 143 | ||
| B | 550 | 161 | 75 | 45 | 30 | ||
| W | 2761 | 803 | 386 | 235 | 153 | ||
| RGBW | 6400 | 2036 | 960 | 577 | 378 | ||
| spares | User Manual , power line | ||||||
| Additional Features | temperature protection | ||||||
Dimension sheet:

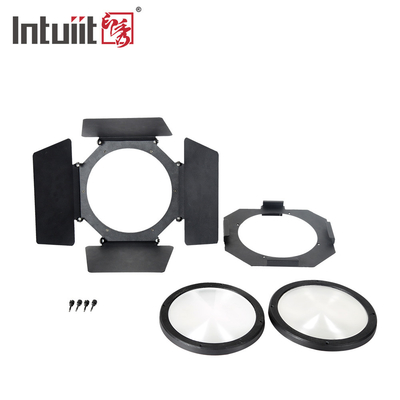

Accessories:
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A:Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A:Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
