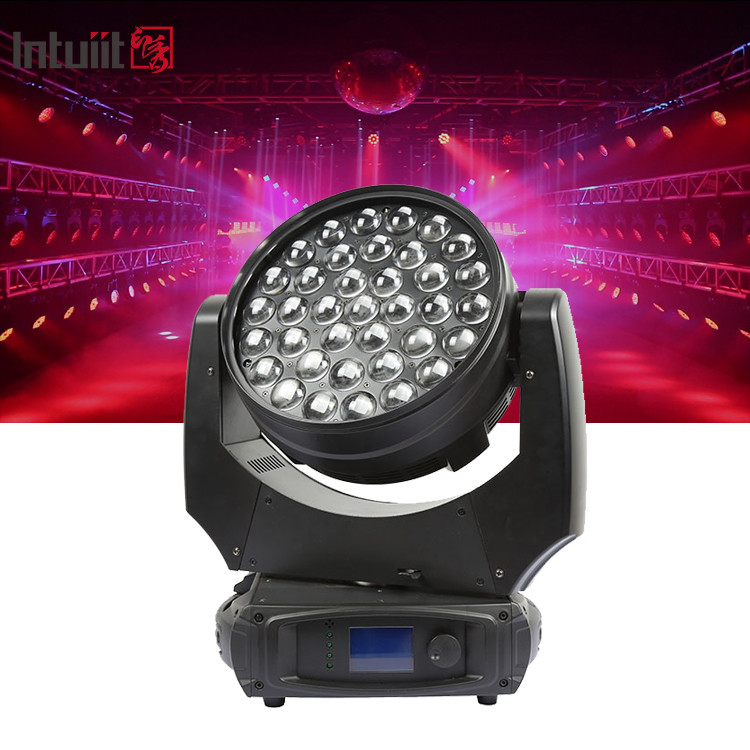

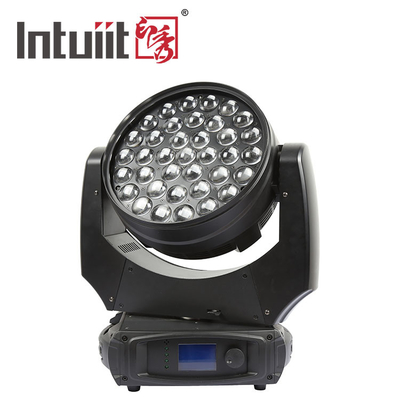

37x10W RGBW 4in1 Led Wash Stage Lighting DMX Professional Dj Lights 370W Zoom Moving Head Light For Party
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | XY-037 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Inner box + Master Carton |
| Delivery Time: | 25-35days for mass order |
| Payment Terms: | T/T IN ADVANCE (30% Deposit, 70% balance payment before delivery) |
| Supply Ability: | 10000Pcs/Month |
|
Detail Information |
|||
| Type: | Led Zoom Moving Head Light | Light Source: | LED 10W RGBW 4-in-1 |
|---|---|---|---|
| Max. Power: | 370W | Input Voltage: | AC100-240V, 50-60Hz |
| IP Grade: | IP20 | Warranty: | 1 Year |
| Color Tempreture: | 6500K | Beam Angle: | 5°-60° |
| DMX Channel: | 9CH、12CH、29CH | N.W.: | 13.8KG |
| Highlight: | 37x10W RGBW Led Wash Stage Lighting,370W Zoom Moving Head Light,DMX Professional Led Wash Stage Lighting |
||
Product Description
Key features:
LED Configuration and Power:

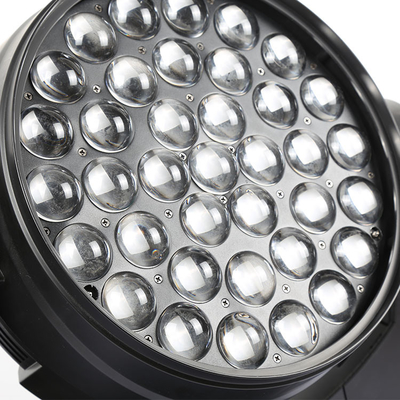

- 37 x 10W RGBW 4-in-1 LED emitters
- Total power consumption of 370W
- Provides excellent color mixing and super brightness
- Zoom and Beam Control:
- 5-60° wide zoom range system
- Adjustable LED ring control
- Allows for versatile beam shaping and coverage
Movement and Effects:
- Pan 540°, Tilt 270° for wide coverage
- Rich color effects, including linear dimming and selectable dimming curves
- High efficiency, low noise cooling and movement control systems
- Control and Connectivity:

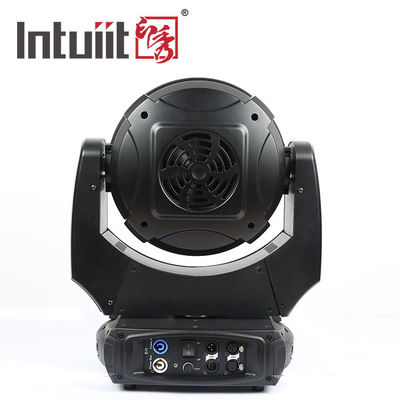

- DMX control via 3-pin and 5-pin XLR sockets
- PowerCon in/out connections for power daisy-chaining
- Universal auto-switching power supply (AC100-240V)
Applications:
- Professional for stage performance, stage rim light,auditorium,banquet hall, bar, rental, etc.
- The combination of powerful output, wide zoom range, and advanced control make it a versatile solution
Overall, the XY-037 appears to be a high-performance, feature-rich LED moving head wash light that would be well-suited for a wide range of professional stage and event lighting applications. The detailed specifications and capabilities you've provided give a clear picture of its strengths and versatility.
Technical Data
| Item No. | XY-037 |
| Light Source | 37Pcs*10W RGBW 4-in-1 LED |
| Max. Power | 370W |
| Input voltage | AC100-240V, 50/60Hz |
| Beam angle | 5-60º |
| Lumen | 4681lm |
| Control Protocol | DMX512 |
| DMX Channels | 9,12,29CH |
| Pan/Tilt | Pan 540º, Tilt 270º |
| IP Grade | IP20 |
| Product's Dimension | 439*249*510mm |
| Net Weight | 13.8KG |
Light Distribution Data
Product's Dimension
Installation Diagram

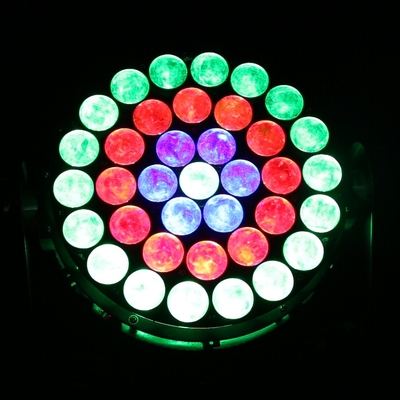

Effect shows
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
