Bar KTV Effect LED Stage Lights Rgbw Color Dmx Led Wall Wash light Linear Bar Light
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | CT-002P |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Inner box+ Master carton |
| Delivery Time: | 25-35days for mass order |
| Payment Terms: | T/T IN ADVANCE (30% Deposit, 70% balance payment before delivery) |
| Supply Ability: | 10000Pcs/month |
|
Detail Information |
|||
| Product Name: | Outdoor Wall Washer Pixel Control | Housing Color: | Black |
|---|---|---|---|
| Power: | 140W | Input Voltage: | AC100-240V, 60Hz/50Hz |
| IP Grade: | IP65 | Warranty: | 1 Years |
| CCT: | 3000K | Beam Angle: | 20°, 20*40° |
| Channel: | 4/6/8/56CH | Light Color: | RGBW |
| Material: | Aluminum Alloy | Size: | 978*141*179mm |
| Voltage: | AC110-240V | Weight: | 6.2kg |
| Highlight: | Rgbw Color LED Stage Lights,Linear Bar LED Stage Lights,Dmx LED Stage Lights |
||
Product Description

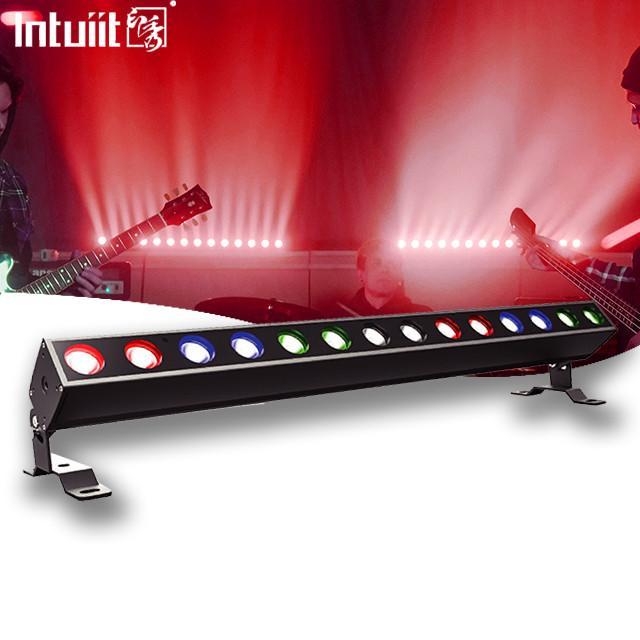

The CT-002P Stage LED Light Bar:
- IP65 Rated for Outdoor Use: The light bar is designed with a durable die-casting aluminum housing, making it suitable for outdoor environments and stage lighting applications.
- Vibrant Colors and Excellent Color Mixing: 140w led wall washer fits 14pcs 10W RGBW 4 in 1 LEDs with high output. It can light up your small architectures at any angle with any colors by mixing. Color change is natural, with better color mixing.Pixel independently control RGBW which can present therainbow and flowing water effect.
- Flexible Beam Angles: The light bar provides beam angle options of 20 degrees and 40 degrees, allowing you to achieve different lighting setups and effects.
- Pixel Control Capability: The CT-002P features pixel control, enabling precise control over individual LEDs for creating stunning visual displays and intricate lighting patterns.

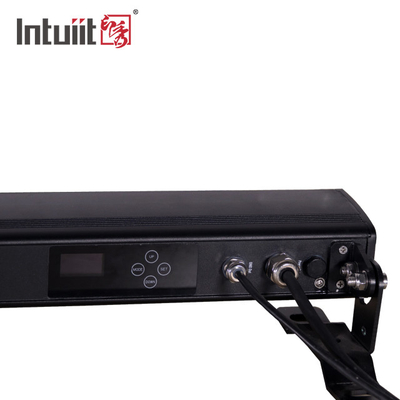

- Intuitive Operation: The light bar is equipped with an OLED display and a control panel with four touch buttons, making it easy to adjust settings, select lighting modes, and control various parameters.
- Our 140w RGBW 4 in 1 wall washer light LED bar is equipped with four control modes including Auto running, Built-in programs, DMX 512, M/S,Static Color for your freely selection.
- Durability and Reliability: With its IP65 rating, the light bar is designed to withstand outdoor conditions, ensuring its durability and reliability in challenging environments.
- This fixture can be specialized in rental company,studio,auditorium, bar, and other places, widely used in thefootlight of stage performance, rim light of stage.
Overall, the CT-002P Stage LED Light Bar is a versatile and reliable lighting solution that offers exceptional color mixing, precise control, and durability, making it an excellent choice for various outdoor and stage lighting needs.
Technical Data
| Item No. | CT-002P |
| Light Source | 14Pcs*10W RGBW 4-in-1 LED |
| Max. Power | 85W |
| Work voltage | AC100-240V,50-60Hz |
| Beam angle | 20Degree, 20*40D |
| Luminous flux | 1087lm |
| Control Protocal | DMX512, RDM |
| DMX Channels | 4,6,8,56CH |
| IP Grade | IP65 |
| Certificate | CE&RoHS |
| Product's dimension | 978*141*179MM |
| Net Weight | 6.2kg |

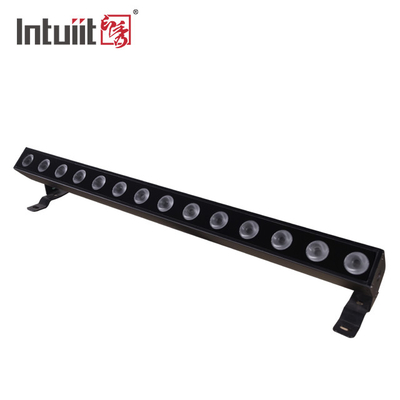

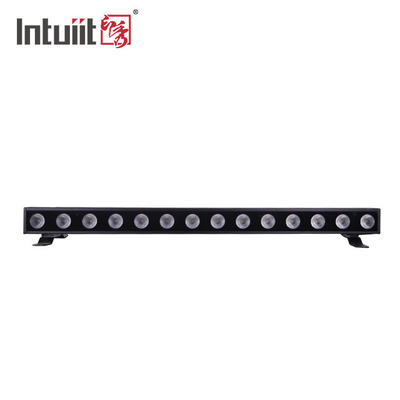

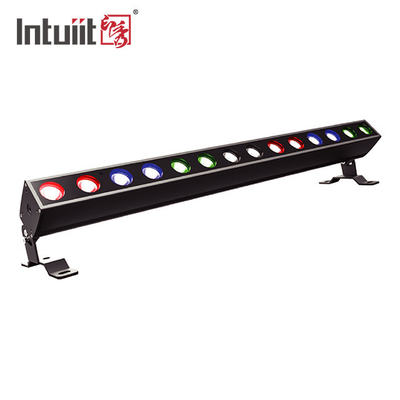

Appearance
Light Distribution Data

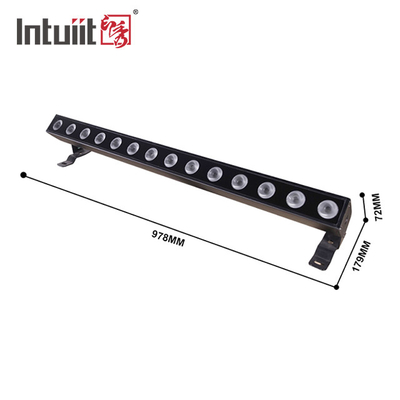

Product's Dimension
Installation Diagram
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
