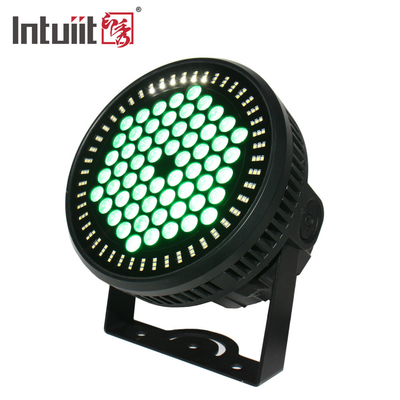

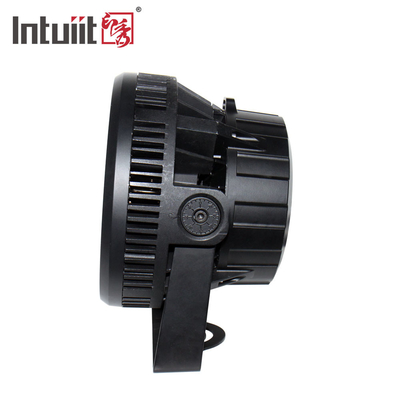

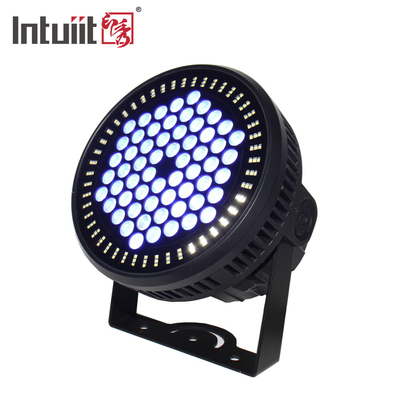

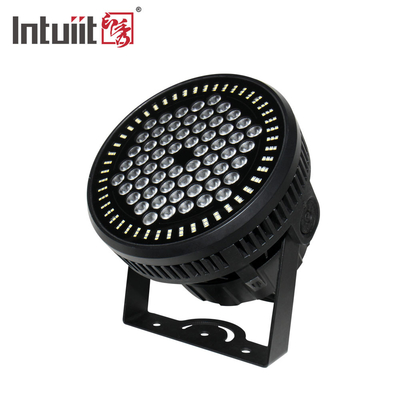

60*12W RGBW 4 in 1 IP65 Waterproof Outdoor DMX 512 LED Par light For Disco Stage Wedding Party DJ
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&Rohs |
| Model Number: | MYLED-131 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Carton、flight case |
| Delivery Time: | 30~35 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| L Ig Ht So Urce: | 60x12W 4-in-1 RGBW | Lumen: | 12060lm |
|---|---|---|---|
| Beam Angle: | 20°/ 30°/ 40°Optional | Input Voltage: | AC100V-240V |
| Power: | 300W | Drive Current: | 500mA |
| IP Grade: | IP65 | N.W.: | 7.98kg |
| Product Measurement: | 310mm*271mm*200mm | Dimming: | 0-100% |
| Highlight: | 60*12W LED Par light,IP65 Waterproof LED Par light,Disco Stage LED Par light |
||
Product Description
The MYLED-131 LED par light. Based on the description, it‘s a well-designed and versatile outdoor lighting fixture with the following key features:

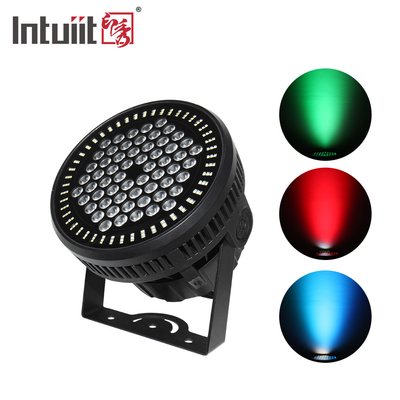

- RGBW LED lighting: 4in1 Color Stage Effect: LED RGBW including red, green, blue, white. Color changing and light dimming are available, which could meet your mand stage need.
- Strobe SMD lights: The combination of wash and strobe effects from the round configuration of strobe SMD lights adds versatility to the lighting setup.
- 20° beam angle: The 20° beam angle provides a focused and precise lighting output, making it suitable for highlighting specific areas or objects in outdoor environments.
- Barndoors: The included barndoors allow for controlling and shaping the light beam, preventing unwanted spill and providing more control over the lighting design.
- Different Operational Modes: The fixture offers various operating modes, including master/slave, built-in programs, auto running, and DMX control, giving users flexibility in controlling and operating the light.
- Outdoor-friendly design: The MYLED-131 is IP65 waterproof rated, Design of aluminum alloy waterproof body,and the power plug and DMX Signal Cable all waterproof,it is Hand by hand Can be in series to use it,you can use it at indoor, and also use it at outdoor,Don't worry about getting wet when it rains.
Overall, the MYLED-131 is a high-quality and versatile LED par light that is well-suited for outdoor architectural and landscape lighting applications, offering a range of features and benefits for users seeking a reliable and professional-grade outdoor lighting solution.
Specification
| Product name | 300W Outdoor LED Par | ||||||
| Item number | MYLED-131 | ||||||
| physical property | Product Measurement | 310mm*271mm*200mm | |||||
| Inner Packing Size | 375*345*290mm | ||||||
| Outer Packing Size | 710*395*315mm | ||||||
| Quantity | 2pcs/ctn | ||||||
| N.W. | 7.98Kg | ||||||
| G.W. | 9.85Kg | ||||||
| Housing Material | Die casting Aluminium | ||||||
| Color | Black | ||||||

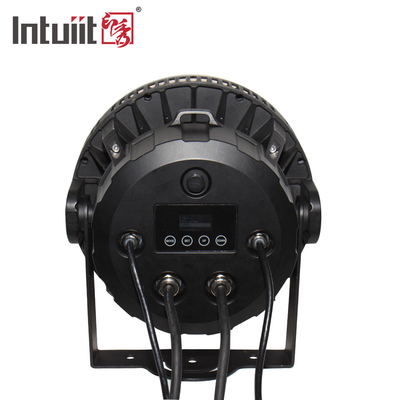

| Device Linking | Power In/Out,DMX In/Out | ||||||
| Electric Parameters | Input Voltage Range | AC100-240V,60/50HZ | |||||
| Max Power | 380W/AC110V | 360W/240V | |||||
| Power Factor | 0.998/AC110V | 0.981/A240V | |||||
| Input Current | 3.7A/AC110V | 1.5A/AC240V | |||||
| Power Linking | 3pcs/AC110V | 8pcs/AC240V | |||||
| Optical System | LED Light Source | RGBW | |||||
| Drive Current | 500MA | ||||||
| Dimming | 0-100% | ||||||
| Strobe | 0-20Hz | ||||||
| Light Angle | Beam angle | 20° | Spot angle | 45° | |||
| Max Lumen | 9602 lm | ||||||
| Control | Data Protocol | DMX512 | |||||
| DMX Channel | 7/11/18/28/32/39CH | ||||||
| Safety | IP Rate | IP65 | |||||
| Working Tempreture | -20°～40° | ||||||
| Lux | Distance | F | R | G | B | W1 | W1+W2 |
| 1M | 60000 | 15300 | 24200 | 4152 | 25100 | 25700 | |
| 2M | 15300 | 4100 | 7400 | 1220 | 7010 | 7430 | |
| 3M | 6900 | 1830 | 3100 | 555 | 3130 | 3160 | |
| 4M | 3680 | 960 | 1730 | 320 | 1780 | 1880 | |
| 5M | 2480 | 691 | 1148 | 216 | 1190 | 1240 | |
Dimension sheet:
Installation:

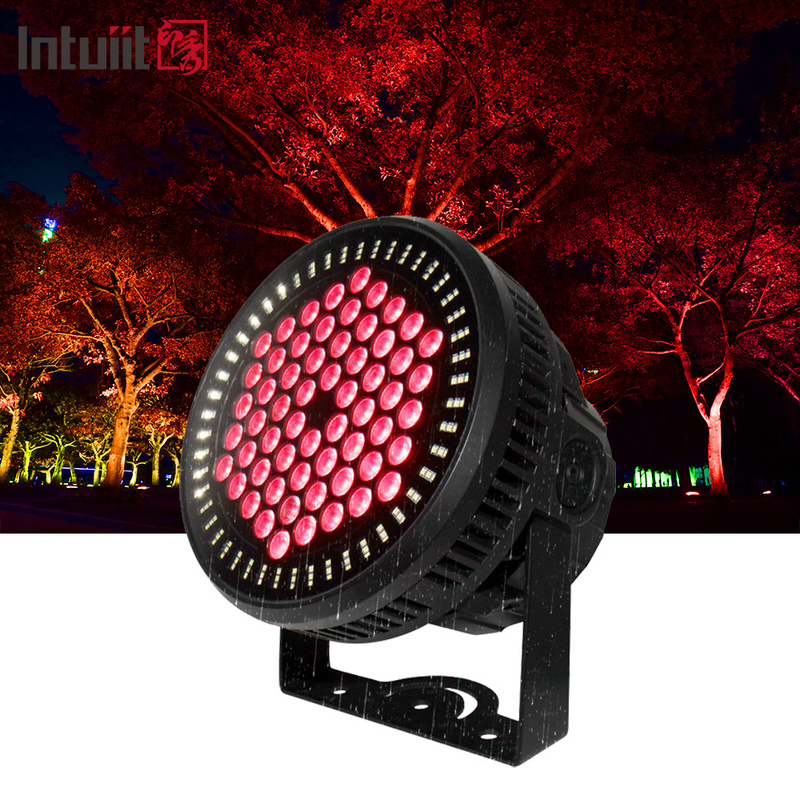

Effect Images:
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
