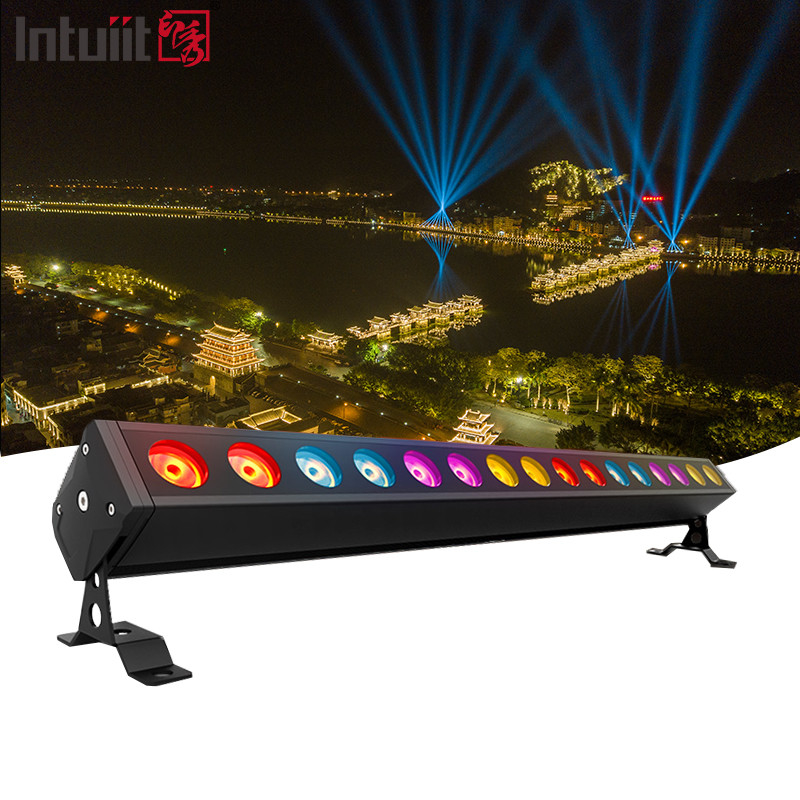

DMX512 Disco Lighting Parties DJ Night Club Stage Lights RGBW 16x5w Wall Wash LED Bar
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | TPL-128 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Inner box+ Master Carton/ Flight case |
| Delivery Time: | 25-30days |
| Payment Terms: | T/T (30% deposit, 70% balance before delivery) |
| Supply Ability: | 10000Pcs/Month |
|
Detail Information |
|||
| Type: | LED Bar Light | Max. Power: | 82W |
|---|---|---|---|
| Input Voltage: | AC100-240V, 60Hz/50Hz | Light Source: | RGBW 4-in-1 LED |
| IP Grade: | IP65 | Warranty: | 1 Year |
| DMX Channel: | 4/6/9CH | Leds: | 16 |
| N.W.: | 6.2kg | G.W.: | 6.5kg |
| Highlight: | RGBW LED Bar,DMX512 LED Bar,16x5w LED Bar |
||
Product Description

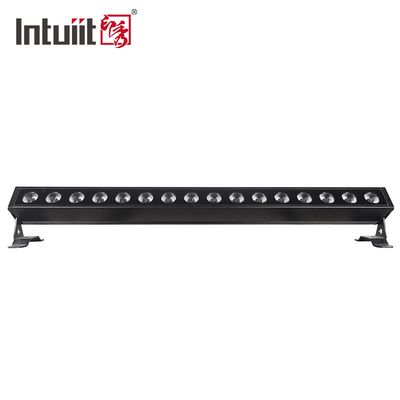

The TPL-128 LED light bar:
IP65 Rating: The TPL-128 is highly resistant to dust and water, making it suitable for outdoor use in challenging weather conditions.
Durable Construction: The die-cast aluminum housing enhances the durability of the light bar.Color change is natural, with better color mixing.
RGBW 4-in-1 LEDs: The light bar incorporates RGBW LEDs, enabling vibrant and dynamic lighting effects with seamless color blending.
Adjustable Beam Angles: The light bar offers two adjustable beam angles (20° and 40°), providing flexibility in creating various lighting configurations.

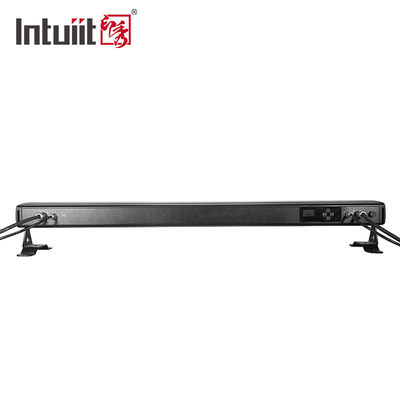

OLED Display and Intuitive Controls: The TPL-128 features an OLED display and four responsive touch buttons, making it easy to operate and customize the lighting parameters.
16-bit Dimming: The high-resolution dimming capability ensures smooth transitions and precise lighting effects during performances or events.
Versatile Applications:This fixture can be specialized in rental company, studio,auditorium, bar, and other places,widely used in thefootlight of stage performance, rim light of stage.
Overall, the TPL-128 LED light bar appears to be a versatile and high-performance outdoor lighting fixture with features that make it well-suited for various lighting applications, particularly in challenging outdoor environments.
1. Product Description
| Brand:Guangzhou Dasen Lighting Corporation | Type : TPL-128 |
| Light source: LED | Wire:rubber cable |
| Application : STAGE, OUTDOOR INDOOR | Housing color:Black |
| Type: | TPL-128 | ||
| Rated power: | 82W | Rated Voltage: | AC100-240V/60-50HZ |
| Control Mode: | DMX512 | Color: | RGBW |
| Beam Angle : | 40°,20°optional | Cooling type: | Natural convection cooling |
| Product Size : | 1008*145*145mm | IP Rate: | IP65 |
| N.W: | 6.2KG | Channel: | 4,6,9CH |
| LED : | Prolight RGBW 5W | Permitted Ambient Temperatur: | -20~+45 |
Optical Parameter

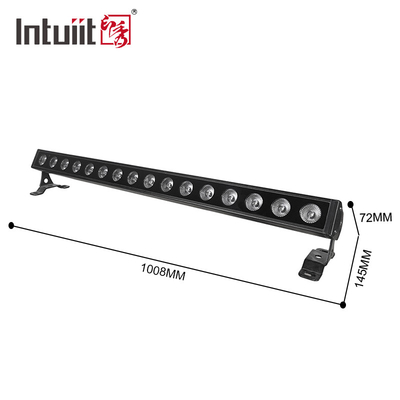

Product's Dimension
Installation Diagram
Effect Display
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
