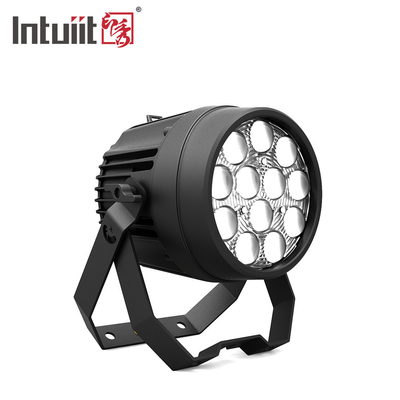

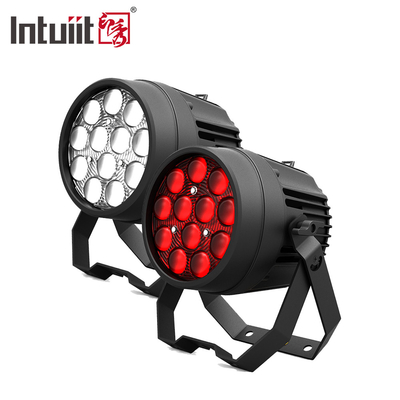

12x10W Powerful Disco Lights DMX 512 Sound Activated LED Par Can Stage Lights
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&Rohs |
| Model Number: | MYLED-116 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | Carton、flight case |
| Delivery Time: | 30~35 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| Type: | Stage Par Light | Light Source: | LED |
|---|---|---|---|
| Lamp Power: | 120W | Input Voltage: | AC100V-240V |
| IP Rate: | IP20 | Warranty: | 1-year |
| LEDS: | 12 | LM: | 1915lm |
| Highlight: | 12x10W LED Par Can Stage Lights,DMX 512 LED Par Can Stage Lights |
||
Product Description
The key features and capabilities of this product:
- LED Configuration:
- 12 x 10W RGBW 4-in-1 LEDs on the main PCB
- 12 x SMD RGB LEDs for backlighting
- Provides rich and vibrant lighting effects
- Zoom Functionality:
- Adjustable beam angle from 5° to 55°
- Allows for flexible coverage and light distribution
- Lighting Control:
- Supports DMX512 control protocol
- Enables integration into larger lighting setups
- Dimming and Effects:
- 16-bit dimming for smooth brightness control
- Various built-in modes (master/slave, sound-activated, auto, etc.)
- Suitable for theatrical and entertainment applications
The combination of the high-powered RGBW LEDs, adjustable zoom, DMX control, and advanced dimming and effects makes the MYLED-116 a versatile and capable LED par light for stage, event, and theater lighting.
Specification
| Item | LED Zoom Par light, 12*4-in-1 RGBW 10W | ||||
| Item number | MYLED-116 | ||||
| Dimension | 200x260x285 mm | ||||
| Inner box | 255*280*330 MM | ||||
| Master box | 535*300*360 MM | ||||
| Qty | 2pcs/ctn | ||||
| N.W | 4.1 KG | ||||
| G.W | 4.6 KG | ||||
| Voltage | AC100V ～ 240V,60/50Hz | ||||
| Power consumption | 130W | 127W@110V | 126W@240V | ||
| Power linking | 4pcs@110V | 8pcs@240V | |||

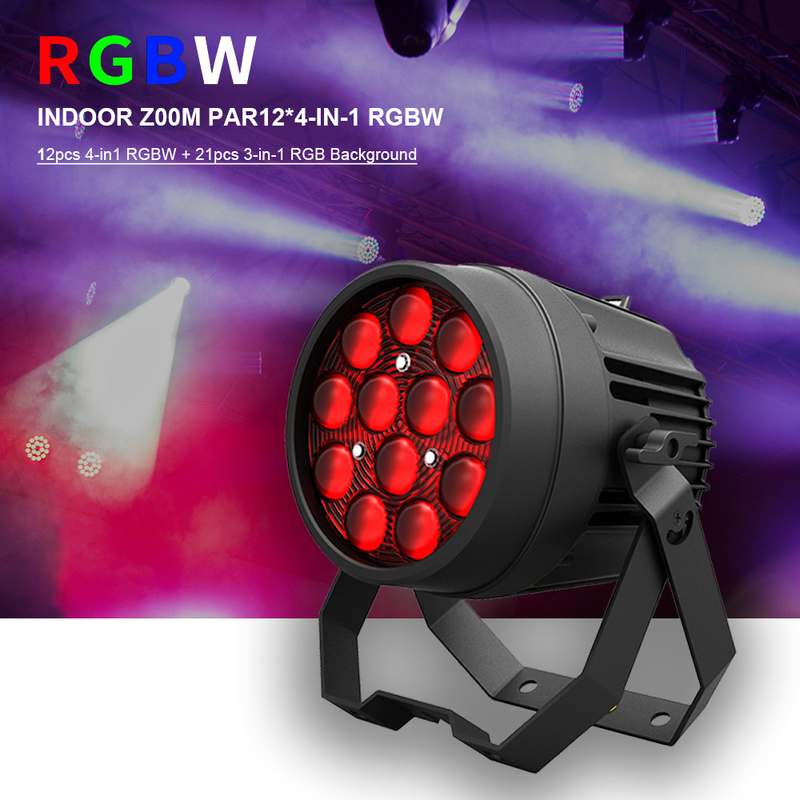

| LED | 12pcs 4-in1 RGBW + 21pcs 3-in-1 RGB Background | ||||
| Dimming | 0-100%(16-bit) | ||||
| Beam Angle | 5°-60° | ||||
| Lumen | 1915lm | ||||
| DMX Channel | 14CHs | ||||

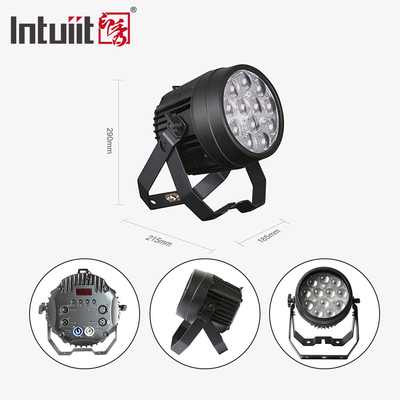

Dimension sheet:
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
