200W COB Par Can DMX Professional COB Stage Light For Dj Disco Party Wedding
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&Rohs |
| Model Number: | TPL-125 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiated |
|---|---|
| Packaging Details: | Carton、flight case |
| Delivery Time: | 30~35 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| Type: | Stage Par Light | Light Source: | LED |
|---|---|---|---|
| Lamp Power: | 200W | Input Voltage: | AC100V-240V |
| IP Rate: | IP20 | Warranty: | 1-year |
| Beam Angle: | 60° | N.W.: | 4.8kg |
| Highlight: | Wedding COB Par Can,200W COB Par Can,Dj Disco COB Par Can |
||
Product Description
The TPL-125 stage par light. The key points:
- High Brightness and Color Quality: The TPL-125 features a 200W RGBW LED with a high Color Rendering Index (CRI) for excellent color quality and accurate color reproduction.
- RGBW Stage Lights can compound more different by original Red/Green/Blue/White,gives off stunning color mixing effect and create corresponding atmospher.
- Durable Construction: The light has a durable and high-temperature-resistant aluminum die-casting shell, making it suitable for demanding stage environments.
- Optimal Heat Dissipation: The built-in cooling fan helps dissipate heat efficiently, allowing the light to operate at optimal performance levels without overheating.
- Energy Efficient and Low Noise: The TPL-125 has low power consumption and produces low noise, making it suitable for noise-sensitive environments.
- Wide Range of Features and Options: The light offers a 60° reflector cup and optional diffusers with 15° or 30° angles, allowing users to adjust the light beam according to their needs.
- Versatile Operating Modes: The TPL-125 supports various operating modes, including master/slave, sound activation, built-in programs, auto running, and DMX control, providing users with flexibility.
- Compliance and Certifications: The light has obtained CE and RoHS certificates, indicating its compliance with European safety and environmental standards.

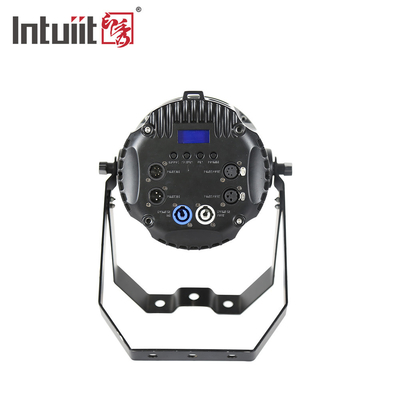

- DMX Compatibility: The fixture is equipped with both 3-pin and 5-pin DMX inputs and outputs, allowing easy integration into existing lighting setups.
- Compact mini par light is lightweight and portable for Disco,Ballroom, Halloween, Bar, Stage, Club, Party, Wedding,Church, Christmas etc.Also perfect for DJ light show, Xmas,and musical live show.
Specification
| feature | product name | 200W RGBW Indoor COB Par | |||||
| physical feature | Product Dimention | 269*203.3*437mm | |||||
| Inner box | 500*300*270mm | ||||||
| Outer box | 525mm*625mm*575mm | ||||||
| Qty/ctn | 4pcs/ctn | ||||||
| Net weight | 4.8Kg | ||||||
| Gross weight | 5.9Kg | ||||||
| Housing | aluminium die casting | ||||||
| Device Connection | DMX in/out,power in/out | ||||||
| Heat-dissipating method | Fan | ||||||
| electric parameter | Power voltage | 100-240V AC,50-60Hz | |||||
| Power consumption | 210W | 211.5W @110V | 203.8W @240V | ||||
| Power factor | 0.995 @110V | 0.968 @240V | |||||
| Input current | 2.124A @110V | 0.876A @240V | |||||
| Power connection | 3pcs @110V | 8pcs @240V | |||||
| optical system | LED | TX 200W RGBW 4-in-1 | |||||
| drive current | 1.9A | ||||||
| Dimming | 0-100% | ||||||
| Strobe frequency | 0-20Hz | ||||||
| Beam angle | 60°/30°/15° | ||||||
| maximum luminous flux | 60° is 8308 / 30° is 6744 /15° is 6263 | ||||||
| control | Contorl protocol | DMX512 | |||||
| DMX channel | 4,6,8 CHs | ||||||
| Operation | LCD | ||||||
| Working mode | Auto running, built-in program,DMX512, master/slave,static color | ||||||
| safety | IP Grade | IP20 | |||||
| Working tempreture | -20 ～ +40℃ | ||||||
| else | Lux data | 1m (lux) | 2m (lux) | 3m (lux) | 4m (lux) | 5m (lux) | |
| R | 1441 | 410 | 200 | 119 | 79 | ||
| G | 2627 | 746 | 360 | 216 | 143 | ||
| B | 550 | 161 | 75 | 45 | 30 | ||
| W | 2761 | 803 | 386 | 235 | 153 | ||
| RGBW | 6400 | 2036 | 960 | 577 | 378 | ||
| spares | User Manual , power line | ||||||
| Additional Features | temperature protection | ||||||

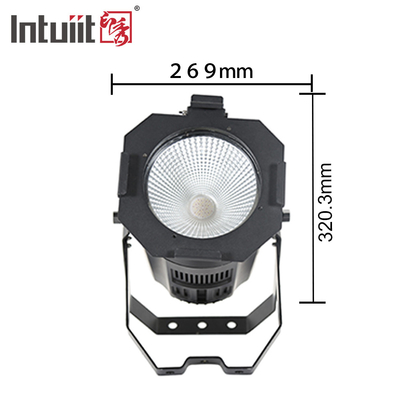

Dimension sheet:

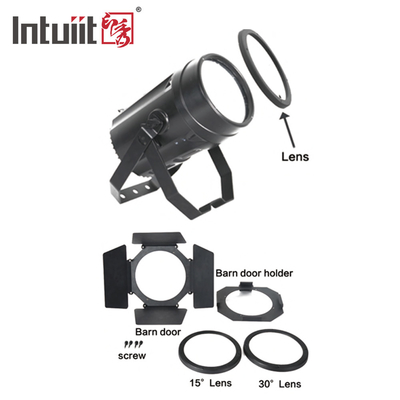

Accessories:
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A:Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A:Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
