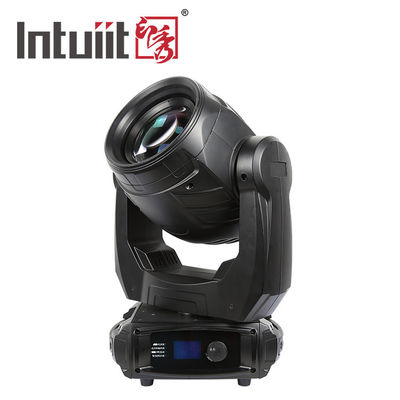

100W Stage Moving Head Wash Lights Beam Pattern Lights LED RGBW For Club DJ Disco Bar
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | XY-101Beam |
Payment & Shipping Terms:
| Minimum Order Quantity: | MOQ20Pcs |
|---|---|
| Packaging Details: | Inner box + Mass order |
| Delivery Time: | 25-35days for mass order |
| Payment Terms: | T/T IN ADVANCE |
| Supply Ability: | 10000Pcs/Month |
|
Detail Information |
|||
| Type: | LED Stage Light | Light Source: | 100W LED |
|---|---|---|---|
| Max. Power: | 150W | Input Voltage: | AC100-240V,50/60Hz |
| IP Grade: | IP20 | Warranty: | 1 Year |
| CCT: | 6500K | N.W.: | 14.7kg |
| Highlight: | 100W Stage Moving Head Wash Lights,RGBW Stage Moving Head Wash Lights |
||
Product Description
The key details about the XY-101BEAM professional moving head beam light:
- It is a 100W white LED moving beam light, the most powerful in the product line.
- It features both 3-pin and 5-pin DMX in/out, as well as Seetronic power con in/out, for convenient and flexible connectivity.
- This moving head light can be used for a variety of applications including stages, clubs, and events.
- It has fast and quiet pan/tilt movement capabilities.
- It offers multiple control modes like master/slave, sound activation, built-in programs, and DMX.
- The light weight of the fixture makes it easier to install and transport compared to similar products on the market.
- The beam angle is around 2 degrees, producing a very strong and focused beam output.
- The gobo effects are reported to be clear and bright.
- At a distance of 5 meters, the light output reaches 10,000 lux, indicating high brightness.
- This powerful 100W moving beam light seems well-suited for both permanent installations and rental/event use.
1. Product Description
| Brand:Guangzhou Dasen Lighting Corporation | Type : XY-101BEAM |
| Light source: LED | Wire:rubber cable |
| Application : Stage | Housing Material:Environmental Protection Flame Retardant ABS+Aluminum plate |
| Type: | XY-101BEAM | ||
| Rated power: | 150W | Rated Voltage: | AC100V-240V,50-60Hz |
| Control Mode: | DMX512 | Color temperature: | 6500K |
| Beam Angle : | 2.5° | Dimming: | 16 bit |
| N.W.: | 14.7KG | IP Rate: | IP20 |
| Channel : | 13,16CH | Rotation Type/range: | Pan540°,Tilt270° |
| Fixed Gobo : | 1(14+1 rotating gobos) | Color: |
14 colors+white/eight-color wheel(rainbow effect,speed can be adjusted) |
Light Distribution Data
Product's Dimension
Installation Diagram

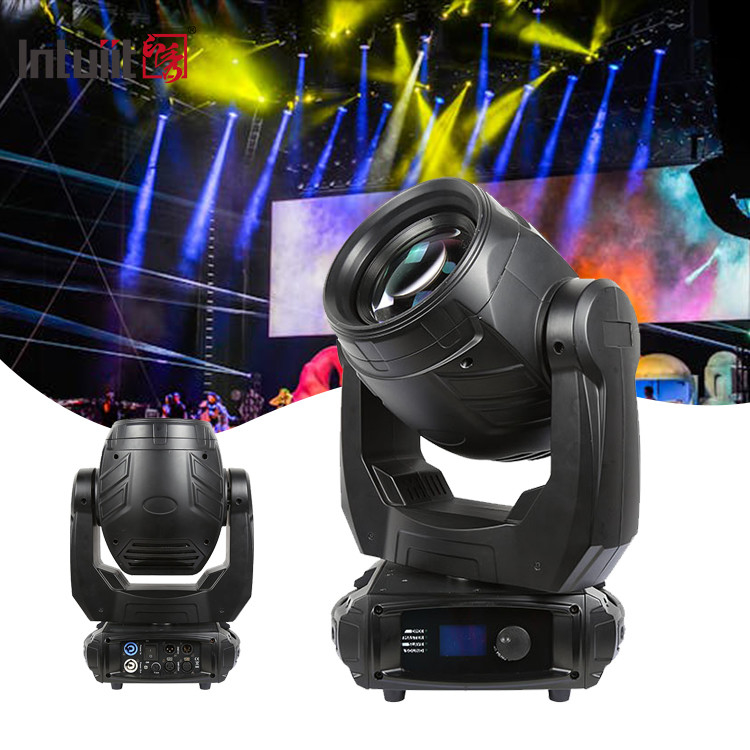

Effect Display
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
