Aluminum Housing Waterproof Ip65 Outdoor Lighting 16*5w Dmx512 Rgbw Led Wall Washer
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | TPL-128 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Inner box+ Master Carton/ Flight case |
| Delivery Time: | 25-30days |
| Payment Terms: | T/T (30% deposit, 70% balance before delivery) |
| Supply Ability: | 10000Pcs/Month |
|
Detail Information |
|||
| Type: | LED Bar Light | Max. Power: | 82W |
|---|---|---|---|
| Input Voltage: | AC100-240V, 60Hz/50Hz | Light Source: | RGBW 4-in-1 LED |
| IP Grade: | IP65 | Warranty: | 1 Year |
| DMX Channel: | 4/6/9CH | Leds: | 16 |
| N.W.: | 6.2kg | G.W.: | 6.5kg |
| Highlight: | dmx512 led wall washer,Aluminum housing waterproof led wall washer,ip65 outdoor led wall washer |
||
Product Description
The TPL-128 LED light bar is a versatile and durable outdoor lighting fixture that offers a range of features making it suitable for various outdoor applications. Here are some of its key features and benefits:
1.Durability:
- IP65 rated, resistant to dust and water
- Die-cast aluminum housing for enhanced durability
2.Sleek Design:
- RGBW 4-in-1 LEDs for vibrant and dynamic lighting effects
- Seamless color blending
3.Adjustable Beam Angles:
- Offers 20° and 40° beam angle options
- Provides flexibility in lighting configurations
4.Easy Operation:

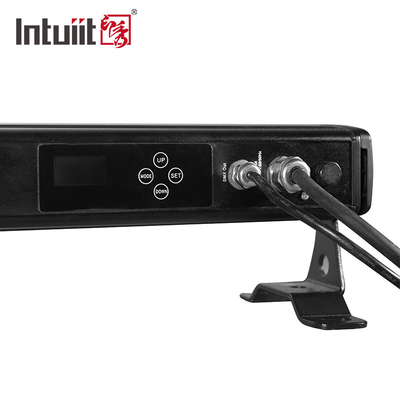

- OLED display and intuitive touch button controls
- Clear feedback and information on the display
5.Precise Brightness Control:
- 16-bit dimming for smooth transitions and precise lighting effects
- Allows for accurate control over lighting ambiance and mood
6.Common Applications:
- Outdoor lighting projects, such as building façades, stages, and events
- Suitable for various outdoor applications due to its durability and versatile lighting capabilities
The TPL-128 seems to be a well-designed and feature-rich LED light bar that would be a good choice for a wide range of outdoor lighting applications, thanks to its combination of durability, adjustability, and precise control capabilities. Please let me know if you need any further details or have additional questions.
1. Product Description
| Brand:Guangzhou Dasen Lighting Corporation | Type : TPL-128 |
| Light source: LED | Wire:rubber cable |
| Application : STAGE, OUTDOOR INDOOR | Housing color:Black |
| Type: | TPL-128 | ||
| Rated power: | 82W | Rated Voltage: | AC100-240V/60-50HZ |
| Control Mode: | DMX512 | Color: | RGBW |
| Beam Angle : | 40°,20°optional | Cooling type: | Natural convection cooling |
| Product Size : | 1008*145*145mm | IP Rate: | IP65 |
| N.W: | 6.2KG | Channel: | 4,6,9CH |
| LED : | Prolight RGBW 5W | Permitted Ambient Temperatur: | -20~+45 |
Optical Parameter

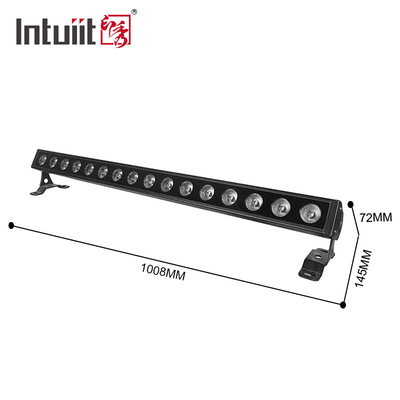

Product's Dimension
Installation Diagram

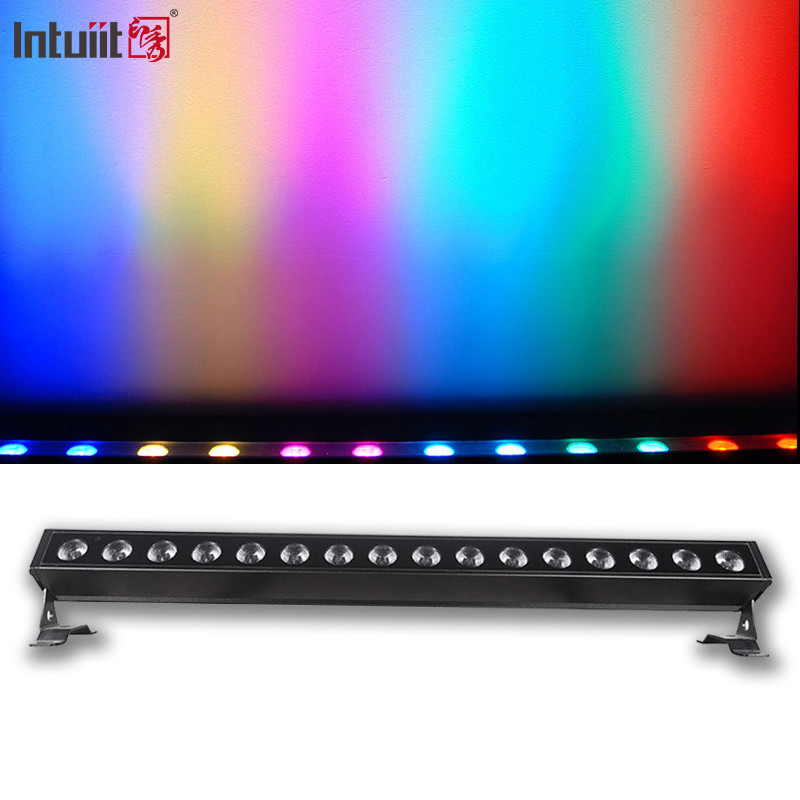

Effect Display
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
