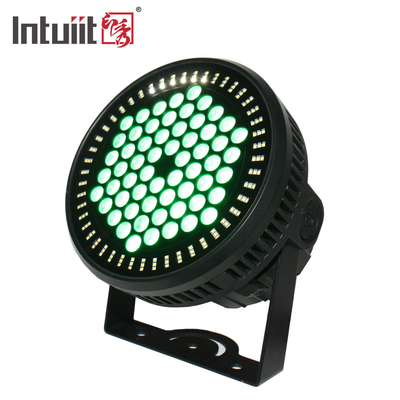

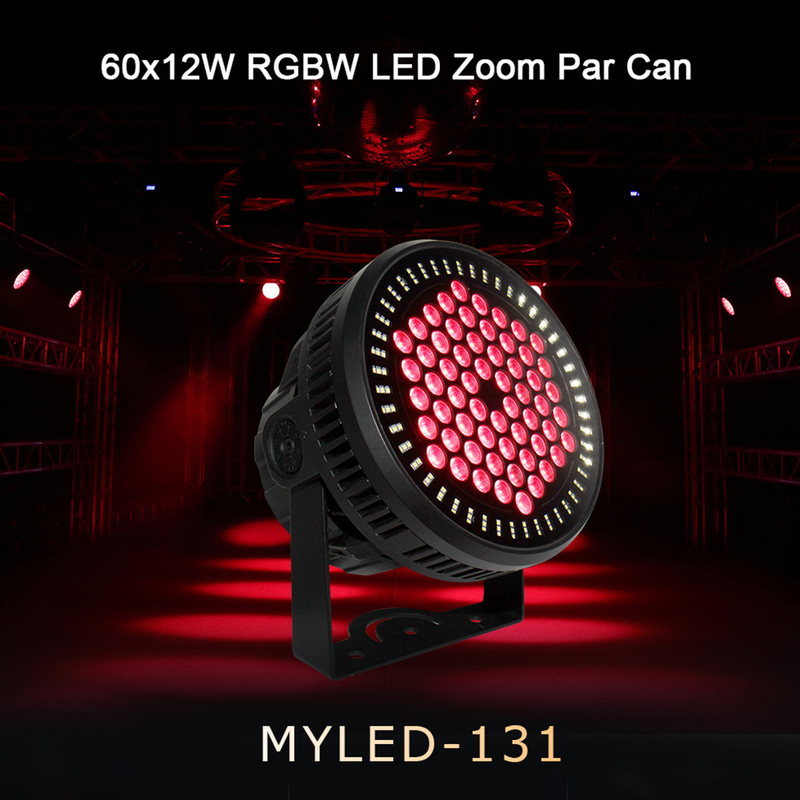

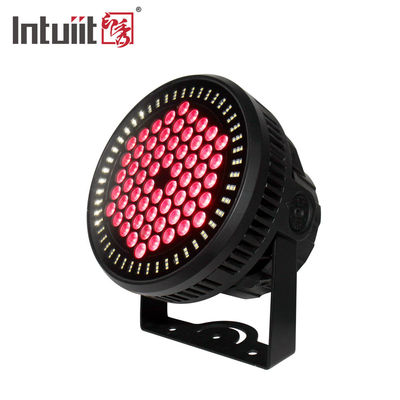

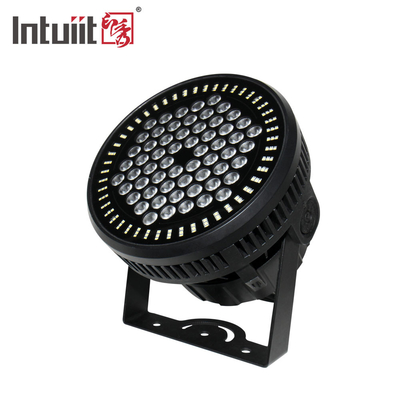

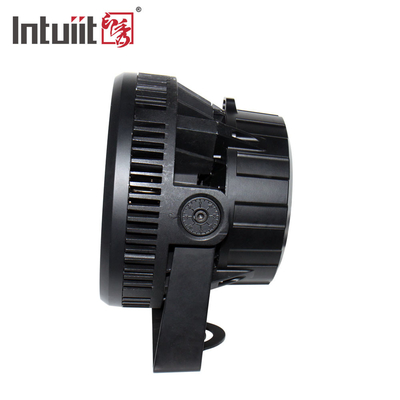

Outdoor Architectural Lighting 60 PCS X 12W RGBW 4 In 1 LED Waterproof Par Light IP65
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&Rohs |
| Model Number: | MYLED-131 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Carton、flight case |
| Delivery Time: | 30~35 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| L Ig Ht So Urce: | 60x12W 4-in-1 RGBW | Lumen: | 12060lm |
|---|---|---|---|
| Beam Angle: | 20°/ 30°/ 40°Optional | Input Voltage: | AC100V-240V |
| Power: | 300W | Drive Current: | 500mA |
| IP Grade: | IP65 | ||
| Highlight: | 60 PCS LED Par light,IP65 LED Par light,12W LED Par light |
||
Product Description
1.The MYLED-131 is an outdoor-rated LED par light designed for architectural and landscape lighting applications. It has an IP65 waterproof rating, making it durable for outdoor use.
2.It features RGBW LED lights that provide excellent brightness and color mixing capabilities, allowing for vibrant and dynamic lighting effects.
3.The fixture also incorporates strobe SMD lights in a round configuration, adding versatility with wash and strobe effects.
4.The 20-degree beam angle is suitable for landscape lighting, providing a focused and precise light output.
5.Barndoors are included as accessories to control and shape the light beam.
6.It offers multiple operating modes like master/slave, built-in programs, auto running, and DMX control, giving users flexibility in how they control the light.
7.The MYLED-131 is CE and RoHS certified, ensuring it meets safety and environmental standards. It is produced on a stable production line for consistency and reliability.
Overall, this appears to be a high-quality, professional-grade LED par light well-suited for outdoor architectural and landscape lighting applications based on the features and specifications provided.
Specification
| Product name | 300W Outdoor LED Par | ||||||
| Item number | MYLED-131 | ||||||
| physical property | Product Measurement | 310mm*271mm*200mm | |||||
| Inner Packing Size | 375*345*290mm | ||||||
| Outer Packing Size | 710*395*315mm | ||||||
| Quantity | 2pcs/ctn | ||||||
| N.W. | 7.98Kg | ||||||
| G.W. | 9.85Kg | ||||||
| Housing Material | Die casting Aluminium | ||||||
| Color | Black | ||||||

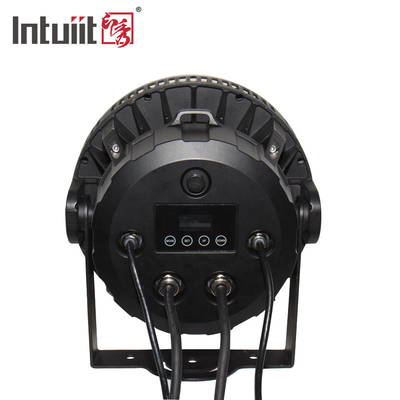

| Device Linking | Power In/Out,DMX In/Out | ||||||
| Electric Parameters | Input Voltage Range | AC100-240V,60/50HZ | |||||
| Max Power | 380W/AC110V | 360W/240V | |||||
| Power Factor | 0.998/AC110V | 0.981/A240V | |||||
| Input Current | 3.7A/AC110V | 1.5A/AC240V | |||||
| Power Linking | 3pcs/AC110V | 8pcs/AC240V | |||||
| Optical System | LED Light Source | RGBW | |||||
| Drive Current | 500MA | ||||||
| Dimming | 0-100% | ||||||
| Strobe | 0-20Hz | ||||||
| Light Angle | Beam angle | 20° | Spot angle | 45° | |||
| Max Lumen | 9602 lm | ||||||
| Control | Data Protocol | DMX512 | |||||
| DMX Channel | 7/11/18/28/32/39CH | ||||||
| Safety | IP Rate | IP65 | |||||
| Working Tempreture | -20°～40° | ||||||
| Lux | Distance | F | R | G | B | W1 | W1+W2 |
| 1M | 60000 | 15300 | 24200 | 4152 | 25100 | 25700 | |
| 2M | 15300 | 4100 | 7400 | 1220 | 7010 | 7430 | |
| 3M | 6900 | 1830 | 3100 | 555 | 3130 | 3160 | |
| 4M | 3680 | 960 | 1730 | 320 | 1780 | 1880 | |
| 5M | 2480 | 691 | 1148 | 216 | 1190 | 1240 | |
Dimension sheet:
Installation:

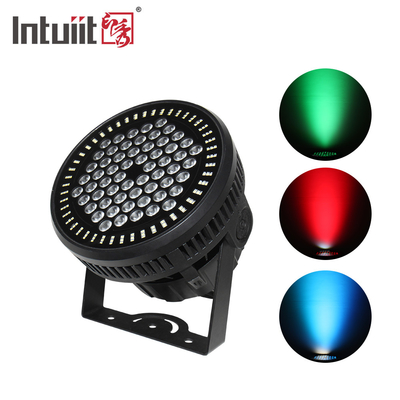

Effect Images:
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
