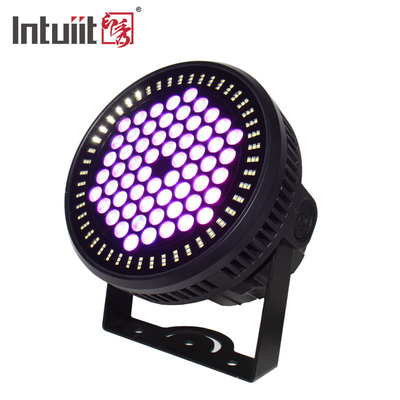

60*12W RGBW 4in1 Par Uplight Slim LED Par Stage Lighting For Bar Party Wedding Decoration
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&Rohs |
| Model Number: | MYLED-131 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Carton、flight case |
| Delivery Time: | 30~35 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| L Ig Ht So Urce: | 60x12W 4-in-1 RGBW | Lumen: | 12060lm |
|---|---|---|---|
| Beam Angle: | 20°/ 30°/ 40°Optional | Input Voltage: | AC100V-240V |
| Power: | 300W | Drive Current: | 500mA |
| IP Grade: | IP65 | ||
| Highlight: | 6*12W LED Par Stage Lighting,Slim LED Par Stage Lighting,Party LED Par Stage Lighting |
||
Product Description
The MYLED-131 is a powerful LED par light designed for outdoor architectural and landscape lighting applications. It features a robust construction and is IP65 waterproof rated, ensuring its durability and suitability for outdoor use.

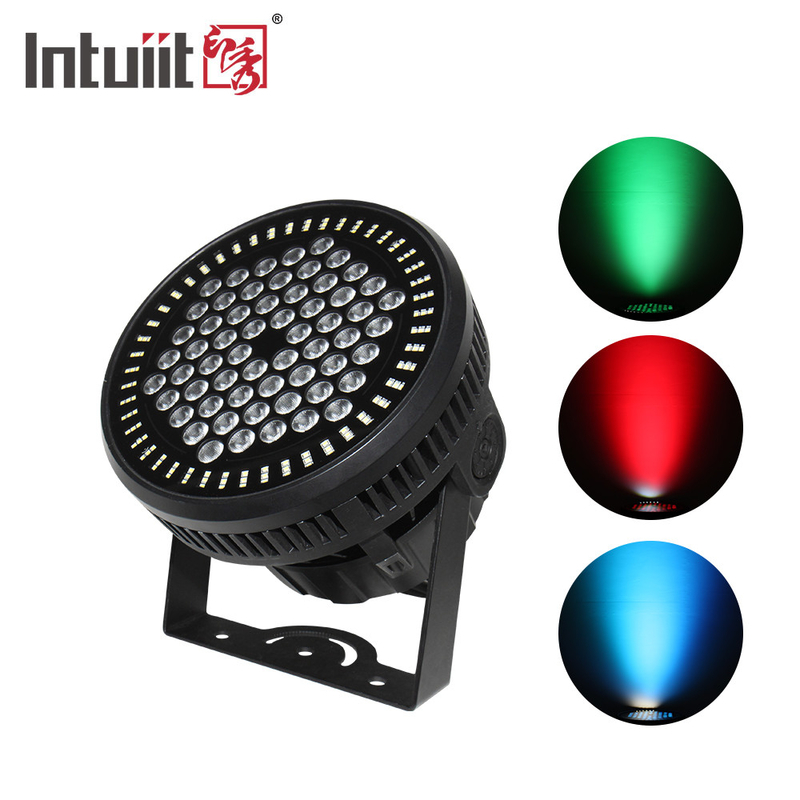

The main lighting component of the MYLED-131 is the RGBW LED, which allows for excellent brightness and color mixing capabilities. This enables you to create vibrant and dynamic lighting effects for your outdoor spaces.
In addition to the RGBW LED, the MYLED-131 also incorporates strobe SMD lights in a round configuration. This combination of wash and strobe effects adds versatility to your lighting setup, allowing you to create different visual atmospheres and dynamics.
The fixture has a beam angle of 20 degrees, which is a popular choice for landscape lighting illumination. This beam angle provides a focused and precise lighting output, ideal for highlighting specific areas or objects in your outdoor environment.
The MYLED-131 comes with a set of barndoors, which are accessories used to control and shape the light beam. Barndoors allow you to restrict the light output and prevent unwanted spill, giving you further control over your lighting design.
The fixture offers various operating modes, including master/slave, built-in programs, auto running, and DMX control. These modes provide flexibility in controlling and operating the light, allowing you to choose the most suitable mode for your specific lighting requirements.
The MYLED-131 is a high-quality outdoor stage par light that has obtained CE and RoHS certificates, ensuring its compliance with safety and environmental standards. The product is produced in a stable production line, which enhances its consistency and reliability.
Overall, the MYLED-131 is a professional-grade LED par light designed for outdoor architectural and landscape lighting applications. With its powerful performance, waterproof design, and versatile operating modes, it offers a range of benefits for users seeking high-quality outdoor stage lighting solutions.
Specification
| Product name | 300W Outdoor LED Par | ||||||
| Item number | MYLED-131 | ||||||
| physical property | Product Measurement | 310mm*271mm*200mm | |||||
| Inner Packing Size | 375*345*290mm | ||||||
| Outer Packing Size | 710*395*315mm | ||||||
| Quantity | 2pcs/ctn | ||||||
| N.W. | 7.98Kg | ||||||
| G.W. | 9.85Kg | ||||||
| Housing Material | Die casting Aluminium | ||||||
| Color | Black | ||||||

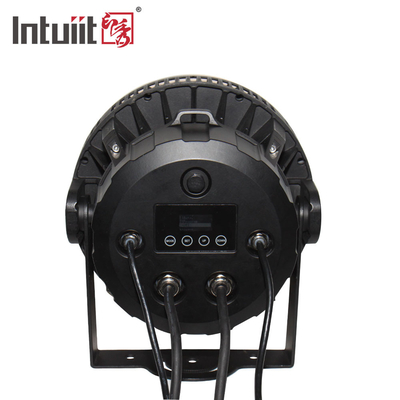

| Device Linking | Power In/Out,DMX In/Out | ||||||
| Electric Parameters | Input Voltage Range | AC100-240V,60/50HZ | |||||
| Max Power | 380W/AC110V | 360W/240V | |||||
| Power Factor | 0.998/AC110V | 0.981/A240V | |||||
| Input Current | 3.7A/AC110V | 1.5A/AC240V | |||||
| Power Linking | 3pcs/AC110V | 8pcs/AC240V | |||||
| Optical System | LED Light Source | RGBW | |||||
| Drive Current | 500MA | ||||||
| Dimming | 0-100% | ||||||
| Strobe | 0-20Hz | ||||||
| Light Angle | Beam angle | 20° | Spot angle | 45° | |||
| Max Lumen | 9602 lm | ||||||
| Control | Data Protocol | DMX512 | |||||
| DMX Channel | 7/11/18/28/32/39CH | ||||||
| Safety | IP Rate | IP65 | |||||
| Working Tempreture | -20°～40° | ||||||
| Lux | Distance | F | R | G | B | W1 | W1+W2 |
| 1M | 60000 | 15300 | 24200 | 4152 | 25100 | 25700 | |
| 2M | 15300 | 4100 | 7400 | 1220 | 7010 | 7430 | |
| 3M | 6900 | 1830 | 3100 | 555 | 3130 | 3160 | |
| 4M | 3680 | 960 | 1730 | 320 | 1780 | 1880 | |
| 5M | 2480 | 691 | 1148 | 216 | 1190 | 1240 | |
Dimension sheet:
Installation:
Effect Images:
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
