Wedding Stage Effect Lighting Decoration 120W RGBW Led Par Light For Dj Disco Party
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&Rohs |
| Model Number: | YX-022 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Carton、flight case |
| Delivery Time: | 30~35 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| Color Mixing: | RGBW | Light Source: | 4-IN-1 RGBW |
|---|---|---|---|
| Lamp Power: | 120W | Input Voltage: | AC100V-240V |
| IP Rate: | IP20 | Channel No.: | 4,6,11CH |
| Highlight: | dj disco party led par light,RGBW led par light,120W led par light |
||
Product Description
The YX-022 is a high-power and bright COB (Chip-on-Board) LED wash par can light that is commonly used in wedding events, stage shows, and concerts. It features a 120W RGBW (Red, Green, Blue, White) COB LED, which provides a wide range of colors for lighting effects.

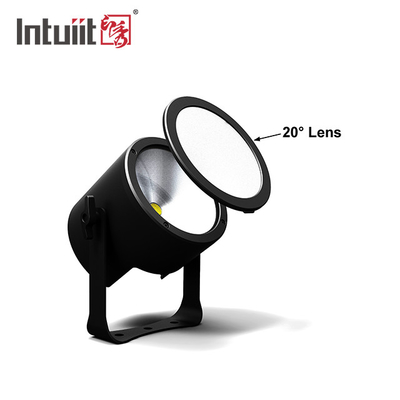

The YX-022 has a compact and lightweight housing made of private plastic, making it easy to transport and install. The optical part of the light includes a 70-degree reflect cup and a Fresnel lens, which help to focus and enhance the brightness of the light output.
This stage par light offers various operating modes, including master/slave, sound activation, built-in programs, auto running, and DMX control. These modes allow for flexible and dynamic lighting effects, synchronized with music or other lighting setups.
The YX-022 is known for its popularity in the stage market due to its versatility, powerful performance, and reliable functionality. It is a preferred choice for professionals in the lighting industry who require high-quality color mixing and versatile lighting options for a wide range of applications.
Specification
| Item number | YX-022 | |||||
| Product Dimension | 265*250*195 mm | |||||
| Inner box | 345*245*270 mm | |||||
| Outer box | 515*370*575 mm(4pcs/ctn) | |||||
| Weight | N.W 3kg /G.W 14kg | |||||
| Connector | DMX in/out,power in/out | |||||
| Power Voltage | AC100V ～ 240V,60/50Hz | |||||
| Power Consumption | 130W | 130W@110V | 125W@240V | Power factor | 1 | |
| Current | 1.31A@110V | 0.578 A@240V | ||||
| Power linking | 9pcs@110V | 22pcs@240V | ||||
| LED | 4-IN-1 RGBW | Driver current | 1.4A | |||
| Dimming | 0-100%(14-bit) | Strobe | 0-20Hz | |||
| Beam angle | 67degree | Max Lumen | 3276LM | |||
| DMX channel | 4,6,11CHs | |||||
| IP | IP20 | |||||
| Working Tempreture | -20 ～ +45℃ | |||||
| Lux Sheet | Distance | R(LUX) | G(LUX) | B(LUX) | W(LUX) | ALL(LUX) |
| 1(m) | 398 | 927 | 259 | 1072 | 2144 | |
| 2(m) | 113 | 250 | 71 | 290 | 660 | |
| 3(m) | 58 | 131 | 36 | 150 | 344 | |
| 4(m) | 37 | 78 | 22 | 90 | 205 | |
| 5(m) | 25 | 53 | 15 | 60 | 136 | |

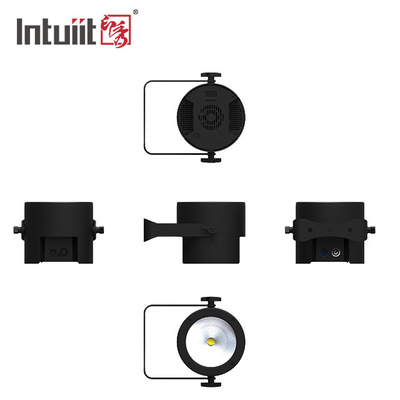

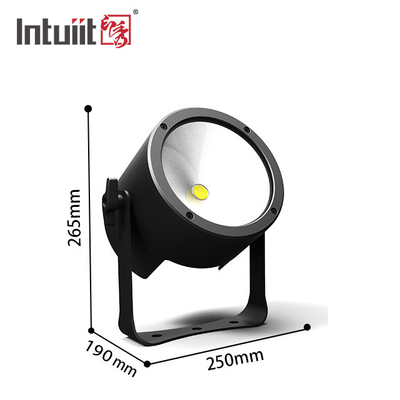

Dimension sheet:
Effect Image:
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
