Ip65 Wall Washer Led Wash Light Dmx 512 Rgb Led Wall Washer Light For Building Facade
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | TPL-028TE |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Inner box+Master Carton |
| Delivery Time: | 25-35days |
| Payment Terms: | T/T IN ADVANCE (30% Deposit, 70% balance payment before delivery) |
| Supply Ability: | 10000/month |
|
Detail Information |
|||
| Light Source: | 24*Tri-3W RGB | Max, Power: | 80W |
|---|---|---|---|
| Beam Angle: | 15Degree | IP Grade: | IP65 |
| Control Protocal: | DMX | Warranty: | 1 Year |
| Lamp Luminous Efficiency(lm/w): | 15 | ||
| High Light: | building facade led wash light,rgb led wash light,dmx 512 led wash light |
||
Product Description

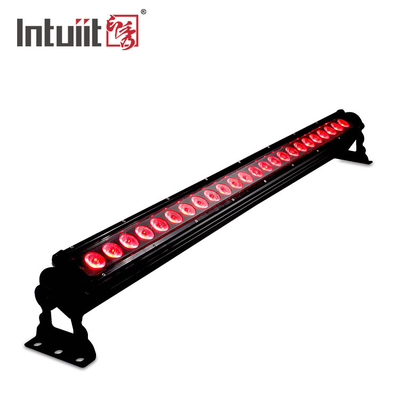

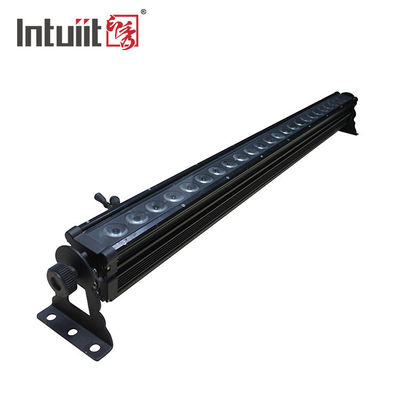

The TPL-028TE is a stage LED light bar designed for both indoor and outdoor lighting projects. It features an IP65 rating, which means it is protected against dust and water splashes, making it suitable for outdoor use. The light bar has a die-casting aluminum housing with a private tooling design, ensuring durability and reliability.
The TPL-028TE utilizes 12 pieces of 3-watt RGB 3-in-1 LEDs, providing a total power output of 80 watts. These LEDs offer excellent color mixing capabilities, allowing for vibrant and dynamic lighting effects. The light bar is available with two beam angle options: 15° and 40°, providing flexibility in directing the light output.

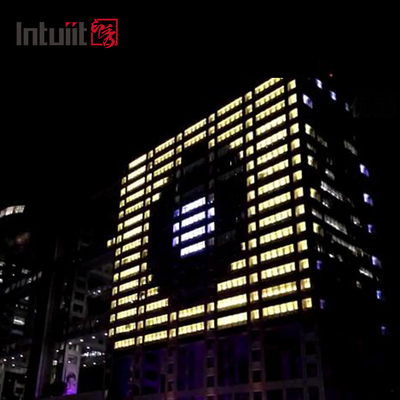

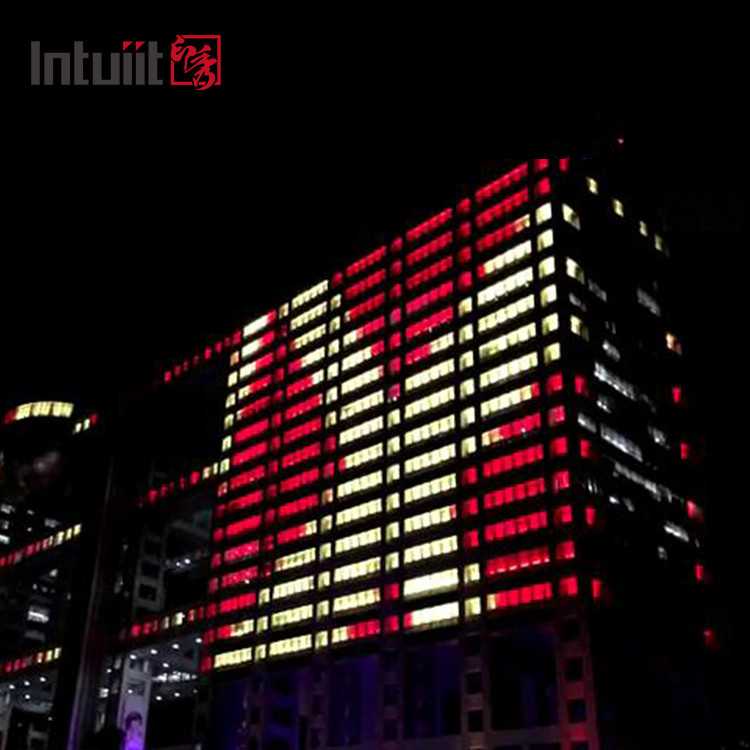

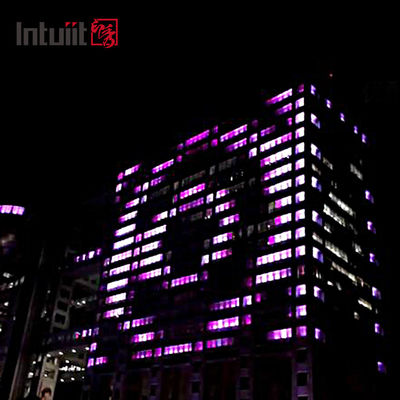

The TPL-028TE has been successfully employed in various indoor and outdoor lighting projects, including the Japanese Fuji TV Station. Its versatility and performance make it suitable for applications such as building facades, wall washing, and stage lighting.
Overall, the TPL-028TE is a high-quality LED light bar that combines functionality, durability, and excellent color mixing capabilities, making it suitable for a wide range of indoor and outdoor lighting projects.
Technical Data
| Item No. | TPL-028TE |
| Light Source | 24Pcs*3W RGB 3-in-1 LED |
| Max.Power | 80W |
| Work voltage | AC100-250V, 60Hz/50Hz |
| Beam angle | 40Degree |
| DMX Channels | 3,5CH |
| IP Grade | IP65 |
| Product's dimension | 1116*120*130.9MM |
| Net Weight | 6.5KG |
| Gross Weight | 6.9KG |
Light Distribution Data
Dimension
Installation Diagram
Effect Display
