8*15W RGB 3in1 DMX LED Matrix Pixel Stage Light For Dj Bar Disco Night Club
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | MYLED-064 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Inner box+ Master Carton |
| Delivery Time: | 25-35days for mass order |
| Payment Terms: | T/T IN ADVANCE(30% Deposit, 70% balance before delivery） |
| Supply Ability: | 10000pcs/Month |
|
Detail Information |
|||
| Type: | LED COB Effect Light | Light Source: | 15W COB RGB 3-in-1 LED |
|---|---|---|---|
| Max. Power: | 120W | Work Voltage: | AC100-240V, 50-60Hz |
| IP Grade: | IP20 | Beam Angle: | 55° |
| Channel No.: | 2,3,5,6,12,24CH | Data Protocol: | DMX512 |
| High Light: | DMX Pixel Stage Light,Night Club Pixel Stage Light,3in1 Pixel Stage Light |
||
Product Description

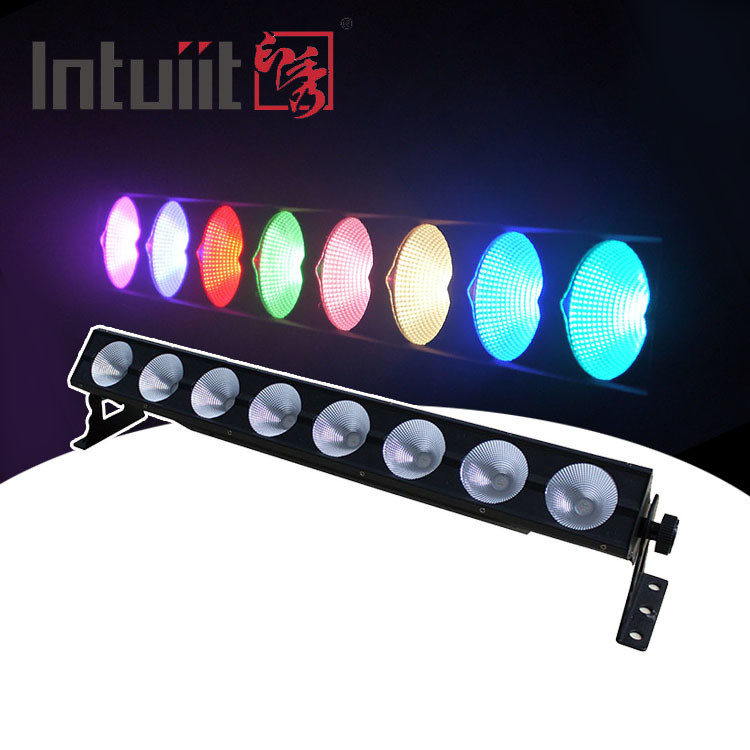

The MYLED-064 is an indoor LED effect light designed for various events such as DJ parties, club gatherings, weddings, concerts, and more. It features a COB Pixel Bar configuration with 8 pieces of 15W RGB 3-in-1 COB LEDs, resulting in a total power output of 120W.
One of the notable features of this product is its excellent color mixing capability, thanks to the RGB 3-in-1 LED technology. This ensures vibrant and dynamic lighting effects with a wide range of color options. The beam angle of the light is 55 degrees, allowing for a broad coverage area.
The MYLED-064 is specifically designed as a wall washer light, meaning it can be used to illuminate and highlight walls or other large surfaces with colorful and visually appealing effects. The pixel control feature allows for precise control over individual LEDs, enabling creative patterns and effects.
The light bar comes with a tilt bracket that allows you to adjust the angle according to the specific requirements of the venue or event. This flexibility ensures that you can achieve optimal lighting coverage and effects in different settings.
Technical Data
| Item No. | MYLED-064 |
| Light Source | 8Pcs*15W RGB 3-in-1 LED |
| Max. Power | 120W |
| Work voltage | AC100-240V, 50-60Hz |
| Beam angle | 55degree |
| DMX Channels | 2,3,5,6,12,24CH |
| Operation mode | LED Display |
| Product's dimension | 770.8*158*120mm |
| IP Grade | IP20 |
| Net weight | 4.5KG |
Product Size

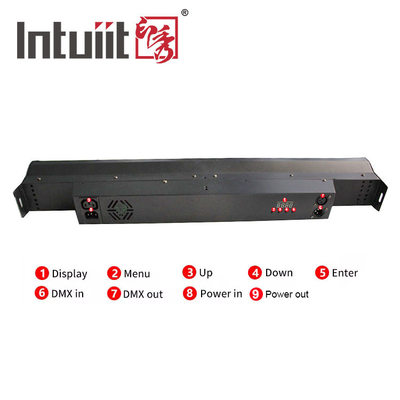

Pproduct Details

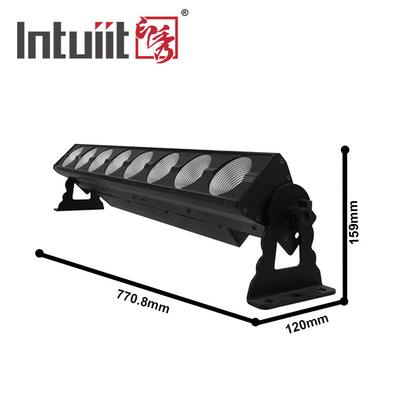

Products' Dimension
Installation Diagram
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading"
