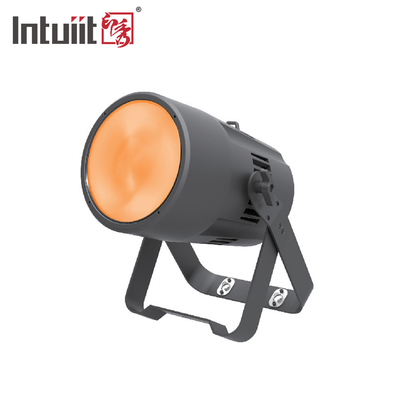

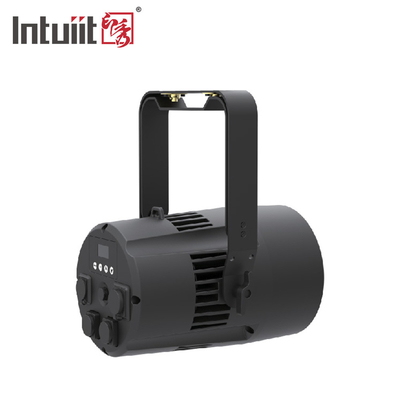

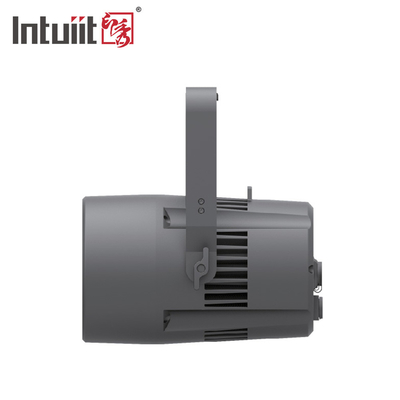

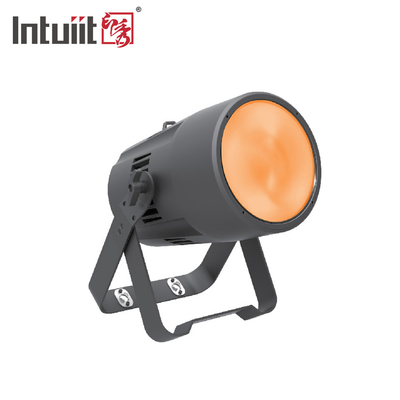

Waterproof Stage Wedding Lighting IP65 Led 150W Cob Par Light
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&Rohs |
| Model Number: | YX-200P-SW |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Carton、flight case |
| Delivery Time: | 30~35 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| Type: | Led Stage Par Light | Light Source: | 150W COB WW&CW LED |
|---|---|---|---|
| Input Voltage: | AC100V-240V | IP Grade: | IP65 |
| Warranty: | 1-year | Power: | 150W |
| Beam Angle: | 10 - 30° | Drive Current: | 2.3A |
| Dimming: | 16Bit | Light Color: | RGBW |
| High Light: | IP65 Wedding Lighting,150W Wedding Lighting,IP65 Waterproof Stage Wedding Lighting |
||
Product Description
The YX-200P-SW is a popular outdoor PAR light designed for stage and event use. It features a 150W Warm&Cool white COB LED, and there are optional variations available with RGBW, RGB, Cool White, or Warm White LEDs. This gives users a wide range of options for color mixing and lighting effects.
The housing of the YX-200P-SW specifically engineered to provide optimal heat sink and color mixing capabilities. It is built with a die-casting process, ensuring durability and protection against outdoor elements. With its IP65 waterproof rating, it is suitable for use in both indoor and outdoor environments.
The YX-200P-SW offers various operating modes, including master/slave, sound activation, built-in programs, auto running, and DMX control. This versatility allows users to customize their lighting setups and create dynamic visual effects.
Overall, the YX-200P-SW is a high-quality outdoor PAR light with a versatile design, robust construction, and multiple LED options, making it suitable for a wide range of stage and event lighting applications.
Specification
| Item Number | YX-200P-SW | |||||
| size of the product | 312*253*360MM | |||||
| size of the inner box | 525*375*300MM | |||||
| size of the master carton | 555*405*640MM | |||||
| QTY | 2PCS/CTN | |||||
| NW | 5.8Kg | |||||
| GW | 7KG | |||||
| housing | die casting magnesium | |||||
| connectors | DMX in/out(5pin),power in/out | |||||
| cooling | with fan | |||||
| voltage | AC100-240V/60-50HZ | |||||
| max power | 171W/AC100V | 155W/AC240V | ||||
| PF | 0.975/AC100V | 0.797/AC240V | ||||
| input currect | 1.770A/AC100V | 0.811A/AC240V | ||||
| power linking | 7pcs/AC100V | 14pcs/AC240V | ||||
| LED | 150W 2-in-1 CW&WW 2200~6500K | |||||
| driver current | 2.3A | |||||
| dimmer | 0-100% | |||||
| strobe | 0-20Hz | |||||
| beam angle | beam angle | 10 - 30degree | spot angle | 18 - 50degree | ||
| flux | 2438 - 2622(lm) | |||||
| protocol | DMX512 | |||||
| DMX channel | 2/3 CH | |||||
| display | OLED display | |||||
| IP rate | IP65 | |||||
| working temperature | -15℃～45℃ | |||||
| distance | W color temperature | F | S | W | ||
| 1m | 6087 | 703200 | 437300 | 326000 | ||
| 2m | 6004 | 20000 | 12000 | 9198 | ||
| 3m | 6004 | 7970 | 5055 | 3887 | ||
| 4m | 5995 | 4570 | 2773 | 2136 | ||
| 5m | 5999 | 2890 | 1778 | 1372 | ||
| distance | W color temperature | F | S | W | ||
| 1m | 6527 | 8524 | 5165 | 3749 | ||
| 2m | 6570 | 2663 | 4636 | 1172 | ||
| 3m | 6572 | 1230 | 746 | 541 | ||
| 4m | 6560 | 723 | 444 | 317 | ||
| 5m | 6577 | 479 | 291 | 207 | ||
Optic:
Installation:
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
