Led Sharpy Beam Moving Head Stage Lighting 7x40W 4 In 1 RGBW Wash Led Moving Head
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | XY-017B |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Inner box + Master Carton |
| Delivery Time: | 25-35days for mass order |
| Payment Terms: | T/T IN ADVANCE (30% Deposit, 70% Balance payment before delivery) |
| Supply Ability: | 10000Pcs/Month |
|
Detail Information |
|||
| Input Frequency Range: | 50Hz~60Hz | Beam Angle: | 4.5° |
|---|---|---|---|
| Power: | 300W | Input Voltage: | AC100-240V,50/60Hz |
| IP Grade: | IP65 | Warranty: | 1 Year |
| Max Power: | 40W 4-In-1 LED | Channel: | 8/12/44CH |
| Light Color: | RGBW | Light Source: | LED |
| Name: | LED Stage Light | Size: | 308*208*393mm |
| High Light: | Led Sharpy Beam Moving Head,RGBW Sharpy Beam Moving Head,RGBW Wash Led Moving Head |
||
Product Description
Led Sharpy Beam Moving Head Stage Lighting 7x40W 4in1 RGBW Wash Led Moving Head
7x40w Rgbw 4in1 Led Beam Wash Pixel Moving Head Light Dmx Stage Moving Head
Professional Bee Eye 7pcs 40w DMX Beam Wash Zoom 4in1 RGBW 7x40w Mini Beam LED Moving Head Light For Stage DJ Disco
High quality guanzhou Dasen supplier stage lighting 7x 40W 4in1 RGBW 4.5degree moving head light

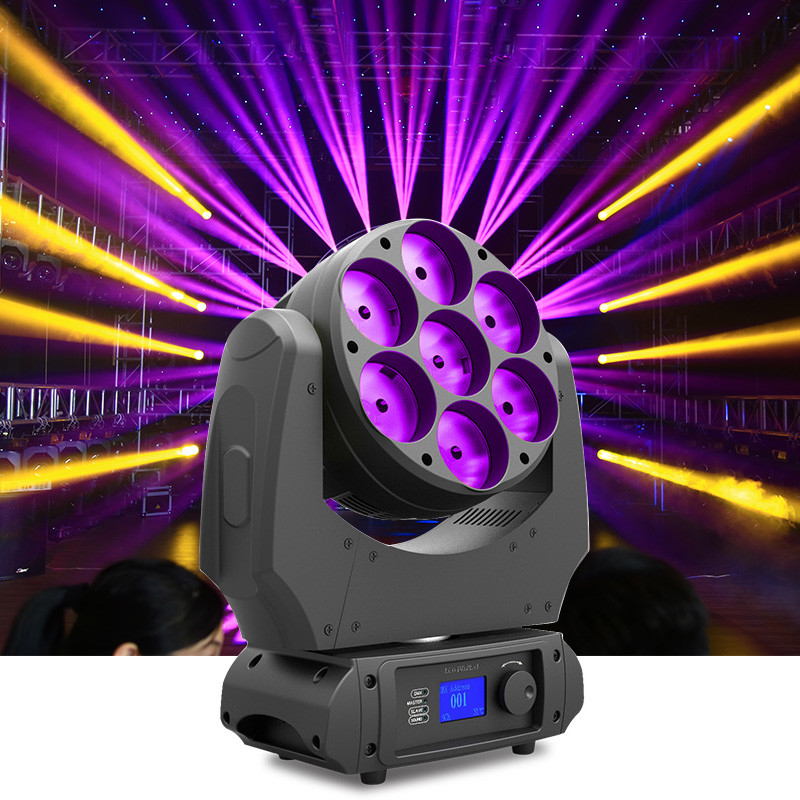

XY-017B is high brightness moving head beam bar,featuring 7Pcs*30W OSRAM RGBW 4-in-1 LED, total 330W, beam angle 4.5 by our private optical lens, very narrow beam effect, excellent color mixing, and super brightness; Pixel control, light weight; advanced high efficiency low noise cooling and movement control systems, pan 540°, Tilt 270°, rich color effects, linear dimming and selectable dimming curves system. DMX control, 3Pin or 5pin DMX, PowerCon in & Out connection,and a multi-voltage universal auto switching power supply (AC100-240V). suitable for bars, clubs, stage performance,and all kinds of events.
Technical Data
| Item No. | XY-017B |
| Light Source | 7Pcs*30W RGBW 4-in-1 LED |
| Max. Power | 330W |
| Work voltage | AC100-240V, 50/60Hz |
| Beam angle | 4.5º |
| Cooling | Fins+Fan |
| Control Protocol | DMX512 |
| DMX Channels | 8,12,44CH |
| Pan/Tilt | Pan 540º,Tilt 270º |
| Product's Dimension | 308*208*393mm |
| Net Weight | 6KG |
Light Distribution Data
Product's Dimension
Installation Diagram
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
