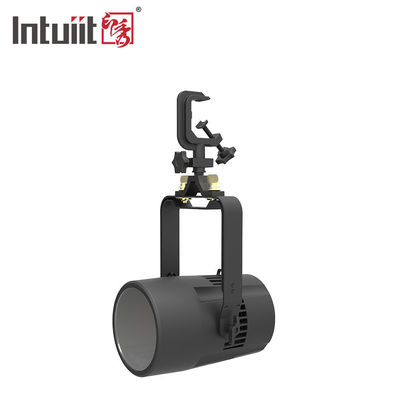

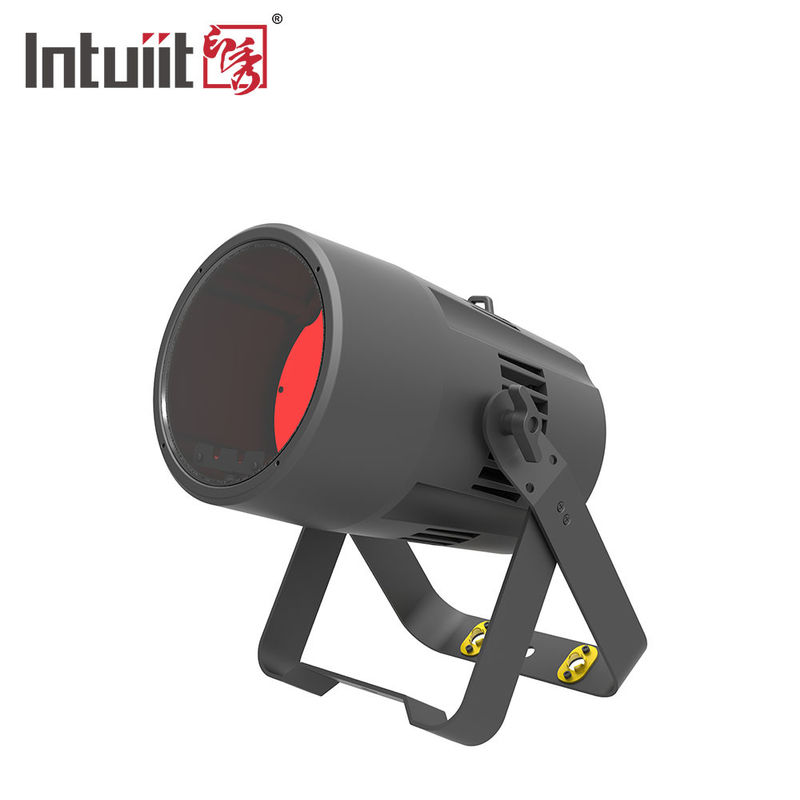

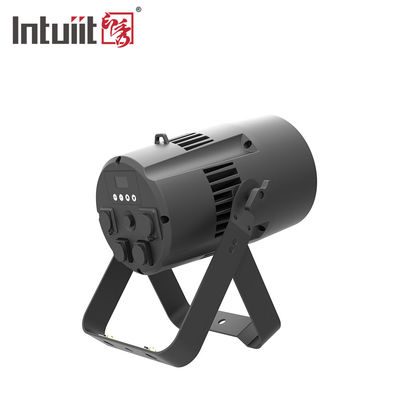

Professional Event Stage Lighting Par 150w LED 4 In 1 RGBW COB Waterproof
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&Rohs |
| Model Number: | YX-200P-WW |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiated |
|---|---|
| Packaging Details: | Carton、flight case |
| Delivery Time: | 30~35 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| Type: | Stage Par Light | Light Source: | LED |
|---|---|---|---|
| Lamp Power: | 170W | Input Voltage: | AC100V-240V |
| IP Rate: | IP65 | Warranty: | 1-year |
| High Light: | 150w Event Stage Lighting Par,Waterproof Event Stage Lighting Par,COB LED Par Can Stage Lights |
||
Product Description
Waterproof Professional Event Stage Lighting Par 150w LED 4 In 1 RGBWProfessional COB Light
Outdoor 150W WW COB LED Par Can Stage Lights
YX-200P-WW
Die casting Private black housing Outdoor COB Stage LED Par 200W WW Par for Stage & Event
YX-200P-WW is a popular parcan that released in 2019. It is 150W Warm white COB LED. What’s more, there are RGBW/RGB/Cool White/Bli-White LED optional. The rich choice would give you more idea to apply it for stage & event.
The housing is our private tooling which matches the best construction design. So the heat sink, the color mixing must be no problem. It include the rich modes like master/slave, sound, built-in problem, auto running, DMX. The very good performance would earn a lot of benefit for the users.
Outdoor COB LED parcan could be used in stage both indoor and outdoor. Customer could choose cable type connector or Seetronic exterior socket type for POWER&DMX in & out. So it would also be a good option in rental market.
Specification
| Item Number | YX-200P-WW | |||||
| size of the product | 312*253*360MM | |||||
| size of the inner box | 525*375*300MM | |||||
| size of the master carton | 555*405*640MM | |||||
| QTY | 2PCS/CTN | |||||
| NW | 5.8Kg | |||||
| GW | 7KG | |||||
| housing | die casting magnesium | |||||
| connectors | DMX in/out(5pin),power in/out | |||||
| cooling | with fan | |||||
| voltage | AC100-240V/60-50HZ | |||||
| max power | 170W/AC100V | 160W/AC240V | ||||
| PF | 0.975/AC100V | 0.797/AC240V | ||||
| input currect | 1.751A/AC100V | 0.834A/AC240V | ||||
| power linking | 7pcs/AC100V | 15pcs/AC240V | ||||
| LED | 150W WW COB 3000K RA=95 | |||||
| driver current | 2.3A | |||||
| dimmer | 0-100% | |||||
| strobe | 0-20Hz | |||||
| beam angle | beam angle | 10 - 30degree | spot angle | 20 - 52degree | ||
| flux | 3145 - 3641(lm) | |||||
| protocol | DMX512 | |||||
| DMX channel | 2/3 CH | |||||
| display | OLED display | |||||
| IP rate | IP65 | |||||
| working temperature | -15℃～45℃ | |||||
| distance | W color temperature | WW | ||||
| 1m | 2860 | 29999 | ||||
| 2m | 2862 | 19800 | ||||
| 3m | 2853 | 8600 | ||||
| 4m | 2855 | 4700 | ||||
| 5m | 2854 | 2750 | ||||
| distance | W color temperature | WW | ||||
| 1m | 2962 | 9999 | ||||
| 2m | 2964 | 2800 | ||||
| 3m | 2969 | 1280 | ||||
| 4m | 2955 | 770 | ||||
| 5m | 2945 | 460 | ||||
Optic:
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
