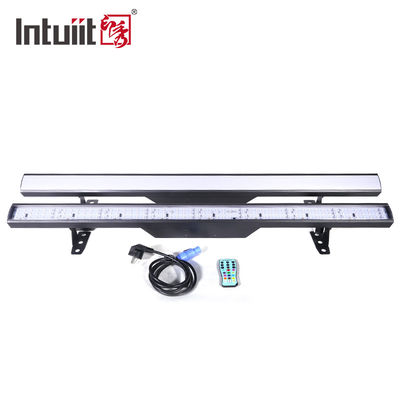

224*0.2W RGB 3 In 1 Indoor DJ Linear Light Bar For Facade Wedding Stage
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE |
| Model Number: | CT-024-1M-RGB |
Payment & Shipping Terms:
| Packaging Details: | Cartons |
|---|---|
| Delivery Time: | 15-30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20000pcs/month |
|
Detail Information |
|||
| LED Light Source: | 224*0.2W RGB SMD5050 | Max Power: | 52W |
|---|---|---|---|
| Data Protocol: | DMX512,RDM | Product Measurement: | 1003*100*128.5MM |
| IP Grade: | IP20 | Working Temperature: | -20°~+45° |
| Beam Angle: | 113° | DMX Channels: | 3/5/8/48/54 CH |
| Operation Mode: | Auto Running,Sound Mode , Built-in Programs, M/S,DMX 512, RDM , IR | Lampshade Material/Color: | PMMA / Milky White |
| High Light: | Indoor DJ Linear Light Bar,RGB Linear Light Bar,DMX LED Wall Washer |
||
Product Description
224*0.2W RGB 3-in-1 Indoor DJ Linear Light Bar DMX LED Wall Washer for Facade Wedding Stage Lighting
Dj Bar Led Lighting Led Wall Washer Bar RGB 3in1 Night Club DMX Dj Light Bar
Product Description
DMX rgb color changing 224x0.2w rgb 3in1 led wash bar light ip20 led wall washer
| Product Name | 224pcs RGB Section Wall Washer | ||||||||
| Item Number | CT-024-1M-RGB | ||||||||
| Physical Character | Product Size | 1003*100*128.5MM | |||||||
| Inner Packing Size | 107.5*14*16.5CM | ||||||||
| Outer Packing Size | 110*30.5*36.5CM | ||||||||
| N.W. | 2.32KG | ||||||||
| G.W. | 3.2KG | ||||||||
| Housing Material | Tensile Aluminum + Metal Plate | ||||||||
| Housing Color | Black | ||||||||
| Lampshade Material/Color | PMMA / Milky White | ||||||||
| Cooling mode | Convection | ||||||||
| Electric Parameters | Input voltage | AC100-240V,60/50Hz | |||||||
| Power consumption | 52W/AC100V | 51W/AC240V | |||||||
| Power Factor | 0.991/AC100V | 0.86/AC240V | |||||||
| Input Current | 0.52A/AC100V | 0.25A/AC240V | |||||||
| Power Linking | 25pcs/AC100V | 52pcs/AC240V | |||||||
| DMX Linking | / | / | |||||||
| LED Light Source | 224*0.2W RGB SMD5050 | ||||||||
| Control IC | CPU APM32F103CBT6 LOFP48 | ||||||||
| Drive Current | 20MA | ||||||||
| Optical System | Dimming | 0-100% | |||||||
| Strobe | / | ||||||||
| Beam Angle | Beam | 113° | Spot | 161° | |||||
| Lumen | 364 lm | ||||||||
| Luminous Efficiency |
8.1 lm/W | ||||||||
| CCT | / | ||||||||
| CRI | 52.7 | ||||||||
| Control | Control protocol | DMX512-RDM | |||||||
| Power cable | DMX in/out(3 pin),power in/out | ||||||||
| DMX cable | |||||||||
| Lamp Head | adjustable | ||||||||
| Power Installation | Built in power supply | ||||||||
| DMX Channels | 3/5/8/48/54 CH | ||||||||
| Operation Mode | Button | ||||||||
| Display | OLED | ||||||||
| Function | Auto running,Sound mode,IR, Built-in programs, M/S,DMX 512, RDM | ||||||||
| Safety/ Certificate |
Certificate | ROHS,CE | |||||||
| IP Grade | IP20 | ||||||||
| Working Temperature | -20°~+45° | ||||||||
| Lux | Distance | W Color Temperature | F | R | G | B | W | UV | A |
| 0.5M | 540 | 110 | 357 | 82 | |||||
| 1M | 190 | 38 | 129 | 30 | |||||
| 1.5M | 100 | 23 | 66 | 15 | |||||
