IP20 52W LED Wall Washer Light Bar RGB 3 In 1 Night Club DMX Dj Light Bar

IP20 52W LED Wall Washer Light Bar RGB 3 In 1 Night Club DMX Dj Light Bar

Product Details:

Place of Origin: China
Brand Name: Intuiit
Certification: CE
Model Number: CT-024-1M-RGB

Payment & Shipping Terms:

Packaging Details: Cartons
Delivery Time: 15-30days
Payment Terms: L/C, T/T
Supply Ability: 20000pcs/month
Get Best Price Contact Now

Detail Information

LED Light Source: 224*0.2W RGB SMD5050 Max Power: 52W
Data Protocol: DMX512,RDM Product Measurement: 1003*100*128.5MM
IP Grade: IP20 Working Temperature: -20°~+45°
Beam Angle: 113° DMX Channels: 3/5/8/48/54 CH
Operation Mode: Auto Running,Sound Mode , Built-in Programs, M/S,DMX 512, RDM , IR Lampshade Material/Color: PMMA / Milky White
High Light:

52W LED Wall Washer Light Bar


IP20 LED Wall Washer Light Bar


DMX Dj Light Bar

Product Description

 Dj Bar Led Lighting Led Wall Washer Bar RGB 3in1 Night Club DMX Dj Light Bar

Product Description
DMX rgb color changing 224x0.2w rgb 3in1 led wash bar light ip20 led wall washer
Product Name 224pcs RGB Section Wall Washer
Item Number CT-024-1M-RGB
Physical Character Product Size 1003*100*128.5MM
Inner Packing Size 107.5*14*16.5CM
Outer Packing Size 110*30.5*36.5CM
N.W. 2.32KG
G.W. 3.2KG
Housing Material Tensile Aluminum + Metal Plate
Housing Color Black
Lampshade Material/Color PMMA / Milky White
Cooling mode Convection
Electric Parameters Input voltage AC100-240V,60/50Hz
Power consumption 52W/AC100V 51W/AC240V
Power Factor 0.991/AC100V 0.86/AC240V
Input Current 0.52A/AC100V 0.25A/AC240V
Power Linking 25pcs/AC100V 52pcs/AC240V
DMX Linking / /
LED Light Source 224*0.2W RGB SMD5050
Control IC CPU APM32F103CBT6 LOFP48
Drive Current 20MA
Optical System Dimming 0-100%
Strobe /
Beam Angle Beam 113° Spot 161°
Lumen 364 lm
8.1 lm/W
CRI 52.7
Control Control protocol DMX512-RDM

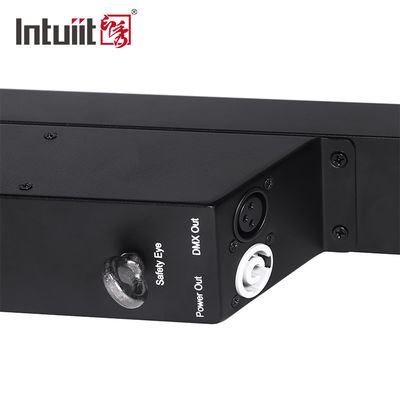

Power cable DMX in/out(3 pin),power in/out
DMX cable
Lamp Head adjustable
Power Installation Built in power supply
DMX Channels 3/5/8/48/54 CH
Operation Mode Button
Display OLED
Function Auto running,Sound mode,IR, Built-in programs, M/S,DMX 512, RDM
Certificate ROHS,CE
IP Grade IP20
Working Temperature -20°~+45°
Lux Distance W Color Temperature F R G B W UV A
0.5M   540 110 357 82
1M   190 38 129 30
1.5M   100 23 66 15
Product details

CT-024 3CT-024 1CT-024 2CT-024 6


CT-024 10


CT-024 13


CT-024 12


CT-024 4


CT-024 5
