240V IP65 8 × 5W RGBW 4 In 1 LED Edge light
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE |
| Model Number: | XQ028P17 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Packaging Details: | Carton 1150*350*175mm（2PCS/carton） |
| Delivery Time: | 25-35days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 pcs/Month |
|
Detail Information |
|||
| Type: | Outdoor Wall Washer | Light Source: | LED |
|---|---|---|---|
| Lamp Power: | 36W | Input Voltage: | AC100-240V |
| IP Rated: | IP65 | Warranty: | 2 Years |
| High Light: | RGBW 4 In 1 LED Edge light,240V IP65 LED Edge light,36W Outdoor wall washer |
||
Product Description

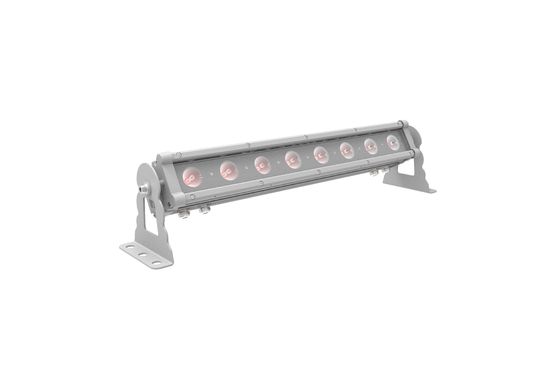

Compact Design 8*5W RGBW 4in 1 Edgelight Tensile Aluminum material led light 0.5M LED bar
XQ028P17 is a hotsale and good color mixing waterproof IP65 led bar,It's made of tensile aluminum,light in weight ,1800K-6500k,RGB, RGBW led optional,super brightness, suitable for operation in all-weather conditions. It supports DMX512 protocol and RDM function
It has the length of 1m, 0.5m, 0.3m optional for project use.With flexible section control function, it is possible to realize colorful pixel effect for the hotels, shopping malls, buildings, square landscapes, municipals, bridges, and other outdoor architetural lighting projects to provide new lighting solutions.
Specification:
| Description | Outdoor wall washer | |
| Model | XQ028P17 | |
| Beam Angle | 22° | Spot Angle:47° |
| Product Size | 618*120*130MM | |
| Packing Size | 700*350*175MM | |
| Quantity | 2PCS/Carton | |
| N.W. | 3.5KG | |
| Input Voltage | AC100-240V,60/50HZ | |
| Max Power | 36W/AC110V | 36W/AC240V |
| Power Factor | 0.9/AC110V | 0.9/AC240V |
| Input Current | 0.8A/AC110V | 0.33A/AC240V |
| Power Linking | 36pcs@AC110V | 72pcs@AC240V |
| Light Source | LED | |
| Control | DMX,RDM | |
| Drive Current | 331MA | |
| Dimming | 0-100% | |
| DMX Channel | 4/6/7/8CH | |
| IP Rated | IP65 | |
Product size:
Product installation:
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the fault?
A: Firstly: Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly: during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
