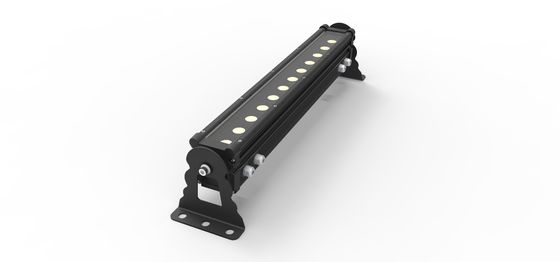

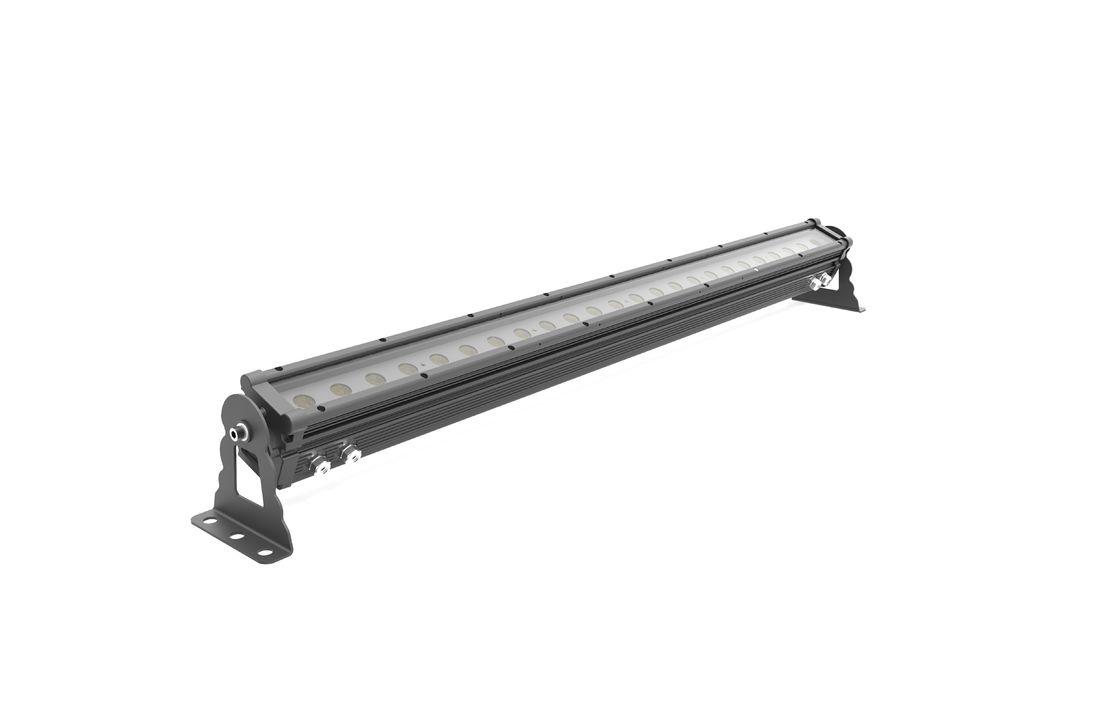

18 W CRI 70 6000K External Wall Washer Lights

18 W CRI 70 6000K External Wall Washer Lights
18 W CRI 70 6000K External Wall Washer Lights 18 W CRI 70 6000K External Wall Washer Lights

Large Image :  18 W CRI 70 6000K External Wall Washer Lights

Product Details:
Place of Origin: China
Brand Name: Intuiit
Certification: CE RoSH
Model Number: XQ028P
Payment & Shipping Terms:
Minimum Order Quantity: 100

18 W CRI 70 6000K External Wall Washer Lights

Description
Type: Led Wall Washer Light Source: LED
Input Voltalge: AC100~240V Lamp Power: 72/36/18W
IP Rated: IP65 Warranty: 2 Years
High Light:

6000K External Wall Washer Lights

,

CRI 70 External Wall Washer Lights

IP65 dmx linear 72/36/18W 100cm/50cm/30cm RGBW led wall washer lamp goodwill



IP65 RGBW LED External Wall Washer Lights



XQ028P is a hotselling IP65 linear wall washer light, suitable for operation in all-weather conditions. It is compact size, light in weight, able to achieve seamless stitching. It supports DMX512 protocol



It has the length of 1m, 0.5m, 0.3m optional for project use.With flexible section control function, it is possible to realize colorful pixel effect for the hotels, shopping malls, buildings, square landscapes, municipals, bridges, and other outdoor landscape lighting projects to provide new lighting solutions.



Specification:



Item Number XQ028P10(1M)
XQ028P11(0.5M)
XQ028P09(0.3M)
XQ028P04(1M)
XQ028P05(0.5M)
XQ028P03(0.3M)
XQ028P06(1M)
XQ028P07(0.5M)
XQ028P08(0.3M)

XQ028P12(1M)

LED Qty 36pcs(1M) /24pcs(0.5M) / 16pcs(0.3M)
Beam Angle 20/30/40/20*40°
Spot Angle 40/55/75/45*75°
Lumen 5418lm / 2644lm /1361lm 2580lm / 1305lm /715lm 1715lm
CRI Ra≥70 / /
Color Tempreture 1800∽6000K Optional RGBW RGBW(W:3000 / 4000 / 6000K Optional)
Product Measurement 1117*120*130MM(1M) / 617*120*130MM(0.5M) / 417*120*130MM(0.3M)
N.W. 6kg(1M) / 3.5kg(0.5M) /3.4kg(0.3M)
Input Voltage Range AC100~240V
Watts 72W(1M) / 36W(0.5M) / 18W(0.3M)
Power Factor >0.9
Housing Material Tensile Aluminum + die-cast aluminium
Color Matt black / Grey
Cooling Natural convection cooling
Control Protocol ON/OFF DMX512 DMX512 DMX512
Segmented Control / 4Section(1M)/2Section(0.5M)/1Section(0.3M)
Channel /
Power /Installation Independent
Conection 3pin rubber cable:input/output black rubber cable 4 Pin In & Out
Power Linking 16cs(1m) / 32pcs(0.5m) /64pcs(0.3m)
DMX Linking / 32pcs(1M) / 64pcs(0.5M) / 128pcs(0.3M)
Certification CE,RoHS
IP Grade IP65



Opic:

18 W CRI 70 6000K External Wall Washer Lights 0



Installation:

18 W CRI 70 6000K External Wall Washer Lights 1

Size:

18 W CRI 70 6000K External Wall Washer Lights 2





FAQ:



Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days

Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.

Fourthly:We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.

Q8: How to deal with the fault?
A: Firstly: Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly: during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.

Q9: Do you work a project?

A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
