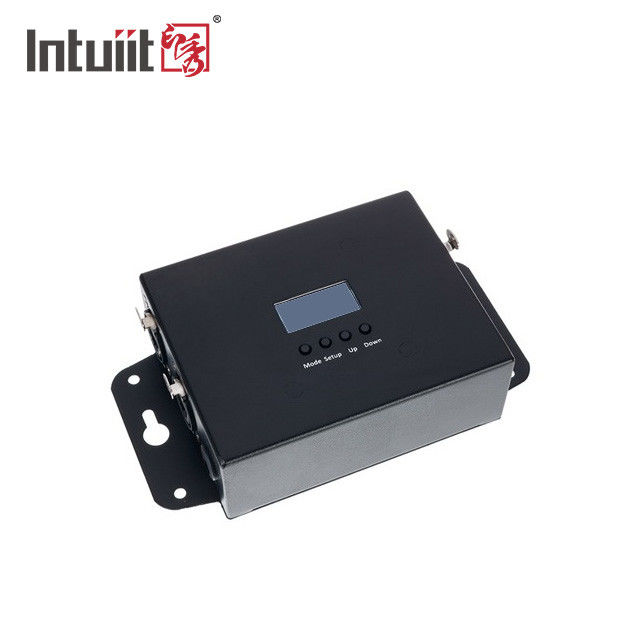

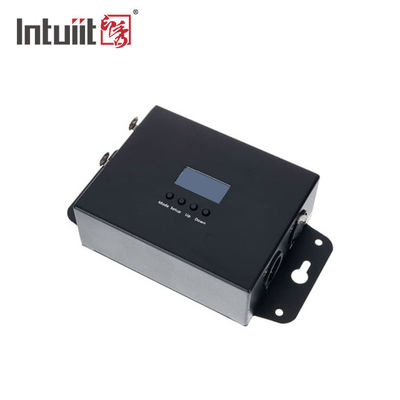

10W DMX Light Controller
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE |
| Model Number: | MYLED-301B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Carton |
| Delivery Time: | 15-25 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000pcs/months |
|
Detail Information |
|||
| Type: | DMX Controller | Power Supply: | DC 5V, 10W |
|---|---|---|---|
| Protocol: | DMX512 / ArtNet / RDM / SACN | Operation Mode: | OLED+Buttons |
| IP Rated: | IP20 | Warranty: | 2 Years |
| Highlight: | 10w dmx led controller,ip20 dmx controller for led lights,dc 5v dmx512 controller |
||
Product Description
DMX controller DC5V 10W support DMX512 / ArtNet / RDM / sACN controller for MYLED-301B
MYLED-301B is a DMX controller supports the flexible transformation in RDM function,Ethernet and DMX protocol
We can set up the Ethernet on the same local area network according to different control equipment
Products controlled performing and running stably through the technology of signal anti- interference.
Dedicated development for MYLED-301B
Specification:
| ArtNet Convertor | |
| Technical data | |
| Item No. | MYLED-301B |
| Power supply | DC 5V, 10W |
| Protocol | DMX512 / ArtNet / RDM / sACN |
| Connection | DMX in / out(3Pin), Power in, 2*Ethernet |
| Operation Mode | OLED+Buttons |
| Dimensions | 160*85*43MM |
| Weight | 0.34 Kg |
| IP Rate | IP20 |
Main function:
♦ Bidirectional ArtNet Convertor
♦ Configure via integrated display
♦ Adjustable DMX repetition rate(10-40 Hz)
♦ For 512 channels / one DMX universe
♦ Convert either ArtNet to DMX or DMX to ArtNet
♦ LEDs indicator to show work status
♦ Support protocols: DMX, RDM, Art-Net,sACN
Detail:
