Strong Narrow Beam Outdoor Compact Design 15W RGBW LED stage Par light
Product Details:
Place of Origin: | China |
Brand Name: | Intuiit |
Certification: | CE&Rohs |
Model Number: | YX-003P |
Payment & Shipping Terms:
Minimum Order Quantity: | 50pcs |
---|---|
Packaging Details: | Carton、flight case |
Delivery Time: | 30~35 days |
Payment Terms: | T/T |
Supply Ability: | 10000pcs/month |
Detail Information |
|||
Type: | Stage Par Light | Light Source: | LED |
---|---|---|---|
Lamp Power: | 15W | Input Voltage: | AC100V-240V |
IP Rate: | IP65 | Warranty: | 1-year |
Product Description
YX-003P

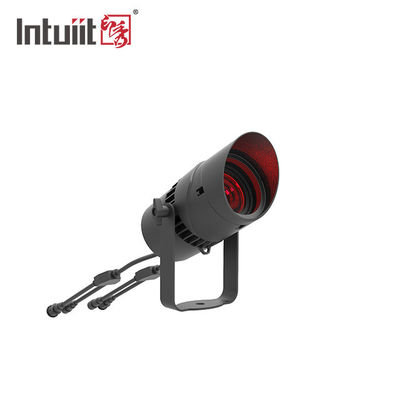

Strong Narrow Beam Outdoor Compact Design 15W RGBW LED stage Par light
YX-003P is a strong narrow beam par. It is 4.5degree len which had strong beam effect. RGBW could have good color mixing. There are also 20degree, 40degree lens optional.
It is IP65 that could be used in many outdoor events. It include the rich modes like master/slave, built-in problem, auto running, DMX. The very good performance would earn a lot of benefit for the users.
Specification
Item number | YX-003P | |||||
Product Dimension | 165*161*193mm | |||||
Inner box | 295*200*220mm | |||||
Outer box | 625*320*475mm(6pcs/ctn) | |||||
Weight | N.W 1.96kg /G.W 3.6kg | |||||
Connector | DMX in/out,power in/out | |||||
Power Voltage | AC100V ~ 240V,60/50Hz | |||||
Power Consumption | 20W | 19W@110V | 20W@240V | |||
Power linking | 20pcs@110V | 40pcs@240V | ||||
LED | 4-IN-1 RGBW | |||||
Dimming | 0-100%(13-bit) | Strobe | 0-20Hz | |||
Beam angle | 4.5degree | |||||
DMX channel | 4,6,10CHs | |||||
IP | IP65 | |||||
Working Tempreture | -20 ~ +45℃ |
Dimension sheet:
Installation:
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A:Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A:Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
