37x10W Zoom Beam Wash Moving Head Light For Stage Lighting Effect With RGBW 4in1 LED And DMX Control Dj Disco And Nightclub
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | XY-037 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Inner box + Master Carton |
| Delivery Time: | 25-35days for mass order |
| Payment Terms: | T/T IN ADVANCE (30% Deposit, 70% balance payment before delivery) |
| Supply Ability: | 10000Pcs/Month |
|
Detail Information |
|||
| Type: | Led Zoom Moving Head Light | LED Qty: | 37*10W RGBW 4-in-1 LED |
|---|---|---|---|
| Power: | 370W | Input Voltage: | AC100-240V, 50-60Hz |
| Lumen: | 4681lm | Warranty: | 1 Year |
| Color Tempreture: | 6500K | Beam Angle: | 5°-60° |
| DMX Channel: | 9CH、12CH、29CH | N.W.: | 13.8KG |
| Highlight: | RGBW 4in1 LED Stage Light,37x10W LED Stage Light,Dj Disco LED Stage Light |
||
Product Description

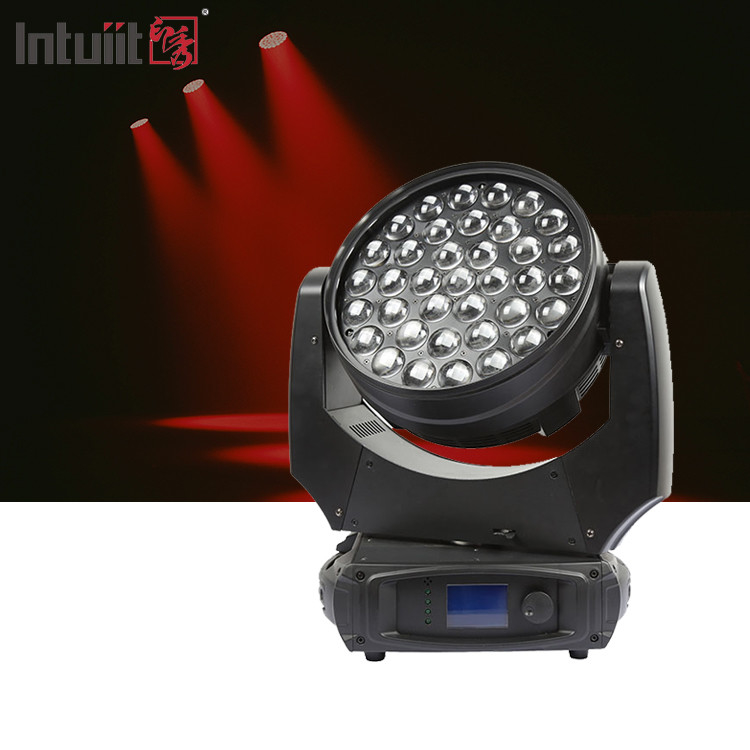

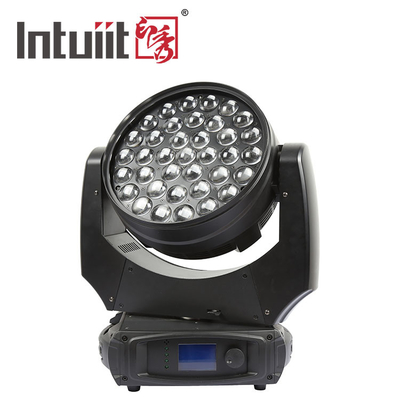

XY-037 LED Moving Head Wash Light
Overview
The XY-037 is a high-performance LED moving head wash light engineered to deliver exceptional brightness, vibrant color mixing, and precise beam control. Designed for stage performances, events, and large venues, it combines cutting-edge technology with reliable performance to meet the needs of professional lighting setups.
Key Features
1. Powerful LED Configuration
-
37 x 10W RGBW 4-in-1 LEDs: Delivers vibrant colors and high brightness for stunning visual impact.
-
Total Power Consumption: 370W, ensuring energy-efficient operation without compromising performance.
2. Zoom and Beam Control
-
Wide Zoom Range: 5° to 60°, offering flexibility for both narrow beams and wide washes.
-
Adjustable LED Ring Control: Enables versatile beam shaping and coverage to suit any application.
3. Smooth Movement and Dynamic Effects
-
Pan Range: 540° for extensive horizontal coverage.
-
Tilt Range: 270° for vertical flexibility.
-
Rich Color Effects: Features linear dimming and selectable dimming curves for seamless transitions.
4. Efficient Cooling System
-
High-efficiency, low-noise cooling and movement control systems ensure reliable and quiet operation, even during extended use.
5. Advanced Control and Connectivity
-
DMX Control: Compatible with 3-pin and 5-pin XLR sockets for easy integration into lighting systems.
-
PowerCon In/Out: Simplifies daisy-chaining for efficient setup and cable management.
-
Universal Power Supply: Auto-switching (AC100-240V) ensures global compatibility.
Applications
The XY-037 is a versatile lighting solution ideal for:
-
Stage Performances: Perfect for concerts, live shows, and theatrical productions.
-
Stage Rim Lighting: Enhances stage aesthetics with vibrant color washes.
-
Auditoriums and Large Venues: Provides powerful illumination for expansive spaces.
-
Banquet Halls and Bars: Creates dynamic and engaging atmospheres for events.
-
Rental Companies: A reliable and adaptable choice for rental setups.
Why Choose the XY-037
The XY-037 LED Moving Head Wash Light is designed to elevate any lighting setup with its powerful output, flexible beam control, and smooth movement capabilities. Whether you’re lighting a stage, enhancing an event, or providing rental solutions, this professional-grade fixture delivers stunning visual impact and unmatched performance.
Technical Data
| Item No. | XY-037 |
| Light Source | 37Pcs*10W RGBW 4-in-1 LED |
| Max. Power | 370W |
| Input voltage | AC100-240V, 50/60Hz |
| Beam angle | 5-60º |
| Lumen | 4681lm |
| Control Protocol | DMX512 |
| DMX Channels | 9,12,29CH |
| Pan/Tilt | Pan 540º, Tilt 270º |
| IP Grade | IP20 |
| Product's Dimension | 439*249*510mm |
| Net Weight | 13.8KG |
Light Distribution Data
Product's Dimension
Installation Diagram

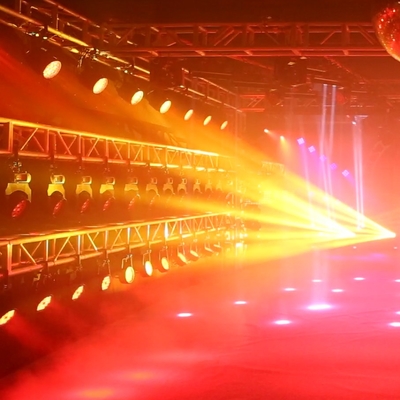

Effect shows
