160W cheap flood lights outdoor stage empty led square floodlight fixture
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE&RoHS |
| Model Number: | FX-005P |
Payment & Shipping Terms:
| Minimum Order Quantity: | MOQ 50Pcs |
|---|---|
| Packaging Details: | Inner box + Master Carton |
| Delivery Time: | 25-35days for mass production |
| Payment Terms: | T/T IN ADVANCE (30% Deposit, 70% balance before delivery) |
| Supply Ability: | 10000Pcs/month |
|
Detail Information |
|||
| Type: | LED Flood Light | Light Source: | 10W RGBW 4-in-1 LED |
|---|---|---|---|
| Max. Power: | 160W | Input Voltage: | AC100-240V, 50Hz/60Hz |
| IP Grade: | IP65 | Warranty: | 1 Year |
| Highlight: | 160w led outdoor flood light fixtures,rgbw led outdoor flood lights,5196lmled floodlight |
||
Product Description
160W cheap flood lights outdoor stage empty led square floodlight fixture

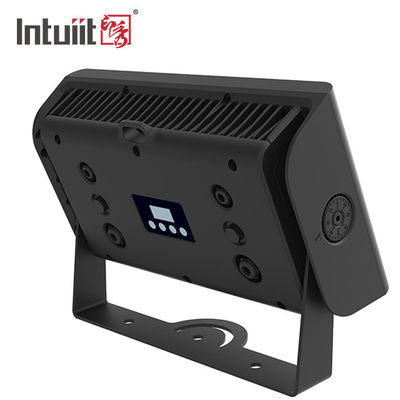

FX-005P is IP65 rated Stage LED Flood light, it has very compact design, using 24Pcs*10W RGBW 4-in-1 LED, total power is 160Watts, 20degree and 40degree beam angles for optional, OLED display with 4 touch buttons control panel, this stage led flood light has very good color mixing, high brightness, very suitable for all kinds of stage and outdoor lighting projects.
| Product Name | LED Outdoor Flood Light | ||
| Item Number | FX-005P | ||
| Product Measurement | 385*101*270MM | ||
| Inner Packing Size | 460*345*190MM | ||
| Packing Quantity | 2pcs/Carton | ||
| N.W./G.W. | 14KG/15.6KG | ||
| Housing Material/Color | Die-cast Magnesium alloy/Matt Black | ||
| Device Linking | DMX in/out(3 pin),power in/out | ||
| Max Power | 160W | 162W @100V | 158W @240V |
| Power Factor | 0.993/AC100V | 0.886/AC240V | |
| Input Current | 1.7A/AC100V | 0.8A/AC240V | |
| Power line System | European/American | 7 PCS @100V | 16 PCS @240V |
| Beam Angle(Optional) | 20/40° | Spot Angle | 60° |
| Data Protocol | DMX512 | ||
Light Distribution Data
Product's Dimension
Installation Diagram
