LED Wall Washer Lighting 36W IP65 LED Washer Light Wall Wsher Led Light

Product Details:

Place of Origin: China
Brand Name: Intuiit
Certification: CE
Model Number: IXQ17C

Payment & Shipping Terms:

Minimum Order Quantity: 100
Packaging Details: Carton
Delivery Time: 25-35days
Payment Terms: L/C, T/T
Supply Ability: 10000pcs per months
Get Best Price Contact Now

Detail Information
Type: LED Architectural Lighting Light Source: LED
Input Voltage: DC24V Lamp Power: 36W
IP Rated: IP65 Warranty: 2 Years

Product Description

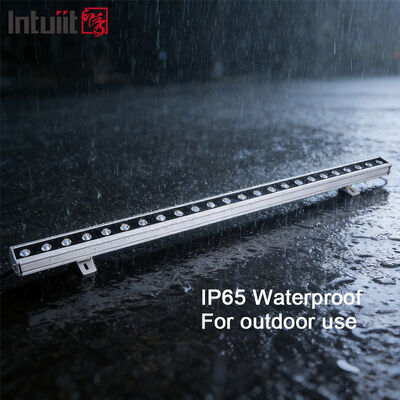

IXQ17C is a high-performance RGBW LED wall washer featuring DMX512 and RDM support, delivering exceptional color mixing in a compact, lightweight, and IP65-rated waterproof housing—designed for reliable all-weather operation. Its seamless stitching capability ensures clean, continuous lines for architectural applications.

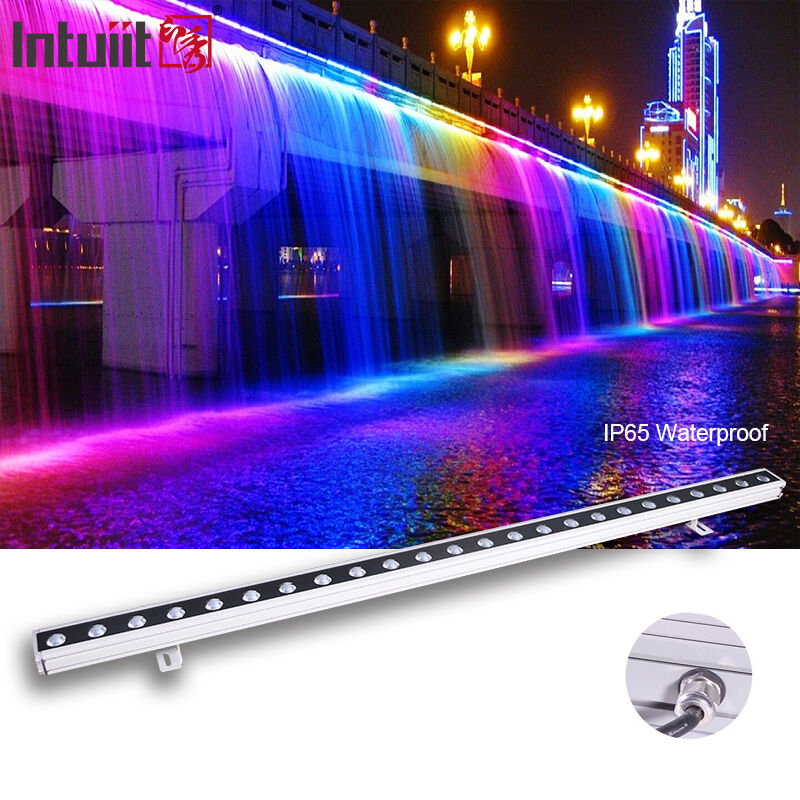

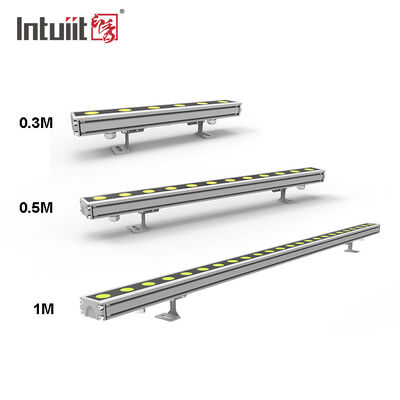

Available in 1m, 0.5m, and 0.3m lengths, the fixture supports flexible section control to enable dynamic pixel-mapping effects. Ideal for hotels, shopping malls, building facades, plazas, municipal landmarks, bridges, and other outdoor landscape lighting projects, it offers a versatile and future-ready lighting solution.





1. Specification

Item Number IXQ17C31(1M)
IXQ17C39(0.5M)
IXQ17C40(0.3M)		 IXQ17C16(1M)
IXQ17C34(0.5M)
IXQ17C33(0.3M)		 IXQ17C17(1M)
IXQ17C35(0.5M)
IXQ17C38(0.3M)		 IXQ17C20(1M)
IXQ17C36(0.5M)
IXQ17C29(0.3M)		 IXQ17C47(1M)
LED Qty 24pcs(1M) / 12pcs(0.5M) / 6pcs(0.3M) 16pcs(1M)
Beam Angle 20°/30°/40°/20*40°Optional
Spot Angle 40°/50°/75°/45*75°Optional
Lumen 2260lm / 1116lm / 710lm 1050lm / 650lm / 318lm 1240lm / 610lm / 430lm 1240lm
CRI Ra≥70 / / /
Color Tempreture 2700∽6000K Optional RGB RGBW(W:3000 / 4000 / 6000K Optional)
Product Measurement 1000*47*63MM(1M) / 510*47*63MM(0.5M) / 300*47*63MM(0.3M)
N.W. 1.9kg(1M) / 1.2kg(0.5M) / 0.8kg(0.3M)
Input Voltage Range DC24V
Watts 36W(1M) / 18W(0.5M) / 9W(0.3M)
Power Factor ＞0.9
Housing Material Tensile Aluminum + die-cast aluminium
Color Matt black / Grey
Cooling Natural convection cooling
Control Protocol ON/OFF DMX512 DMX512 DMX512 DMX512-RDM
Segmented Control / 4Section(1M)/2 Section(0.5M)/1Section(0.3M) 4 Section(1M)
Channel / 4 / 6 / 7 / 16 CH
Power /Installation Independent
Conection 2pin rubber cable:input/output black rubber cable 5 Pin In & Out
Power Linking 5pcs(1m) / 8pcs(0.5m) / 12pcs(0.3m)
DMX Linking / 32pcs(1M) / 64pcs(0.5M) / 128pcs(0.3M)
Certification CE,RoHS
IP Grade IP65

LED Wall Washer Lighting 36W IP65 LED Washer Light Wall Wsher Led Light 0LED Wall Washer Lighting 36W IP65 LED Washer Light Wall Wsher Led Light 1LED Wall Washer Lighting 36W IP65 LED Washer Light Wall Wsher Led Light 2LED Wall Washer Lighting 36W IP65 LED Washer Light Wall Wsher Led Light 3



Product optic

LED Wall Washer Lighting 36W IP65 LED Washer Light Wall Wsher Led Light 4

Product size

LED Wall Washer Lighting 36W IP65 LED Washer Light Wall Wsher Led Light 5

Product installation:

LED Wall Washer Lighting 36W IP65 LED Washer Light Wall Wsher Led Light 6





2. Effect show

LED Wall Washer Lighting 36W IP65 LED Washer Light Wall Wsher Led Light 7

LED Wall Washer Lighting 36W IP65 LED Washer Light Wall Wsher Led Light 8

LED Wall Washer Lighting 36W IP65 LED Washer Light Wall Wsher Led Light 9LED Wall Washer Lighting 36W IP65 LED Washer Light Wall Wsher Led Light 10LED Wall Washer Lighting 36W IP65 LED Washer Light Wall Wsher Led Light 11LED Wall Washer Lighting 36W IP65 LED Washer Light Wall Wsher Led Light 12LED Wall Washer Lighting 36W IP65 LED Washer Light Wall Wsher Led Light 13LED Wall Washer Lighting 36W IP65 LED Washer Light Wall Wsher Led Light 14
