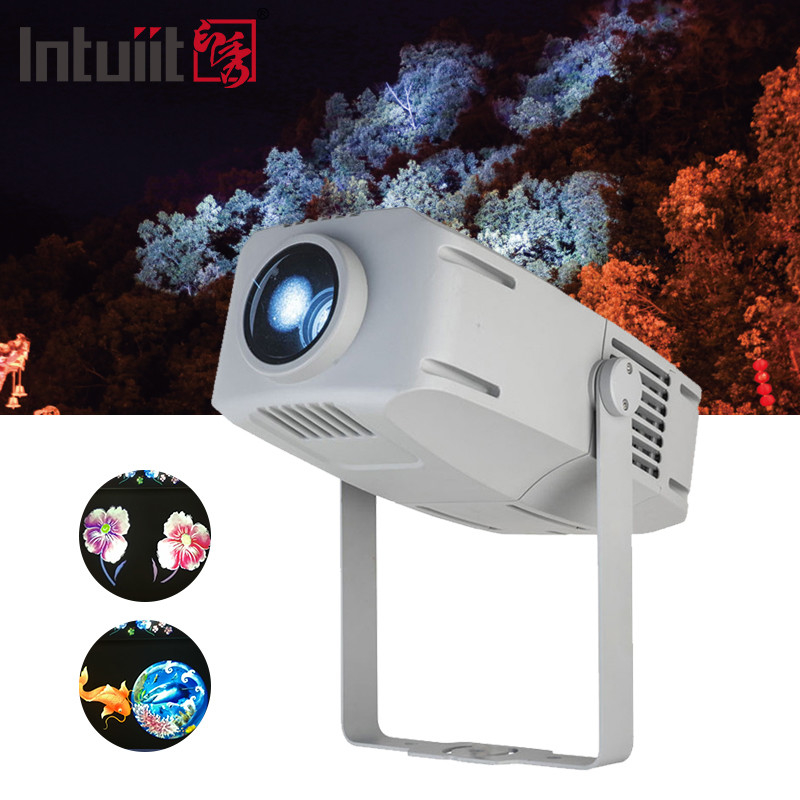

Gobo Zoom LED Projector Lights
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE |
| Model Number: | SW-201P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Packaging Details: | Carton |
| Delivery Time: | 15-35days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000pcs per month |
|
Detail Information |
|||
| Type: | LED Logo Light | Light Source: | 200W Led |
|---|---|---|---|
| Lamp Power: | 220W | Input Voltage: | AC100-240V |
| IP Rated: | IP65 | Warranty: | 2 Years |
| High Light: | 200w led gobo projector,ip65 logo light projector |
||
Product Description
led gobo projector 200 watt zoom 10-30degree can customized logo gobo projector light IP65
1. Product Description
SW-201P is a popular IP65 200watt led gobo light under independent research and development, with compact structure and attractive appearance. With pure white color temperature, it is equipped with intelligent zoom electronic system; 10-30 degree or 20-60 degree can be linearly adjusted. Focusing smoothly, and precisely in control. Built-in rotatable Gobo wheel, prism and other functions, SW-201P can achieve a wealth of dynamic pattern simulation effect. Equipped with an excellent optical system, the light spot is uniform with clear-cut margin, and the pattern image can be customized. The product is IP65 waterproof rating, which is widely used in theme parks, playgrounds, Commercial complex, commercial plazas, architectural buildings, outdoor performances and other large and medium-sized venues.
2. Feature
● 200 watt led lighting source with low noise fan coolling.
● 3 ways Prism
● Atomization effect
● Quickly change, bi directional, indexable,rotating gobos
● with gobo shake funtion,effect more lively
● Seetronic power & DMX socket or 4 cables come out optional
● Rich color selection: 7+1,color can be customized
● Lightweight Magnesium Alloy
● DMX512 and RDM remote device management protocols
● Black,grey or white finish
● Angle adjustable mounting bracket
| Product Name | 200W Outdoor Gobo projector zoom | ||
| Item Number | SW-201P | ||
| Product Measurement | 560*318*200MM | ||
| Inner Packing Size | 685*440*315MM | ||
| Packing Quantity | 1pc/Carton | ||
| N.W./G.W. | 14.6KG/16.5KG | ||
| Housing Material/Color | Die casting Magnesium Alloy/Matt Black | ||
| Device Linking | DMX in/out(3 pin),power in/out | ||
| Rotating gobo | 7+1 | CCT | 7500K |
| Power Factor | 0.939 | Focus, prism | |
| Input Current | 2.315A @100V | 1.06A @240V | |
| Power line System | European/American | 3PCS @100V | 6 PCS @240V |
| Beam Angle(Optional) | 10°-30°,20°-60° | ||
| Data Protocol | DMX512. RDM | ||
Size:
Opic:
Installation:
2. Production line &Effect reference
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a nationak high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
